1. On the displayed screen after UPS5000 startup, tap System Info.
2. Choose System Info > Settings, enter the user name admin and password
000001, and tap .
3. Tap Communication and set RS485 baud rate to 9600, and RS485 address
to 1 on the displayed communication settings screen.

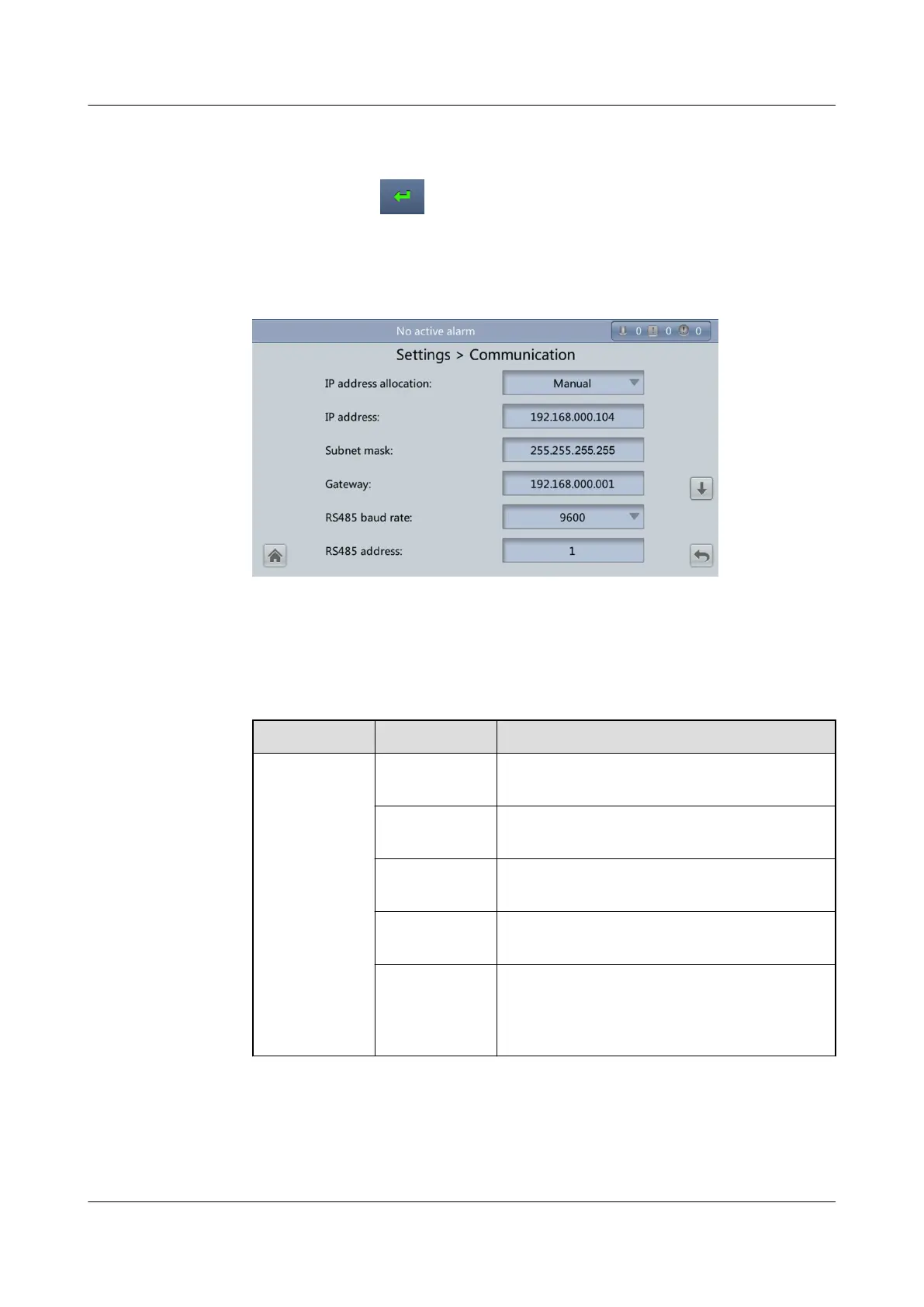

Figure 8-9 UPS5000 communication settings
Step 2 Add a UPS5000.
1. Log in to the ECC800-Pro WebUI as an administrator.
2. Add a UPS5000.
Table 8-5 Adding a UPS5000.
Path
Parameter Setting
Choose
System
Settings >
Device
Management
and click Add
Device. The
parameters
for adding
devices are
displayed.
Device
attribute
Select UPS from the drop-down list box.
Device Type Select UPS5000 from the drop-down list
box.
Connect To Select ETH Converter n from the drop-
down list box.
Communicati
ons Port
Select COM1/COM2 from the drop-down
list box.
Device
Address
In this example, Device Address is set to 1.
During actual conguration, set the device
address for the UPS5000-E based on the
actual situation.
3. Click Test Connect to check whether the UPS5000-E connects to the ECC800-
Pro properly.
– If the connection succeeds, click
Conrm. The connected devices are
displayed in the Number of connected devices list.
