1. After the PMAC615 is started, press on the displayed screen and the
conguration screen is displayed. Press until the ID prompt is displayed,
indicating the communications address setting screen.
2. Press and a blinking cursor is displayed. Press to modify the
communications address based on site requirements. Then press
to
conrm the address setting.

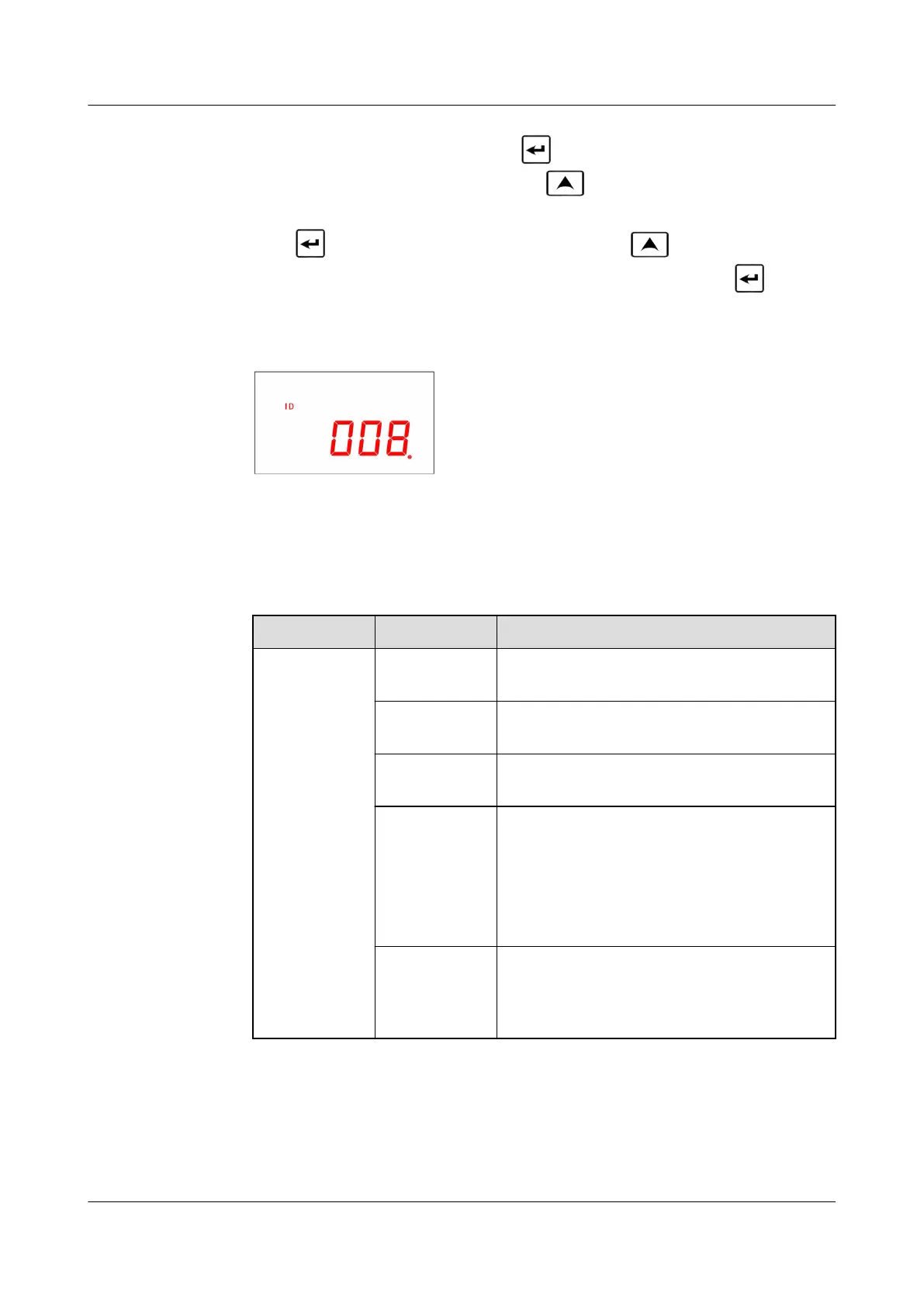

Figure 8-16 PMAC615 communications address
Step 2 Add a PMAC615.
1. Log in to the ECC800-Pro WebUI as an administrator.
2. Add a PMAC615.
Table 8-17 Adding a PMAC615
Path
Parameter Setting
Choose
System
Settings >
Device
Management
and click Add
Device. The
parameters
for adding
devices are
displayed.
Device
attribute
Select Electricity Meter from the drop-
down list box.
Device Type Select PMAC615 from the drop-down list
box.
Connect To Select ECC800 from the drop-down list
box.
Communicati
ons Port
Select COM3 from the drop-down list box.
NOTE
The setting example indicates that the
PMAC615 is connected to the COM3 port on
the ECC800-Pro. If the PMAC615 is connected to
another port, enter the number of the
connected port.
Device
Address
In this example, Device Address is set to 8.
During actual conguration, set the device
address for the PMAC615 based on the
actual situation.
3. Click Test Connect to check whether the PMAC615 connects to the ECC800-
Pro properly.
– If the PMAC615 connects to the ECC800-Pro successfully, click Conrm.
The connected devices are displayed in the Number of connected
devices list.
