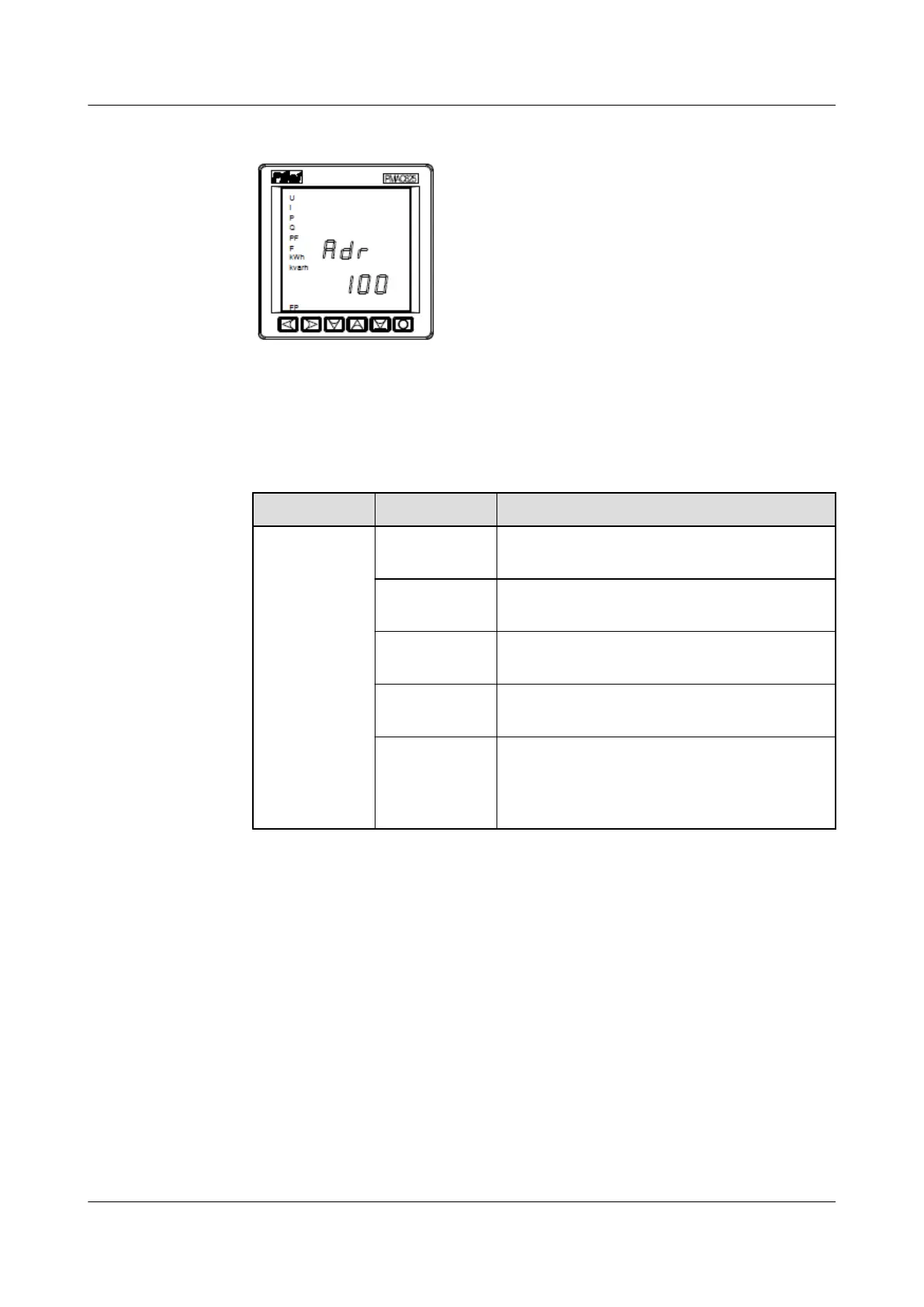

Figure 8-18 Communications address of the PMAC625
Step 2 Add a PMAC625.
1. Log in to the ECC800-Pro WebUI as an administrator.
2. Add a PMAC625.
Table 8-18 Adding a PMAC625
Path Parameter Setting
Choose
System
Settings >
Device
Management
and click Add
Device. The
parameters
for adding
devices are
displayed.
Device
attribute
Select Electricity Meter from the drop-
down list box.
Device Type Select PMAC625 from the drop-down list
box.
Connect To Select ETH Converter n from the drop-
down list box.
Communicati
ons Port
Select COM1/COM2 from the drop-down
list box.
Device
Address
In this example, Device Address is set to
100. During actual conguration, set the
device address for the PMAC625 based on
the actual situation.
3. Click Test Connect to check whether the PMAC625 connects to the ECC800-
Pro properly.
– If the PMAC625 connects to the ECC800-Pro successfully, click
Conrm.
The connected devices are displayed in the Number of connected
devices list.
– If the connection fails, check whether the PMAC625 is properly connected
to the ECC800-Pro, whether the PMAC625 and ECC800-Pro are running
properly, and whether the parameter settings are consistent with the
PMAC625 parameters.
4. Choose Monitoring > System > ETH Converter Group > ETH Converter n >
Running Parameters and set Device name to ETH Converter n_Device
name.
----End
