Table 3-54 eLight functions
Light of the
eLight Strip
Light
eLight Strip Light
Lighting
Specications
Cause
Red light Steady on The smart module raises a critical
alarm.
Blinking for 3
seconds
Access authorization fails and the
aisle door cannot be opened.
Blinking The eLight fails to communicate with
the ECC800-Pro.
Orange light Steady on The smart module raises a major
alarm.
Yellow light Steady on The smart module raises a minor
alarm.
Gray light Steady on The smart module raises a warning.
Green light Blinking for 3
seconds
Access authorization succeeds and
the door can be opened.
Blue light Steady on Associated alarm severity is set to
None.
Other color light Steady on or
blinking
The device is abnormal or cables are
incorrectly connected to terminals R,
G, and B.

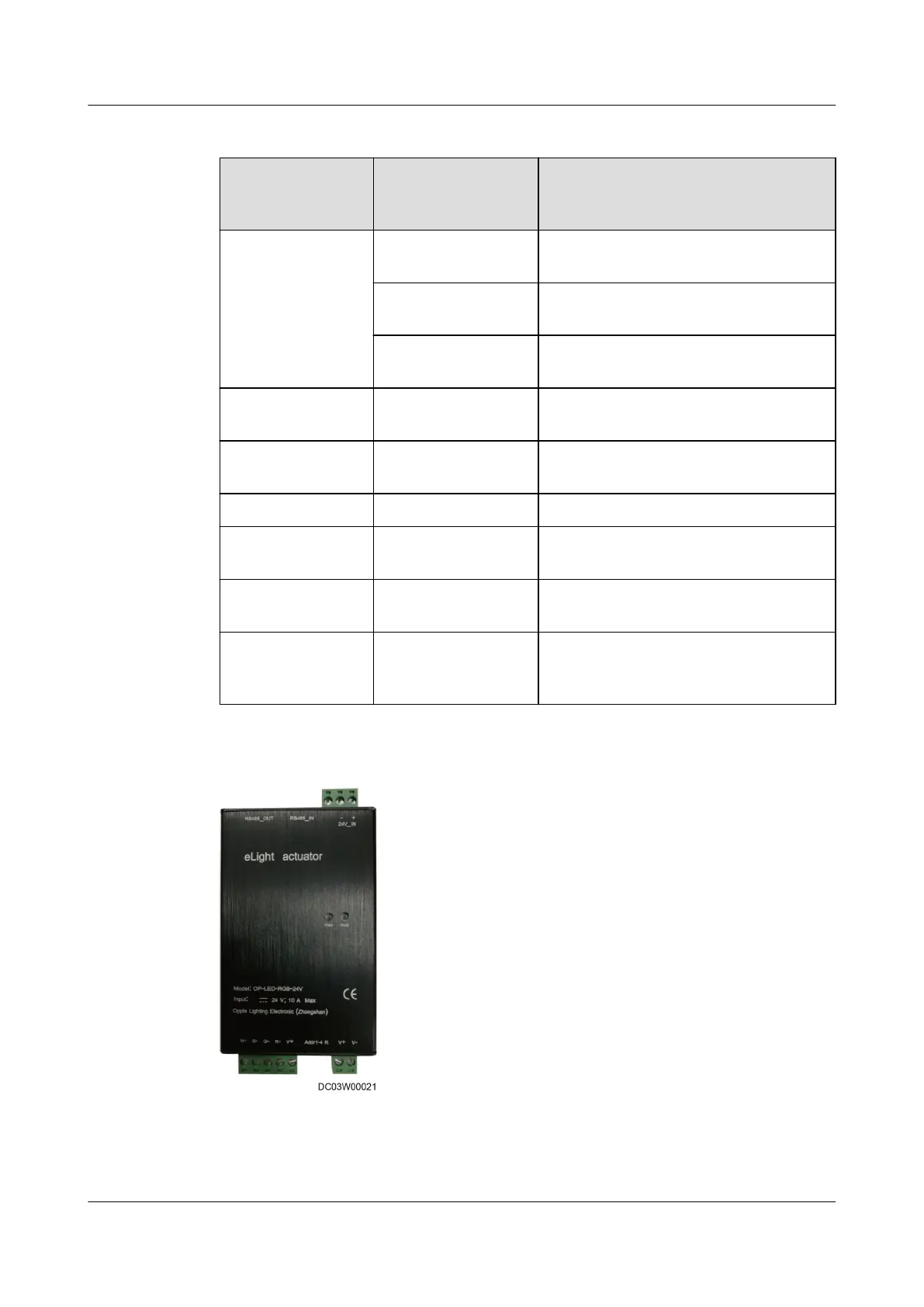

Figure 3-29 eLight actuator
