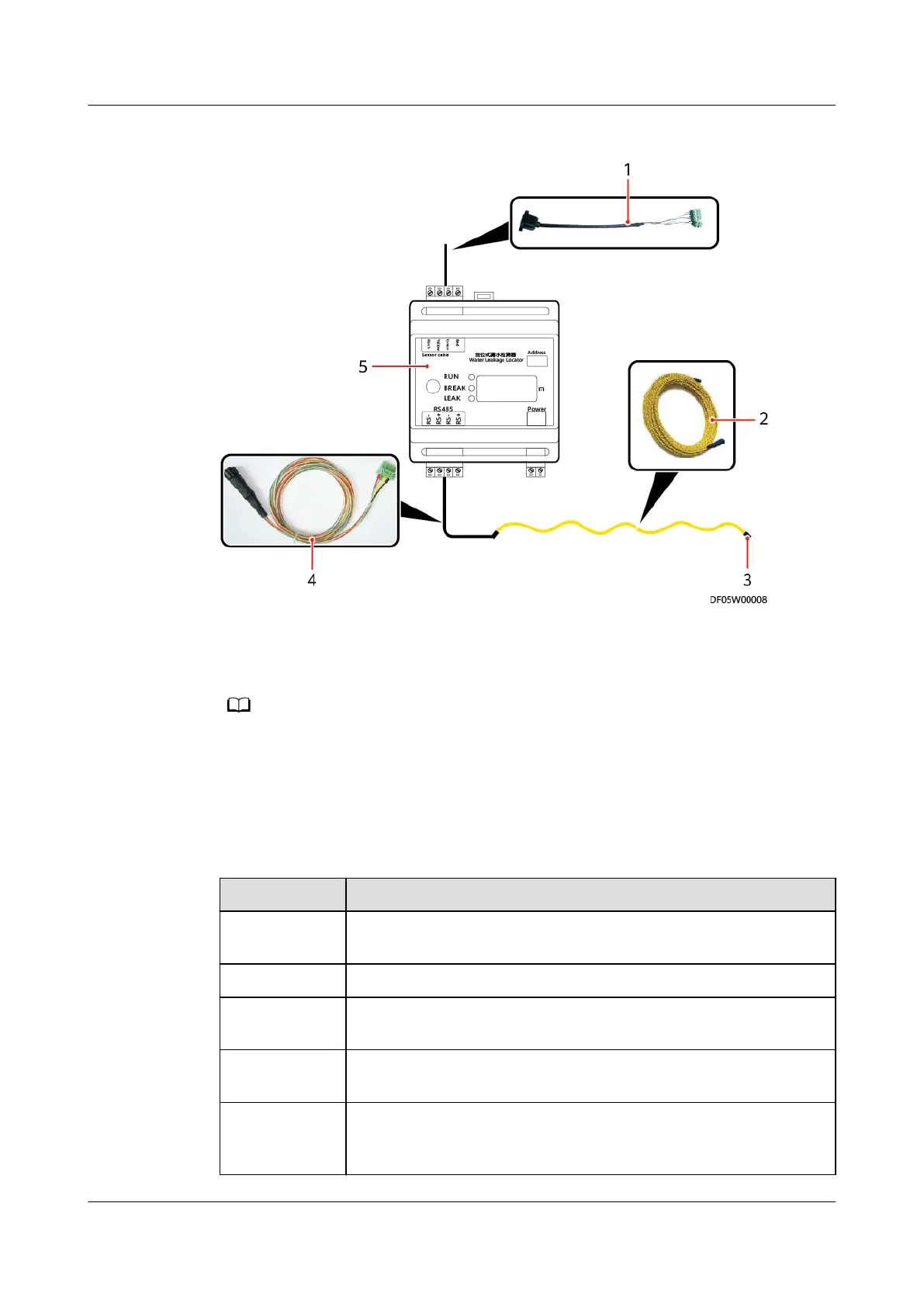

Figure 3-30 WLDS600 water sensor

(1) Tie line (2) Water leakage location cable (3) End cap A (B)

(4) Extension line (5) Water leakage locator

NO TE

● Two types (A and B) of end caps are delivered. The site may support only one type.

● Connect either end cap to the cable. After the cable is connected and the water leakage

locator is powered on and initialized, if the buzzer keeps buzzing and the alarm location

is a stable value that is greater than the total length of the water leakage location

cable, replace the end cap with the other end cap.

Table 3-56 WLDS600 water sensor

specications

Item

Specication

Dimensions (L

x W x H)

70 mm x 58 mm x 86 mm±1

Power supply 9–16 V DC or 9–16 V AC

Impulse

current

≤ 450 mA

Power

dissipation

< 2 W

Power,

communicatio

n connector

RJ45 female connector 1 piece

ECC800 Data Center Controller

User Manual (for ECC800-Pro) 3 Device Description
