HYBREX G1E - Select COM port and Baud rate; Load upgrade software

To Next Page

To Previous Page

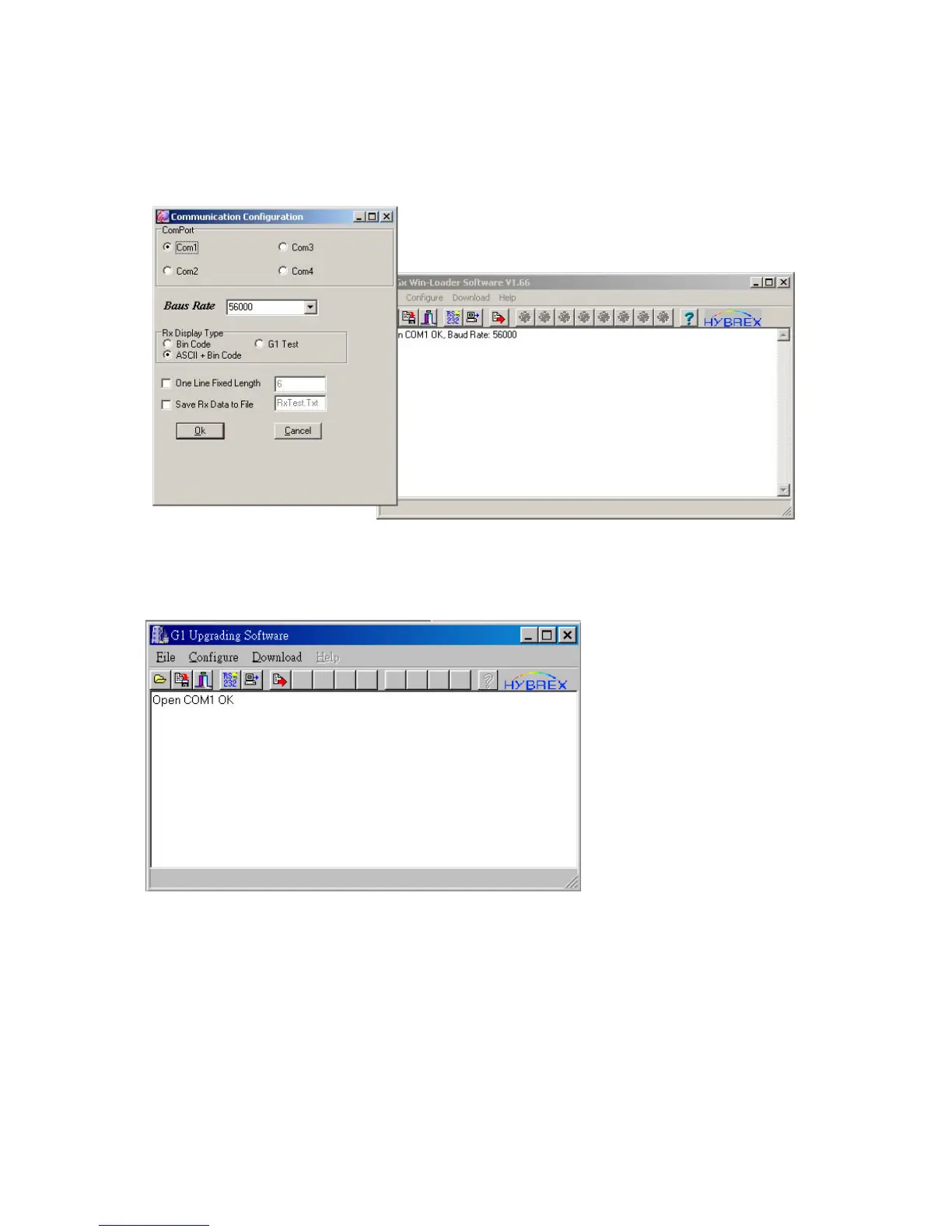

For G1E Select 115000 baud rate and select the COM port.

Press [OK].

the display will show:

Select [File]->[Open] to load the upgrade software version from disk.
