44 Issue 3.3.2 / April, 2011

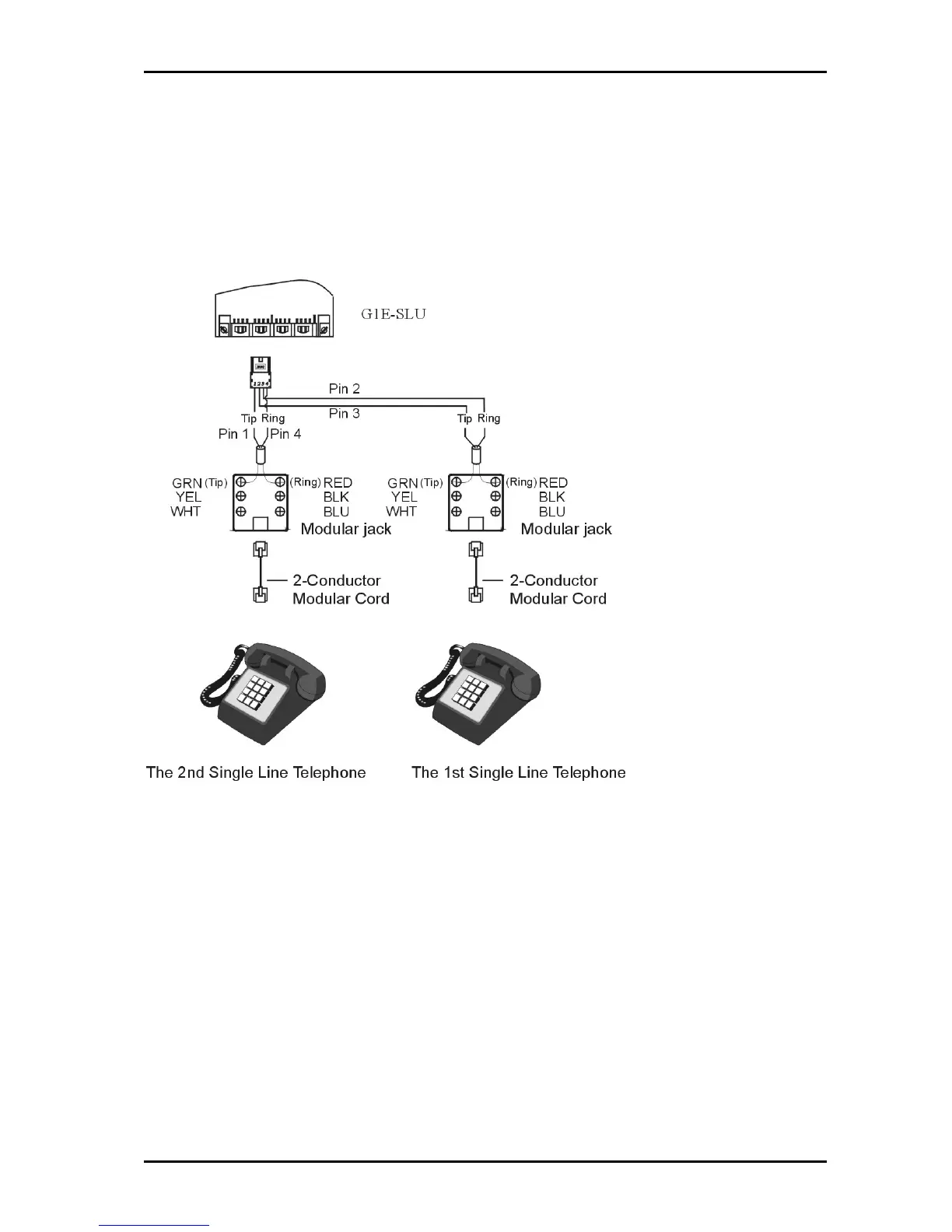

Single Line Telephone (connected to G1E-SLU)
z Station cables can enter from the bottom of the KSU. Remove the cover and route the station cable
through the hole. Terminate the station wires with the connectors that are provided. The stations
will connect to the KSU as shown on the main panel on connector locations 21-28 or 31 – 38
(Needs G1E-SLU/s installed) or 41-44.
z Connect Tip terminal with GRN terminal (screws) of the modular jack, Ring with RED.
z There is no polarity requirement on Tip and Ring.
z 2-conductor wiring is required for Single Line Telephones.
