136 Issue 3.3.2 / April, 2011
I
Program 39-IP : Sensor Assignments
39-STN-IP Sensor
FN S
Stn 00 – 000 – 0000 Is for sensor on MSC card
39-STN-IP Sensor
FN S
St-ACP is for sensor on ACP
Display Programming Data
ST IP Data Description
----------- -------- -------- ------------------------------------------------------
00(00) 01 00-18 SENSOR #1 on G2-MSU Card
02 0-2 SENSOR #1 Contact Type
Description:
The G1E-MSU and each ACP provide1 Sensor.
FN= Function No. S=Sensor Type
Each Sensor can be assigned one of the following 18 functions in items 39-ST in the GDS-600.
Set data Function
00 No Operation
01 Fire Alarm
02 Break Alarm
03 Door Phone 1
04 Reserved for future use
05 Security feature
18 Reserved for future use
The SENSOR type may be normally open or normally closed.
0 = Disable Sensor function 1 = Normally Open for night 2 = Normally Closed for night
3 = Normally Open day 4 = Normally Closed Day 5 = Normally open Day/Night
6 = Normally Closed Day/night
The applications are as the following:
1 = Fire Alarm: Sensor detects fire, all idle extensions will be rung and all busy extensions will
Hear the alarm tone. The fire alarm will continue for 10 minutes.
Pressing [7][7][7] from the console will stop the fire alarm.
The LCD display will show FIRE ALARM !!!! when the alarm is activated.
2 = Break Alarm
.The Sensor detects the signal appears, all idle extensions will be rung.
.The Sensor detects the signal disappears, all extensions will stop ringing.
The LCD display will show BREAK ALARM !!!! when the alarm is activated.
Individual stations can be programmed to not receive the Break Alarm in Mode 45-st-06.

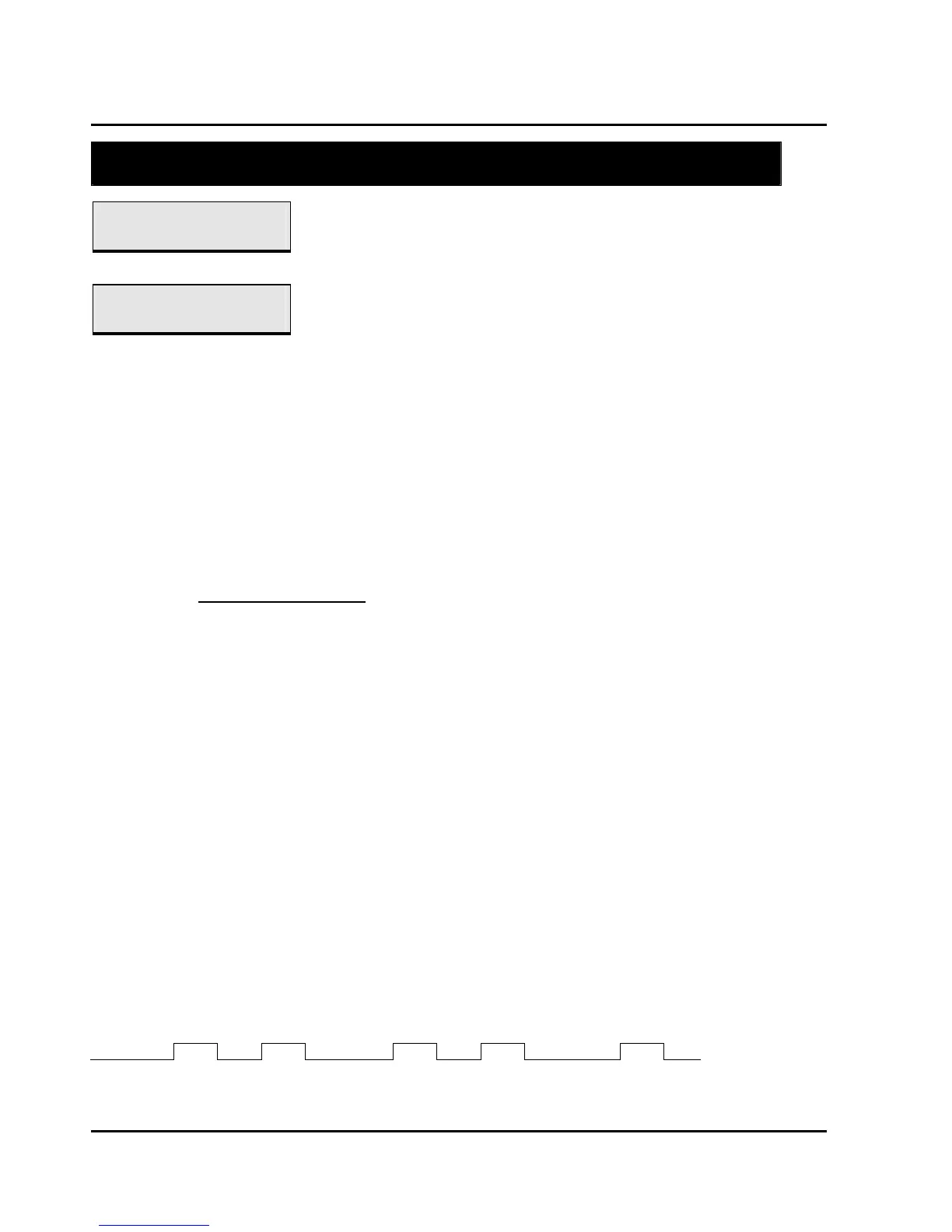

The ring cadence for the fire alarm will be as follows
A B c b A b C b a b
a = 1.25 seconds On b = 0.25 seconds off c = 0.25 seconds on.
