HYBREX G1E - G1 E-Viu 3 Port Voip Card (Obsolete)

To Next Page

To Previous Page

24 Issue 3.3.2 / April, 2011

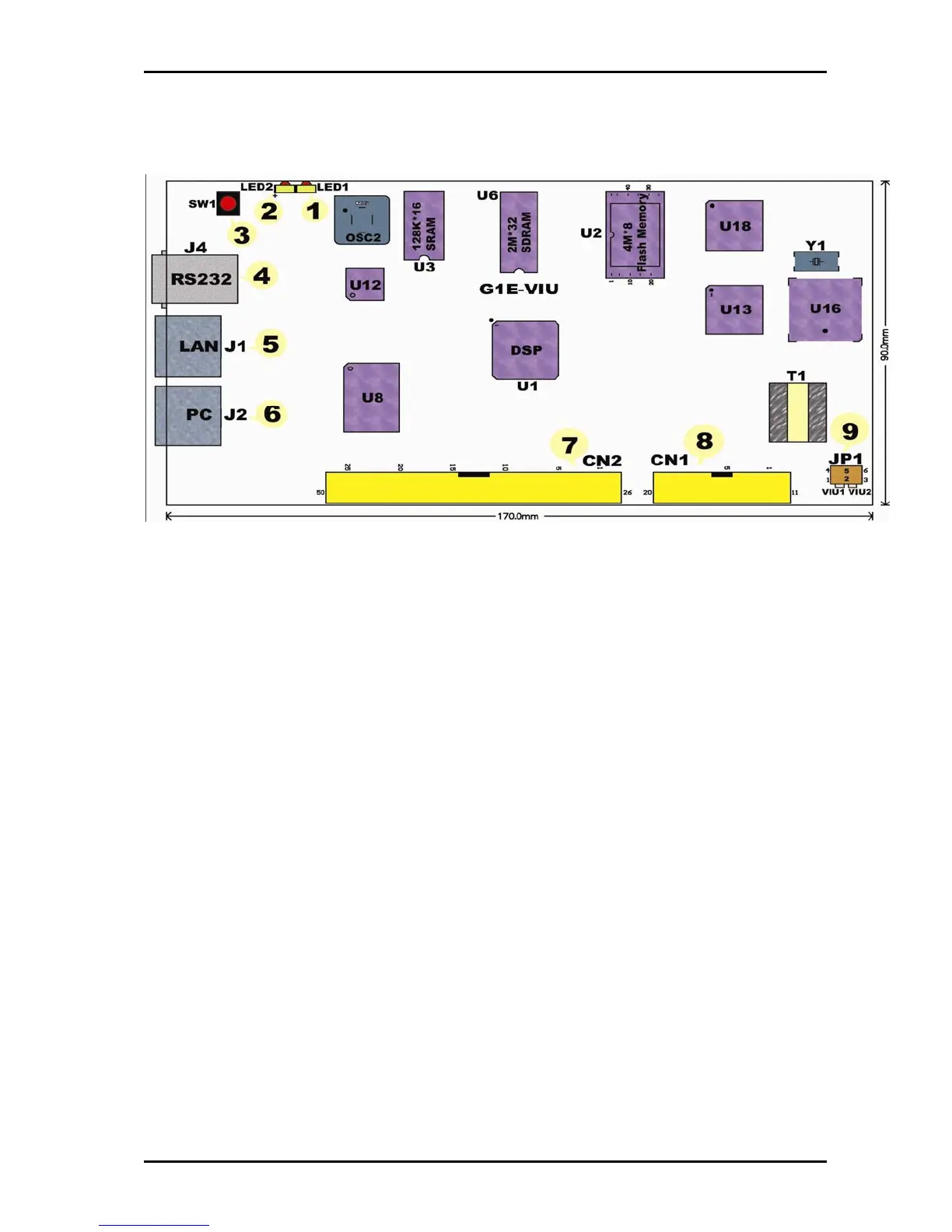

G1E-VIU 3 Port VOIP Card (Obsolete)

1.LED1 : Green steady on means VIU has registered to SIP Proxy Server successfully.

Green slow flash means it has not registered to SIP Proxy.

2.LED2 : Green steady on means system power is applied.

3.SW1 : Reset Switch

4. J4 : RS232 port.

5. J1 : LAN Port

6. J2 : PC Port

7. CN2 : To G1E+ MBU CN7

8. CN1 : To G1E+ MBU CN2

9.JP1 :VIU1/VIU2 switch to select VIU1/CO1~CO3 or VIU2/CO5~CO7
