HYBREX G1E - Install G1 E-Stu 8 Port Digital Station Card

30 Issue 3.3.2 / April, 2011

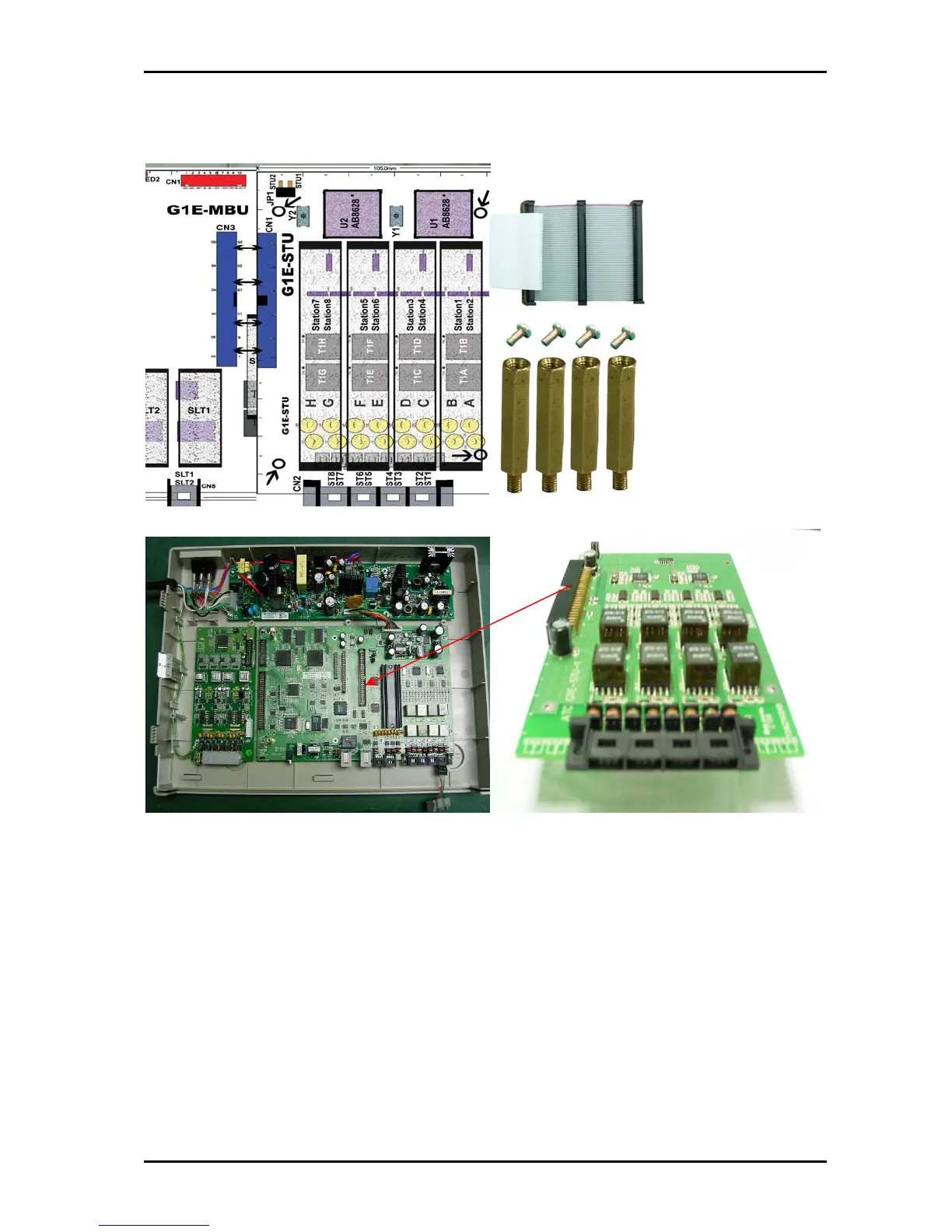

Install G1E-STU 8 Port Digital Station Card
Installing the first expansion card
Power off the system
Set the Jumper on the card to STU1
Install 4 brass spacers to the MBU by removing screws from the MBU and replacing with spacers
Plug the cable into the MBU and then fasten STU to spacers using the 4 screws removed from the MBU
Installing the second Expansion card
Power off the system
Set the Jumper on the card to STU2
Install 4 brass spacers to the first STU by removing screws from the STU and replacing with spacers
Plug the cable from the MBU to the first STU to the second STU and then fasten STU to spacers using
the 4 screws removed from the first STU.
Make certain that the cable is pushed home firmly into the connector
