18 Issue 3.3.2 / April, 2011

Card Introduction

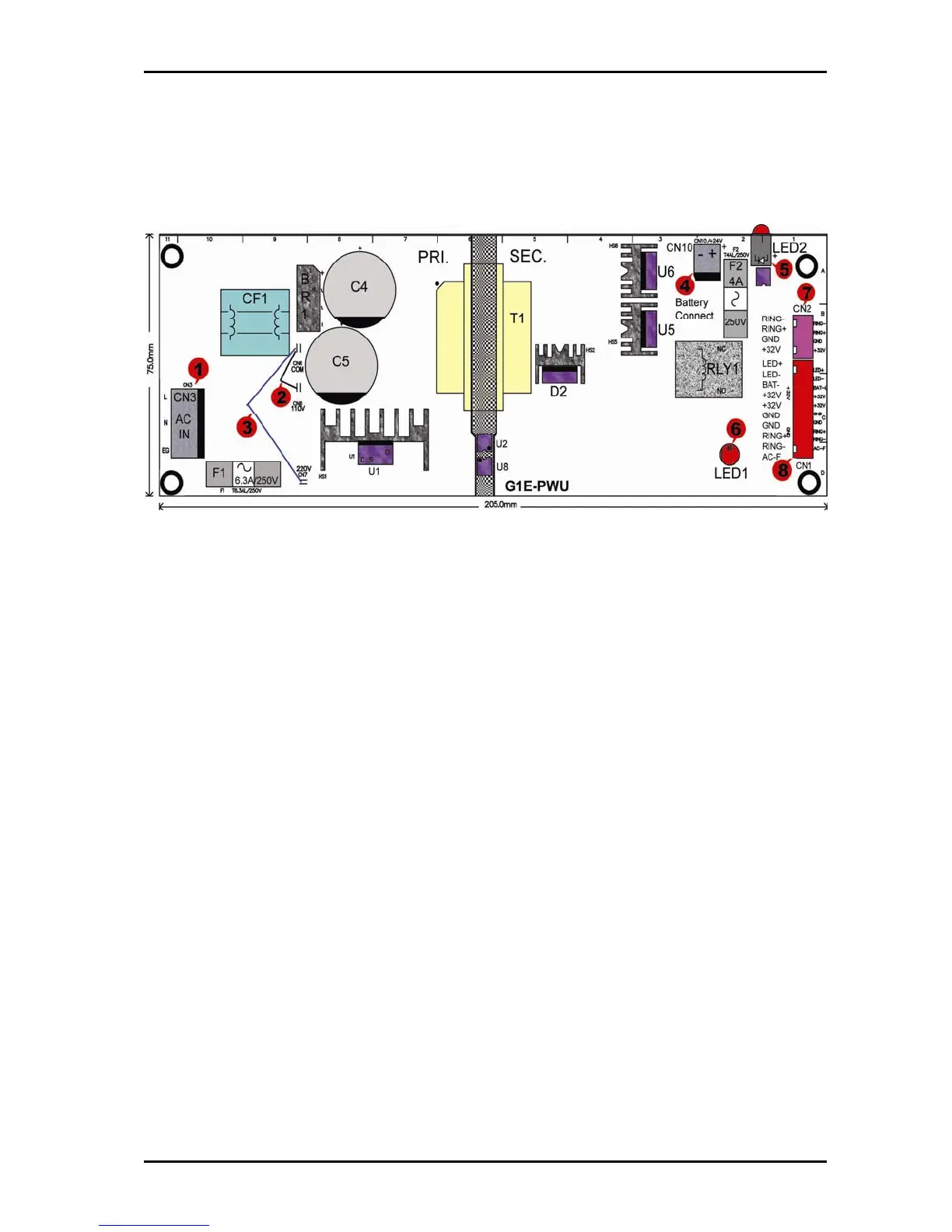

G1E-PWU-Power Supply Interface Card

1.CN3 AC IN

2.CN6+CN8 :AC110V :90~130VAC

3.CN6+CN7 :AC220 :180~260VAC

4.CN10 :Battery Connection +24V to +27V DC

5.LED2 : LED2

6.LED1 :G1E-PWU DC +32V indication

7.CN2 : Cable connection from G1E-PWU to G1-RGU CN1

8.CN1 : Cable connection from G1E-PWU to G1E-MBU
