97

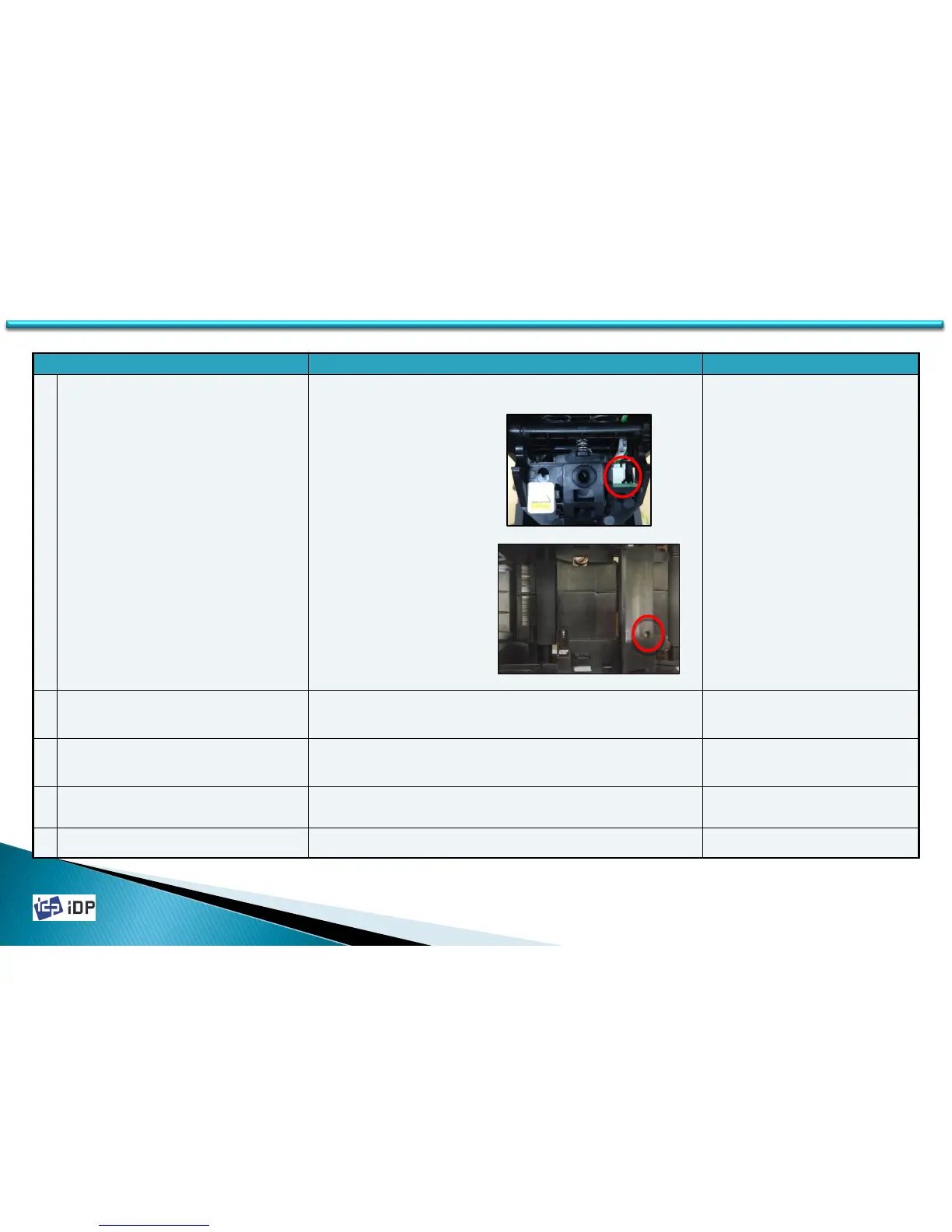

Symptom Countermeasures Related Parts
6 Color In Sensor or Color Out Sensor is bad
When Color In/Out Sensor have some problem, replace the sensors.
Change the Color In Sensor
- Manual 3.2.4
Change the Color Out Sensor
630026(SENSOR COLOR OUT2
BD,SMART,0.3)
630024(SENSOR COLOR IN
BD,SMART,0.4)
7 Encoder sensor or connection cable is bad
Bad connection status of sensor cable may make this error (See 2.1)
Refer to the manual 3.4.3 and replace the cable or sensor.
630033(SENSOR ENCODER2
BD,SMART,0.1)
611076(WIRE,I/O_30 LEFT,20P,230mm)
8 Ribbon RF Board or connection cable is bad
Refer to the manual 3.3.2 and check Ribbon RF Board and connection
state.
630020(RIBBON RF,SMART,0.2)
9 Ribbon RF Board’s connection cable is bad Refer to the manual 3.3.2 and change the connection cable.
611079(FFC CABLE,240mm,16P,
0.5mm,2896 C-type)
10 Main board is bad Refer to 3.3.1 and replace the main board. 630083 (MAIN BD,SMART,0.57)
5.1 General Operation
