6-9-3 DECODING DIGITAL SIGNALING FORMATS
With Option 11 installed, the RF Receive Operation Screen and the Duplex Receive
Operation Screen are configurable to decode POCSAG and Inverted POCSAG signals.
A specific decode screen is provided for each Digital Signaling format type
8717038
POCSAG DECODE RATE 512
CAPCODE: 5130 TYPE: ALPHANUMERIC
MESSAGE: abcdefghijklmnopqrstuvwxyz
ABCDEFGHIJKLMNOPQRSTUVWXYZMESSAGE:
ALPHANUMERICTYPE:5130CAPCODE:
CAPCODE: 5130 TYPE: ALPHANUMERIC
MESSAGE: 0123456789
MESSAGE:
ALPHANUMERICTYPE:5130CAPCODE:
CAPCODE: 5130 TYPE: TONE 4 BEEPS
MESSAGE:
!"#$%’()*+,-./:;<=>?’
4
FUNC BITS: AUTO
1
2
3

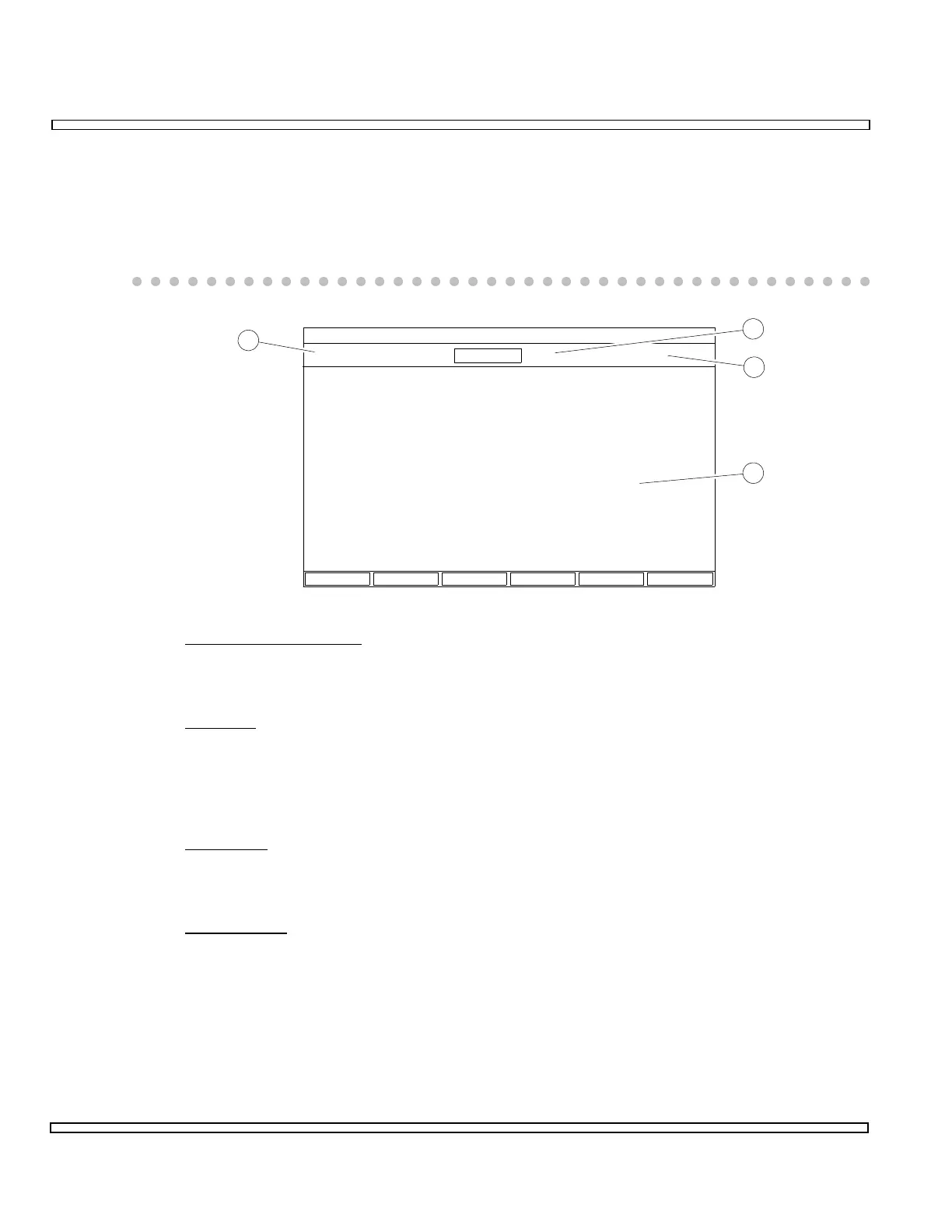

1. Decode Screen Label
Identifies whether Decode Screen format is POCSAG or POCSAG INV (Inverted
POCSAG).
2. Function
Allows user to set Message Type to ALPHANO (ALPHANUMERIC), NUMERIC or
AUTO. ALPHANO and NUMERIC settings force Decode Function to decode
message as specified type. AUTO setting allows Decode Function to determine
Message Type from received data.
3. Data Rate
Displays selected Data Rate for decoding messages. Selections include 512 and
1200 bps.
4. Data Screen
Displays up to five decoded messages. Information displayed includes Capcode,
Message Type and Message for each received transmission.
