6-12-5 RECEIVE TRUNKING DATA BLOCK
The Receive Trunking Data Block is used to display the Mobile Radio parameters that
are passed to the Repeater.
This information is for display only and cannot be edited.
29. In Use
Displays Repeater Number used by Mobile
Radio. Displays 31 at message end to
signify end of transmission.
30. Group
Displays ID Code for Mobile Radio.
31. Radio Status
Displays Mobile Radio Status. If
CONNECT-DSP is displayed, Radio is currently linked to COM-120C in Dispatch
Mode.
If CONNECT-RIC is displayed, Radio is currently linked to COM-120C in Radio
Interconnect Mode.
If RELEASE is displayed, indicates COM-120C has received disconnect code from
Mobile Radio.
If DISCONNECT is displayed, indicates Mobile Radio and Repeater are no longer
connected due to manual disconnect or COM-120C disconnect due to elapsed
time.
32. Free
Displays Free Field Data received from data. Displays 31 during normal
operation.
33. Home
Displays Home Repeater Number for Mobile Radio. Range is 1 to 31.
34. Area
Displays Proximity Switch setting. Displays 1 or 0.
00607238
Group
In UseArea
Home
Free
151
9
0
5

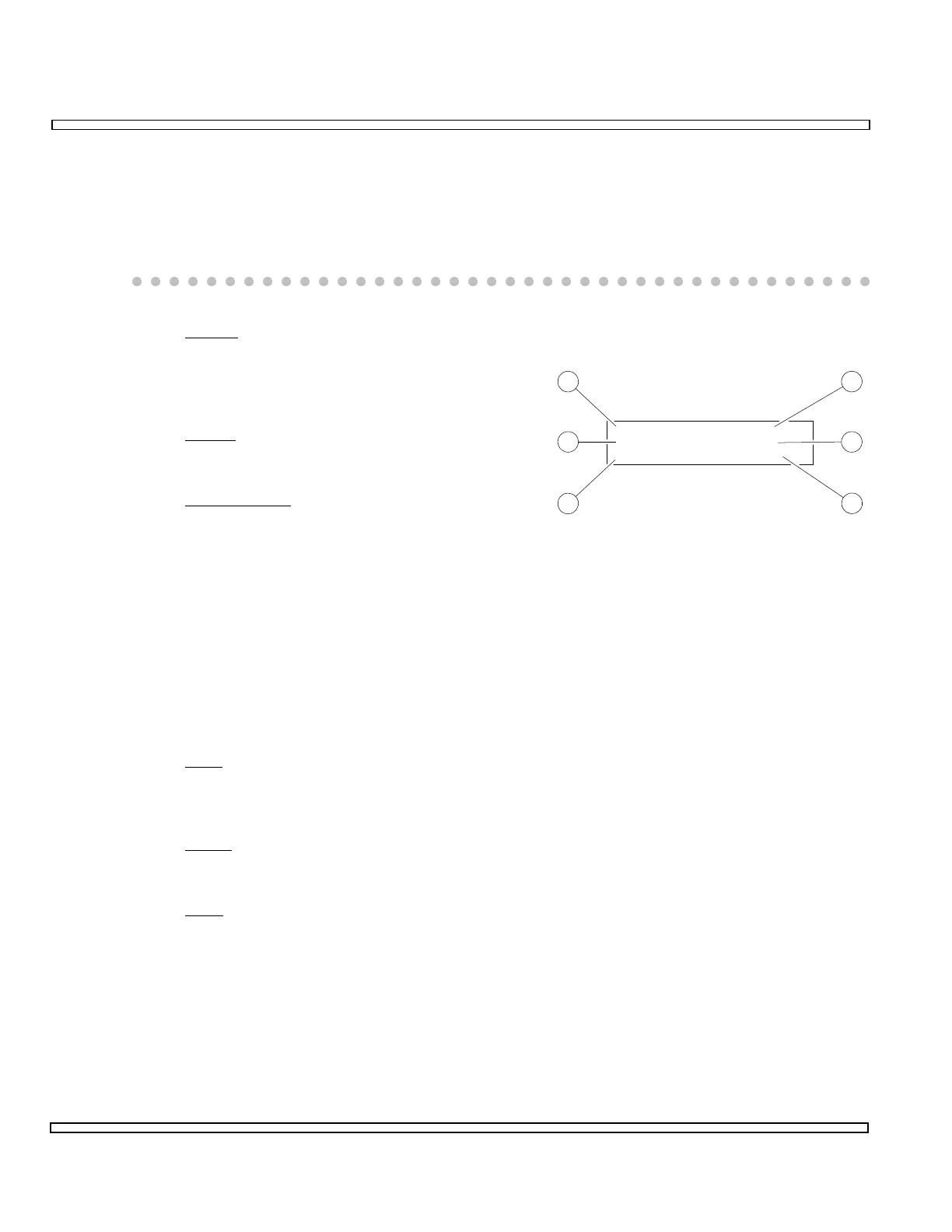

31 CONNECT-DSP
29
30
32
33
34
31
