6-97
SECTION 6
OPTIONS

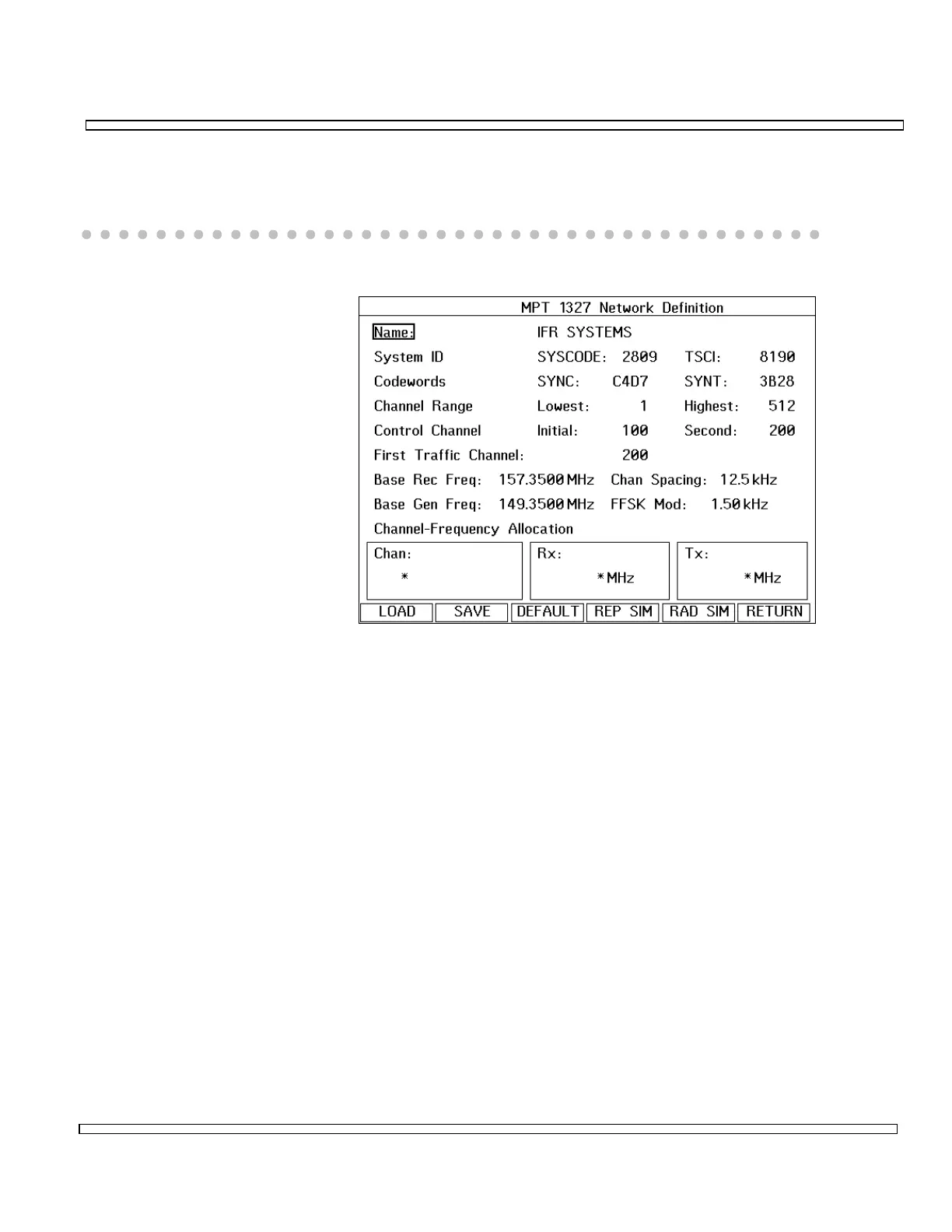

6-15-1 SETUP NETWORK DEFINITION
The SETUP screen allows the customization of network definitions.
NAME
This field allows a network
definition to be assigned a
descriptive label of up to
19 characters. This parameter
is optional and has no effect
on the system operation.
SYSTEM ID
The SYSCODE is used in the
generation of control channel
signaling (Repeater Simulator).
See notes on following pages
for a description of how to
calculate the SYSCODE.
The TSCI (Trunked System
Controller Ident) is used as the
COM-120C ident in message
transactions with a radio unit.
With some Radio Unit’s, SDM’s from TSCI have a system-dependent meaning,
sometimes making it necessary to change this value.
CODEWORDS
These parameters are the syncronization codewords for control and traffic channels,
used in the generation of control channel signaling and encode of transmitted
messages.
The default values for SYNC and SYNT (UK standard) are C4D7 and 3B28 respectively.
Do not change these settings for standard MPT 1327/1343 networks.
CHANNEL RANGE
The maximum permissible channel range is 1 to 1023. This range may be controlled
using the lowest and highest channel fields.
These values are also used in the automatic test mode for the low and high channel
handoff tests.
