IFR COM-120C User Manual

3-1
SECTION 3
COMPOSITE
00607167
2 3 4 5 6
7
8
9
10
11
12
13141516171819202125 24
22
23
1

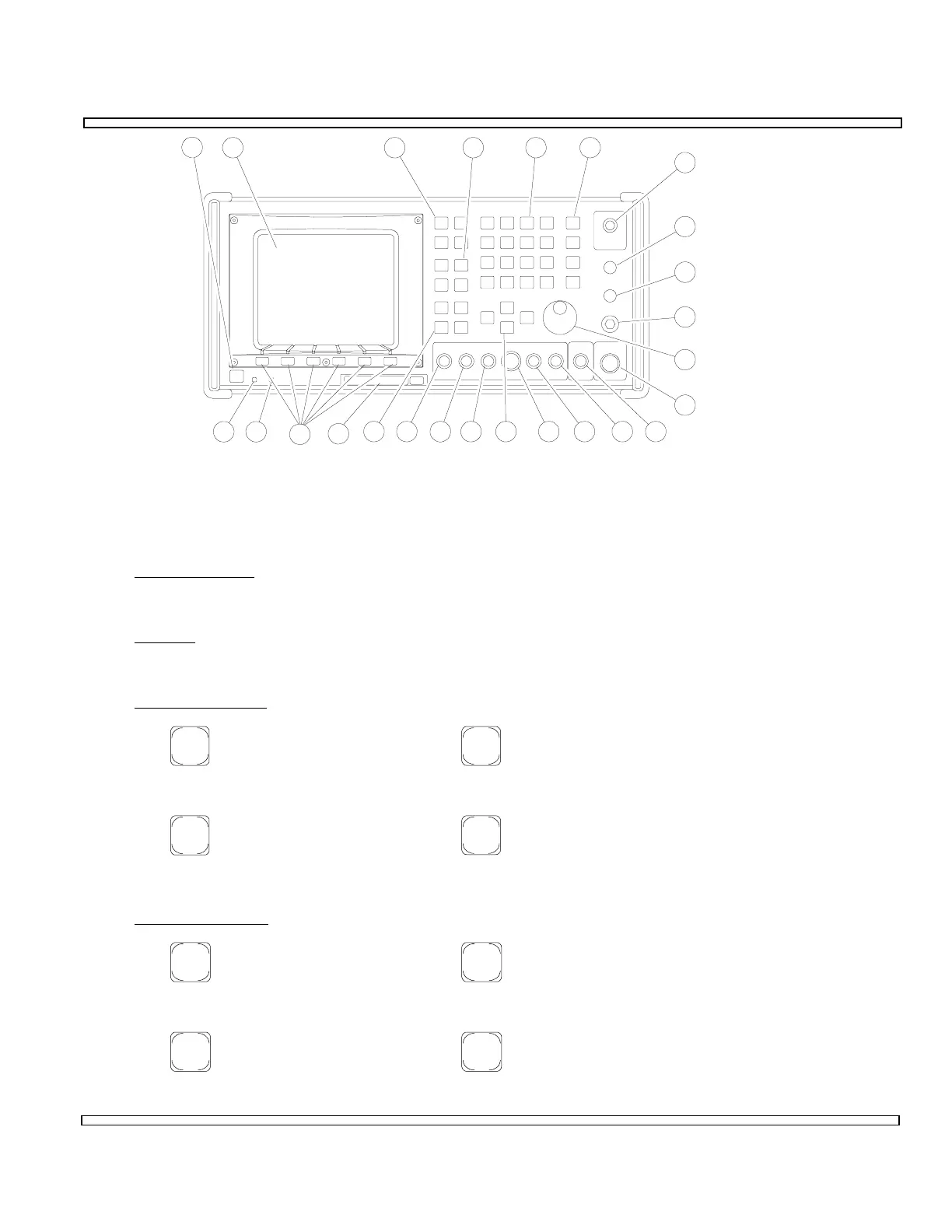

COM-120C Front Panel Controls
3-1 FRONT PANEL CONTROLS
1. Power ON Key
Selection toggles between Power APPLIED and Power ON states.
2. Display
Provides video information of current test operation.
3. Test Mode Keys
GEN
Accesses Generate Mode
Operation Screen.
DPLX
Accesses DUPLEX Mode Operation
Screen.
REC
Accesses Receive Mode Operation
Screen.
SPCL
Accesses Special Optional
Operation Modes.
4. Instrument Keys
SCOPE
Accesses Independent Oscilloscope
Operation Screen.
MTRS
Accesses Independent Meter
Functions.
ANLYZ
Accesses Independent Spectrum
Analyzer Operation Screen.
AUDIO
GEN
Accesses Independent Audio/Data
Generators Functions.

IFR COM-120C Specifications

General

Resolution	1 Hz
RF Input Impedance	50 Ω
Third Order Intercept (TOI)	+10 dBm
Display Type	LCD
Display Resolution	640 x 480 pixels
RF Input Protection	1 W
Power Requirements	100-240 VAC, 50-60 Hz
Input VSWR	1.5:1
Phase Noise	-80 dBc/Hz @ 10 kHz offset
