6-19
SECTION 6
OPTIONS

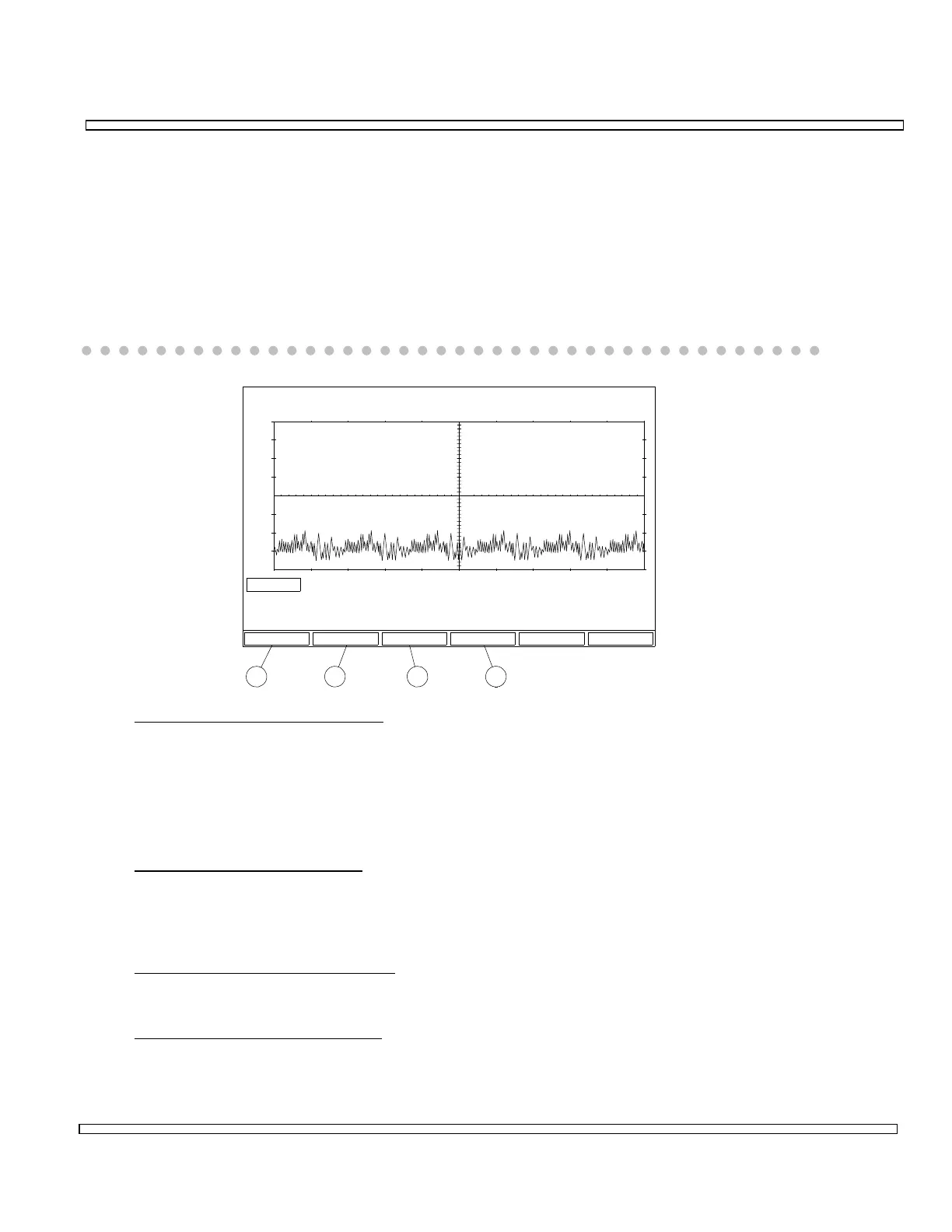

6-10 SPECTRUM ANALYZER TRACKING GENERATOR (OPTION 12)
Option 12 provides internal Tracking Generator for use with Spectrum Analyzer. A new
field is displayed for turning on the Tracking Generator. Field displays OFF or Tracking
Generator Level. When active, an RF signal is available at the AUX RF OUT Connector
at the specified level.
The Tracking Generator function is independent of the analyzer center frequency and is
programmable to sweep at a frequency different from the analyzer center frequency.
0060711
-30
-40
-50
-60
-70
-80
-90
-100
-110
dBm 1 MHz 105.0000 MHz
R
B
W
3
0
0
k
H
z
Mode
LIVE
Scale Marker
OFF10 dB
Ref
0 dB
Atten RF Input
ANT
-40.0
Track Gen
50 ms/div
ON/OFF DEFAULT
LOCK
CONFIG
1234
1. CONFIG Soft Function Key F4
Opens the Tracking Generator Configuration window. The two Tracking Generator
fields are Center Frequency and Offset. Changing one field changes the other
field appropriately.
There are separate Tracking Generator Configuration windows for Left Hand and
Right Hand Analyzer when the analyzer is in split screen mode.
2. LOCK Soft Function Key F3
Locks the Tracking Generator center frequency at a constant offset from the
analyzer center frequency. Changing the analyzer center frequency changes the
tracking generator center frequency by a like amount.
3. DEFAULT Soft Function Key F2
Normal operation mode.
4. ON/OFF Soft Function Key F1
Activates the Tracking Generator ON or OFF. Range is -130.0 to 13.0 dB.
