Page 4
BATTERY FUSE REPLACEMENT
The following procedure should be followed when replacing the battery fuse.
ο Set COM-120C Main Power Switch to OFF.
ο Remove all power sources from COM-120C.
ο Loosen 4 screws on Battery Access Panel.
ο Remove Battery Access Panel.
ο Disconnect Positive (+) and Negative (-) Terminals from battery.
ο Remove Battery from cavity.
ο Pull Battery cable out of COM-120C until Battery Fuseholder is exposed.
ο Unscrew Battery Cable Fuseholder cap and remove fuse.
ο Replace fuse with 10 A, 32 V, Type F, AGC fuse.
ο Feed Battery Cable into Chassis.
ο Install Battery in cavity.
ο Connect Positive (+) and Negative (-) Terminals to Battery. Install Battery Access
Panel.
8707005

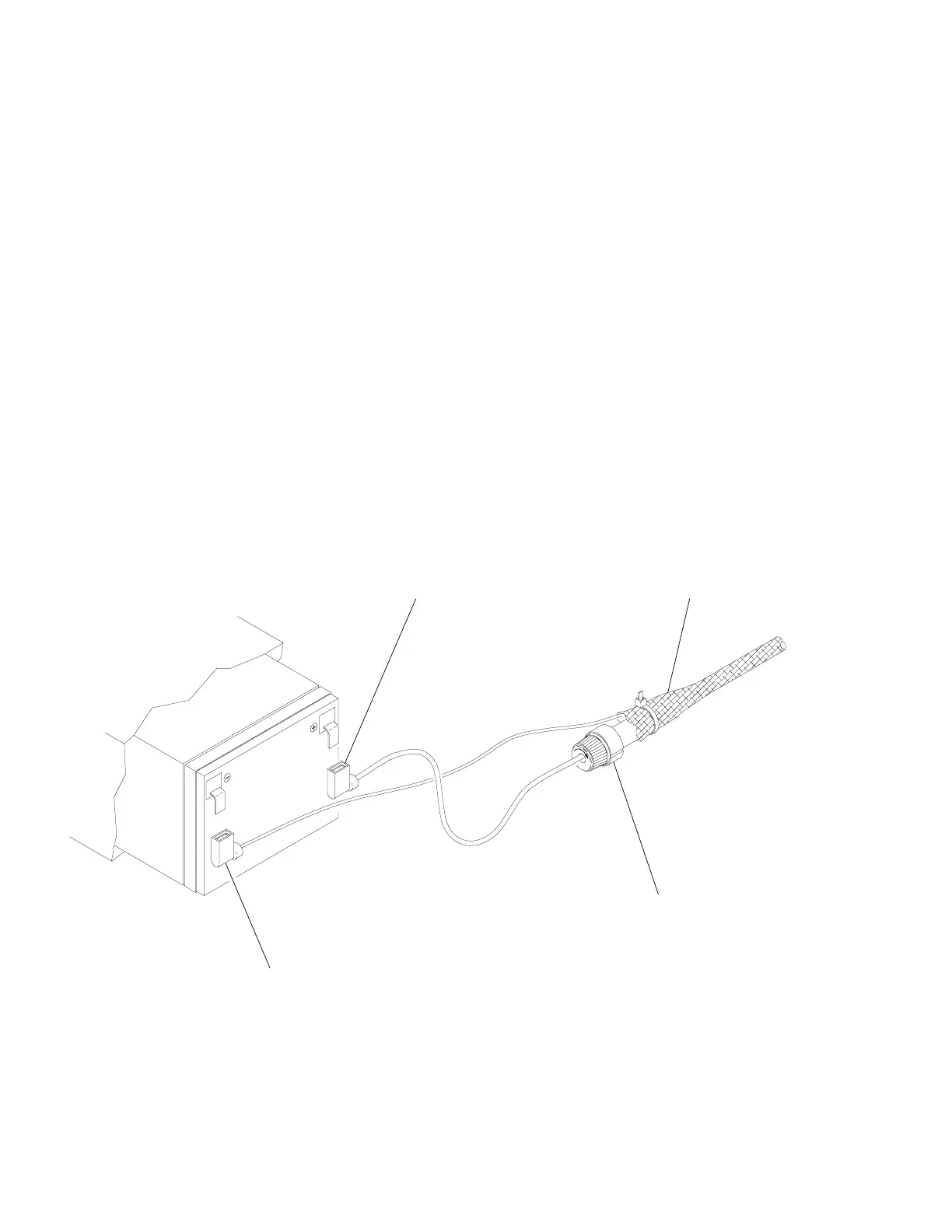

POSITIVE (+) TERMINAL
BATTERY CABLE
BATTERY CABLE FUSE HOLDER
NEGATIVE (-) TERMINAL
COM-120C Battery and Battery Cable
