4-1-2 SINAD METER OPERATION
The SINAD Meter for the RF Generate Operation Screen measures SINAD for an audio
signal passed through the AUDIO/DATA IN Connector. Filtering for the signal passed
to the SINAD Meter is provided by the Audio/Data Filters.
Configure and operate the SINAD Meter as follows:

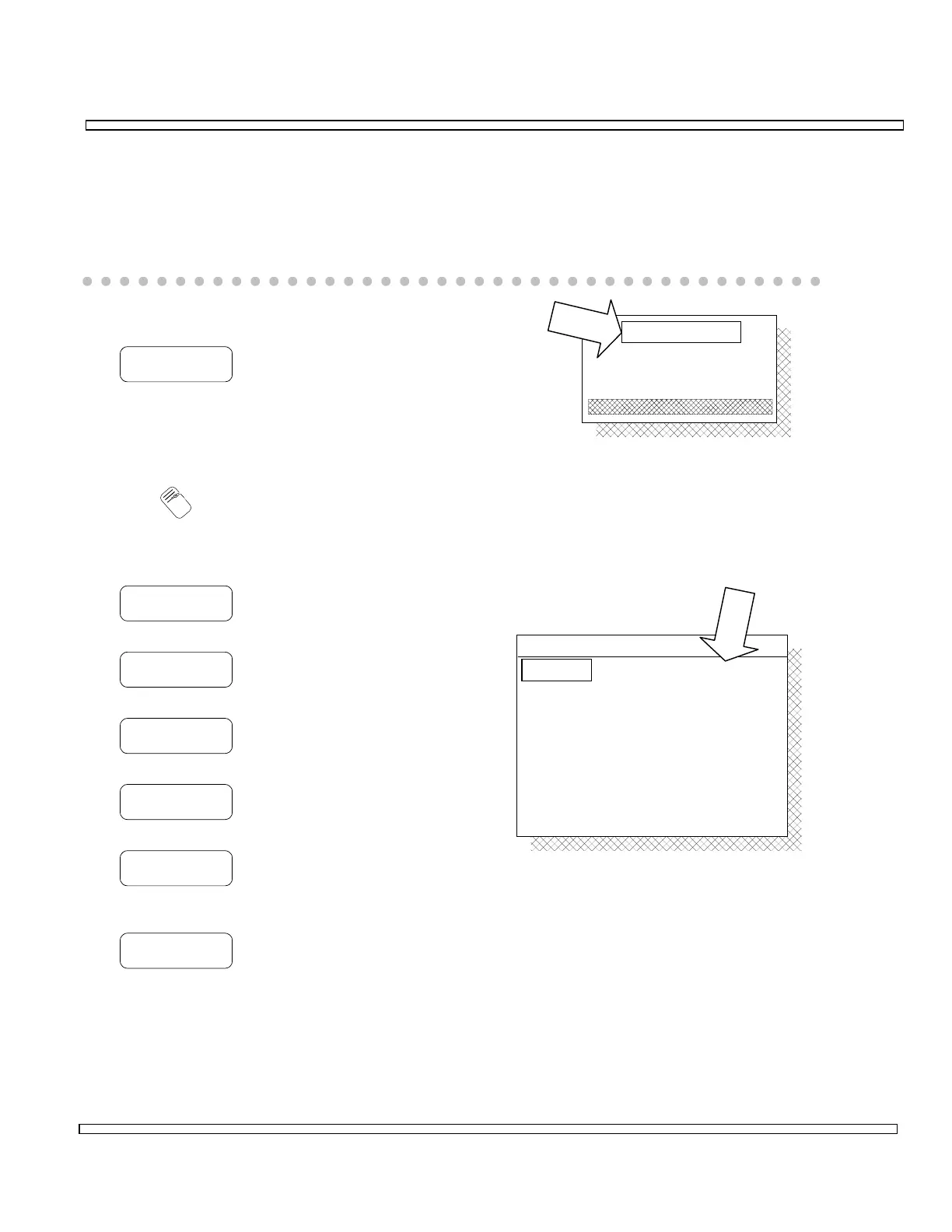

ZOOM
Displays full screen SINAD Meter.
o Enter RF Gen Level as required.
O
T
e
n
Editing RF field affects level on RF Generate Operation Screen.
To operate with SINAD Search Function:
dBm
Selects dBm as RF Level Units.
uV
Selects uV as RF Level Units.
mV
Selects mV as RF Level Units.
V
Selects V as RF Level Units.
SINAD=
Accesses field to set SINAD Search Function
value. Range of SINAD= is 6 to 55 dB.
S=On/Off
S=
is displayed beside RF Level Field to
activate SINAD Search Function. Press F6
again to deactivate.
SINAD
0 dB55 dB
- - - dB
RF Level:
Range:
Peak Hold:
Average:
Upper Limit:
Lower Limit:
Alarm:
-30.0 dBm
AUTO
ON
ON
ON
ON
OFF
12.0
28.0
2
