6-15-11 PARAMETRIC LIMITS

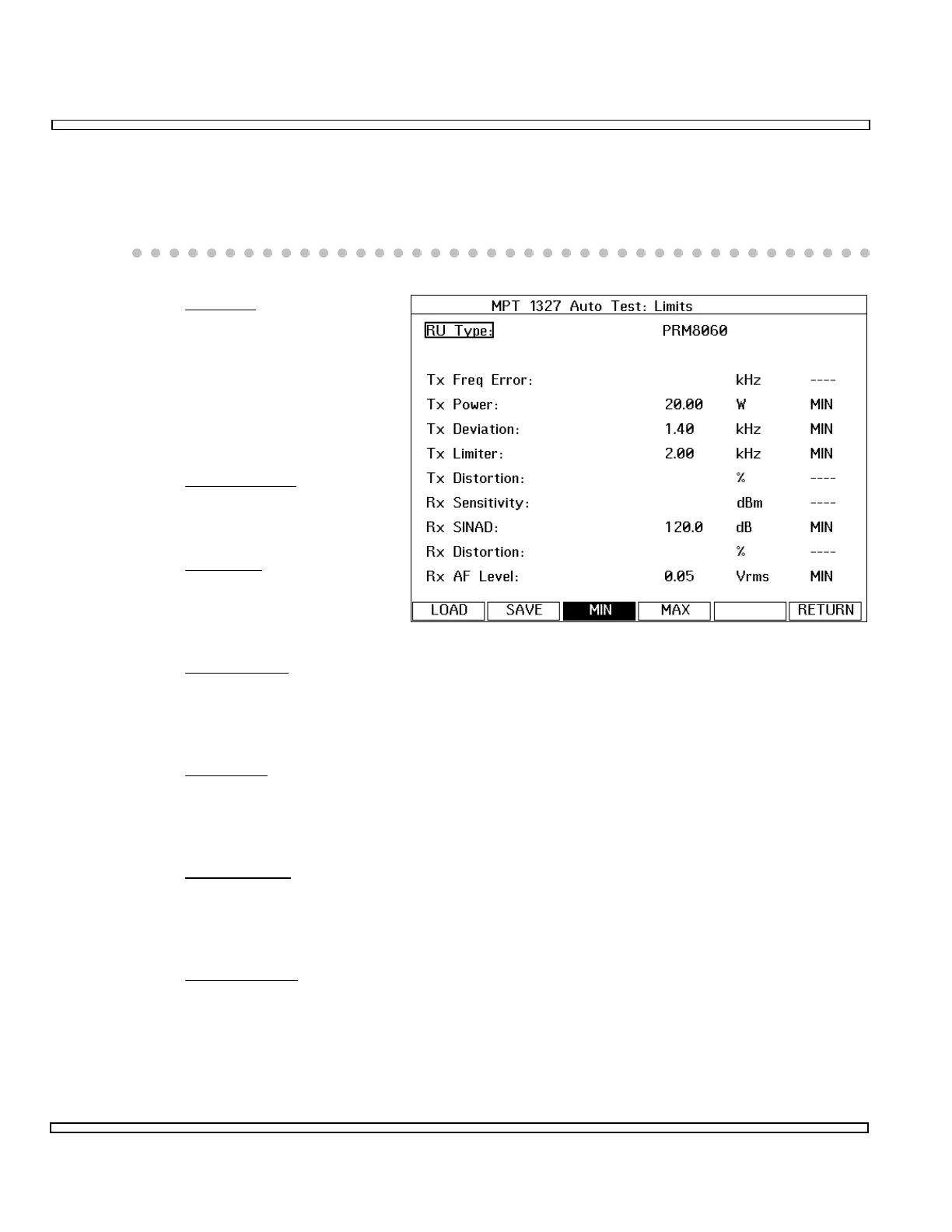

The Parametric Limits Screen for the Automated Test Mode allows pass/fail limits
settings.
1. RU Type
This field allows a set of
limits to be given a
descriptive label of up to
19 characters. This
parameter is optional and
has no effect on the
system operation.
2. Tx
Freq Error
Maximum permissable
frequency error, in kHz.
3. Tx Power
Minimum and maximum
permissable transmitter
power, in W.
4. Tx Deviation
Minimum and maximum permissable transmitter deviation, in kHz. Since the
COM-120C GEN1 is used to generate the test signal, direct audio connections are
required to perform this measurement.
5. Tx
Limiter
Minimum and maximum permissable transmitter limiting deviation, in kHz. Since
the COM-120C GEN1 is used to generate the test signal, direct audio connections
are required to perform this measurement.
6. Tx Distortion
Maximum permissable transmitter distortion, as a percentage. Since the COM-
120C GEN1 is used to generate the test signal, direct audio connections are
required to perform this measurement.
7. Rx Sensitivity
Maximum permissable receiver sensitivity, in dBm or µV. Since the COM-120C
GEN1 is used to generate the test signal, direct audio connections are required to
perform this measurement.
