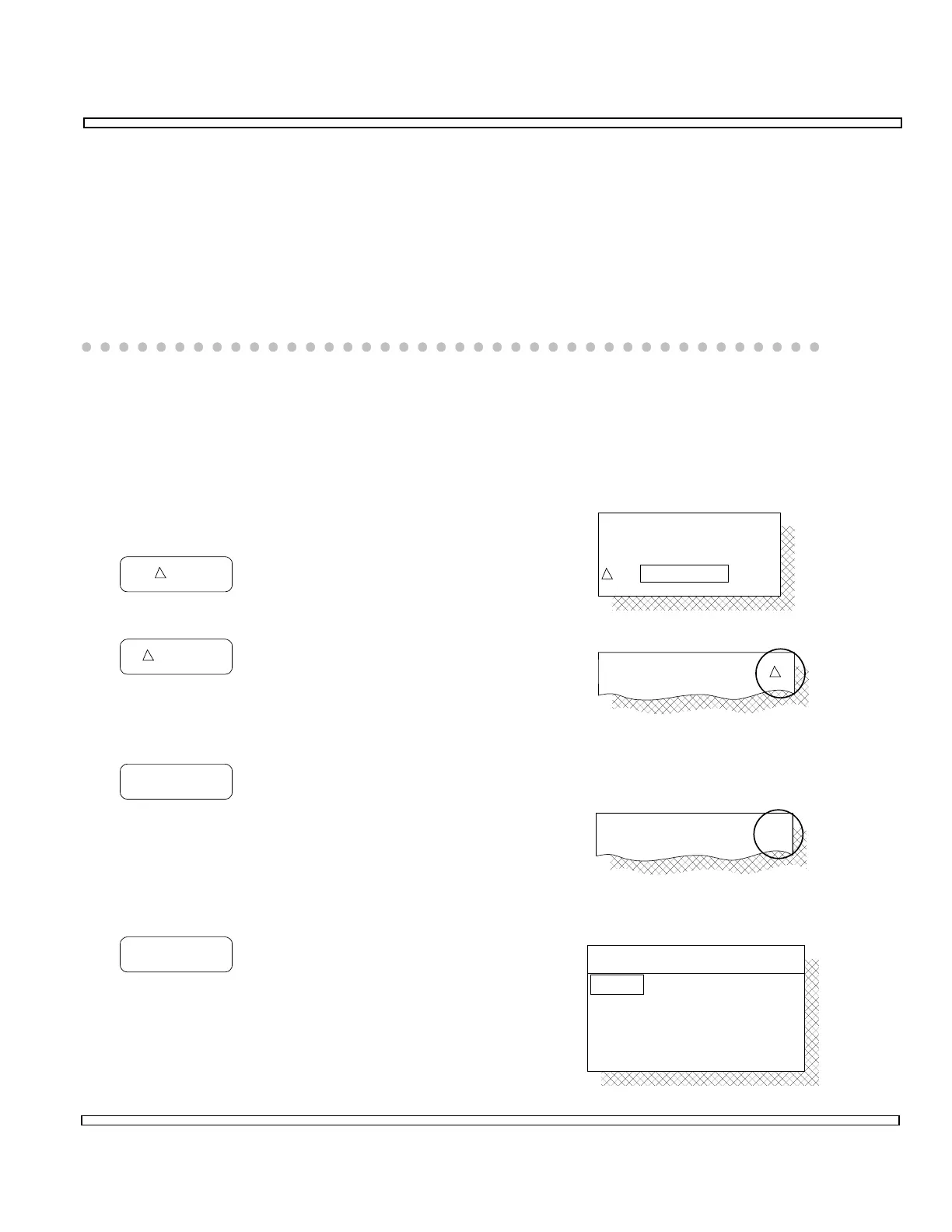

Page #74 background image
4-1
SECTION 4
OPERATION
4-1 RF GENERATE OPERATION
This section provides information on configuring the COM-120C to perform tests on the
receiver.
Press the GEN MODE Key to access the RF Generate Operation Screen. In this mode,
the COM-120C acts as a transmitter to test a receiver.
The intention is to provide sufficient information to allow the operator to effectively use
the COM-120C to perform specific operator defined tests.
4-1-1 GENERAL RF GENERATE OPERATION
o Enter desired frequency in RF Field.
Frequency range is 0.0000 to 1000.0000 MHz.
Activate additional functions as desired.
To operate with Function active:
=
Activates window to increment RF Field. Range is 0 to
500 MHz.
On/Off
Activate/deactivate Function. Prompt displays by RF
Field.
To Operate with Set Reference Function:
SET REF
R
appears beside RF Field. When active, RF Field is
set to 0 MHz and changes made to RF Field display
offset from Reference Frequency. To deactivate Set
Reference Function, press SET REF until
R
is not
visible.
To Operate with Sweep Operation:
SWEEP
Opens Sweep Configuration Window. Once Sweep
Configuration Window is opened, enter start frequency,
stop frequency, increment for sweep operation and
pause time at each frequency. Press F1 to start
continuous sweep, F2 to stop the sweep, F3 for single
sweep and F5 to resume a halted sweep. Press F6 to
exit.
Set Steps:
0.2000= MHz
RF: 10.0000 MHz
RF: 10.0000 MHz R
SWEEP STOP
Start: 100.0000 MHz
Stop: 200.0000 MHz
Incr: 1.0000 MHz
Pause Time: 1.0 Sec
