4-2
SECTION 4
OPERATION
O
T
e
n

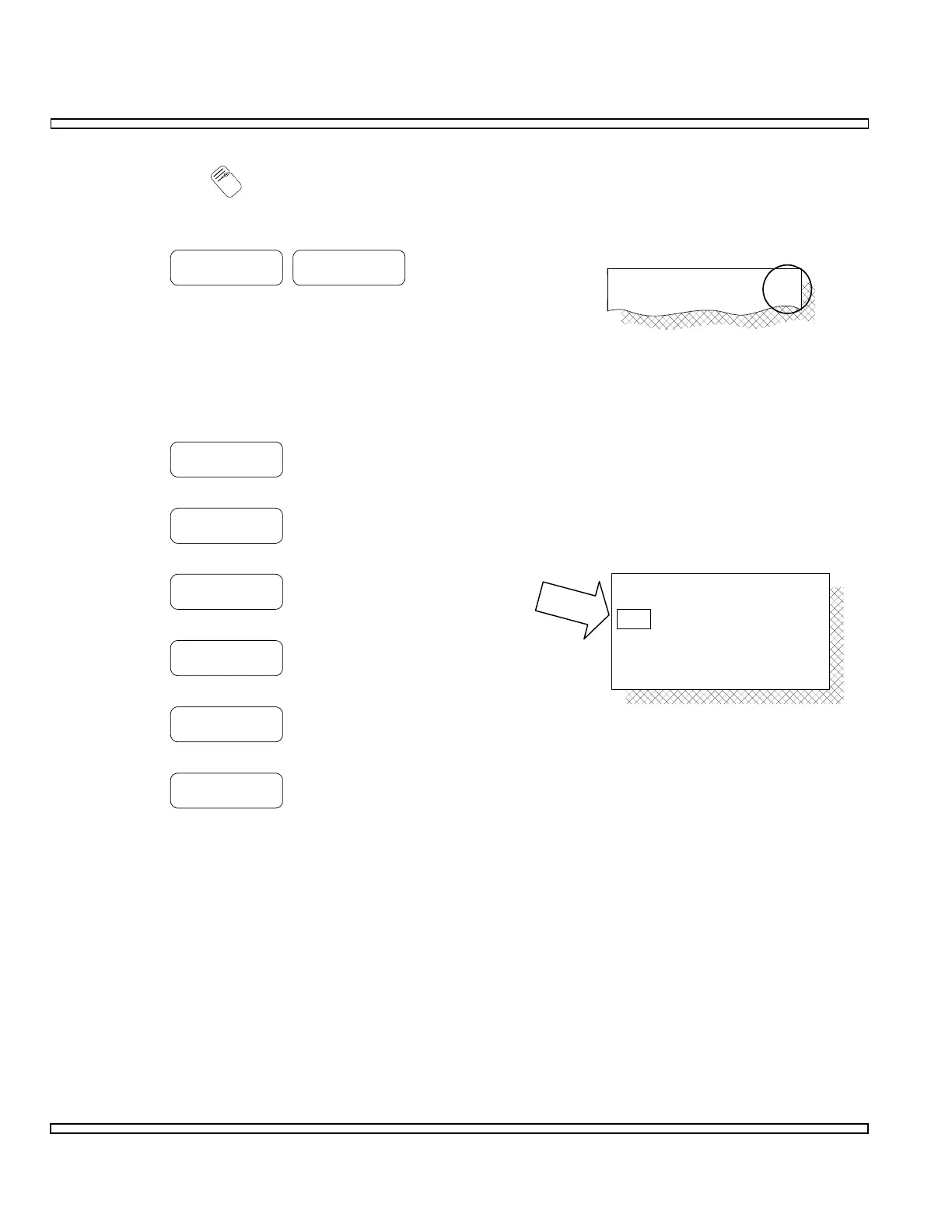

Set Reference and Sweep Function work independently, never
simultaneously.
LOCK
UNLOCK
To Operate with RF Generate, RF Receive and
Spectrum Analyzer RF Frequencies locked,
press F5 until L is displayed beside RF Field.
Press F5 again to unlock.
o If Frequency List Operation is desired instead of entering frequency in RF Field,
select Frequency List Setting as follows:
On/Off
Activates Frequency List Setting.
T-Fwd
Selects Trunking Forward Channel List.
T-Rvs
Selects Trunking Reverse Channel List.
C-Fwd
Selects Cellular Forward Channel List.
C-Rvs
Select Cellular Reverse Channel List.
FL
Select User Defined Frequency List.
If Cellular Channel List or User Defined Frequency List is selected, enter
channel/frequency number. Range of cellular channels is 1 to 1023. Range of
Frequency List is 0 to 99.
If Trunking Channel List is selected, select channel number. Select Frequency
Band. Select desired Frequency Band using DATA SCROLL Keys or DATA
SCROLL Spinner. Press ENTER Key.
RF: 10.0000 MHz
FL: OFF
Level: -30.0 dBm
Output: T/R
RF: 10.0000 MHz L
