IFR COM-120C User Manual

3-7
SECTION 3
COMPOSITE
26
27
28
29 30
31
323334
00607261

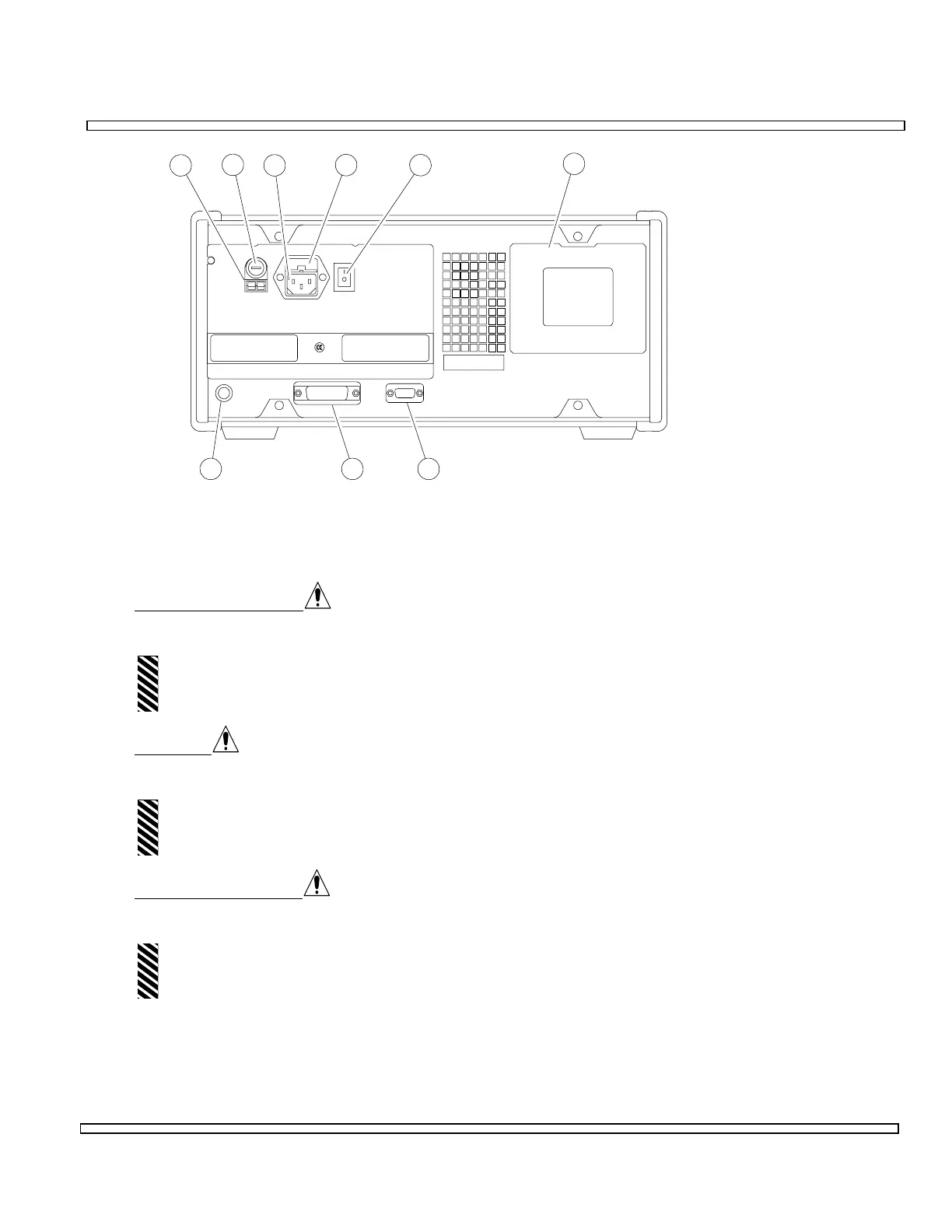

COM-120C Rear Panel Controls
3-2 REAR PANEL CONTROLS
26. DC Input Connector
Accepts dc power cord to supply dc power (12, 24 to 30 Vdc) to COM-120C.
CAUTION:
DO NOT EXCEED 30 Vdc OR DAMAGE TO THE COM-120C MAY RESULT.
27. DC Fuse
10 A, 32 V, Type F, AGC Fuse is provided for dc operation.
CAUTION:
ONLY USE 10 A, 32 V TYPE F FUSE OR DAMAGE TO THE COM-120C MAY
RESULT.
28. AC Input Connector
Accepts ac power cord to supply ac power to COM-120C.
CAUTION:
DO NOT EXCEED 265 VAC OR DAMAGE TO THE COM-120C MAY RESULT.

IFR COM-120C Specifications

General

Resolution	1 Hz
RF Input Impedance	50 Ω
Third Order Intercept (TOI)	+10 dBm
Display Type	LCD
Display Resolution	640 x 480 pixels
RF Input Protection	1 W
Power Requirements	100-240 VAC, 50-60 Hz
Input VSWR	1.5:1
Phase Noise	-80 dBc/Hz @ 10 kHz offset

Summary

COM-120C Communications Service Monitor Operation Manual

Preface

Provides an overview of the manual's organization, scope, and intended audience.

Section 1: Introduction

Introduces the COM-120C, its functions, and basic operation modes.

Section 2: Installation

Provides information on preparing the COM-120C for use and operating precautions.

Section 3: Composite Controls

Details front and rear panel controls, screens, soft function keys, and menus for system interaction.

Section 4: Operation Procedures

Covers configuring and performing various operational tests like RF Generate, Receive, and Duplex modes.

Section 5: Common Practices

Offers suggestions for equipment and screen setups for common RF Generate and Receive practices.

Section 6: Options and Features

Describes optional features and accessories for the COM-120C, including testing capabilities.

Safety and Precautions

General Safety Warnings

Covers high voltage equipment hazards, servicing, case removal, and safety identification terms.

Battery Handling and ESD Precautions

Provides warnings for sealed lead-acid battery use and precautions for handling ESD-sensitive parts.

Appendix A: User I/O Connectors and Pin-Outs

Table of I/O Connectors

Details the connector names, types, signal direction, and signal types for COM-120C I/O ports.

Connector Pin-Out Tables

Provides specific pin assignments for MIC/ACC, GPIB, and RS-232 connectors.

Appendix B - Abbreviations

Soft Function Key Descriptions

An alphabetical reference for COM-120C soft function keys and their descriptions.

Appendix C - Repacking for Shipping

Shipping and Repacking Procedures

Details authorization, tagging, container requirements, freight costs, and step-by-step repacking instructions.

Index

Index-1

Alphabetical listing of topics and their corresponding page numbers for easy reference.
