3-20
SECTION 3
COMPOSITE

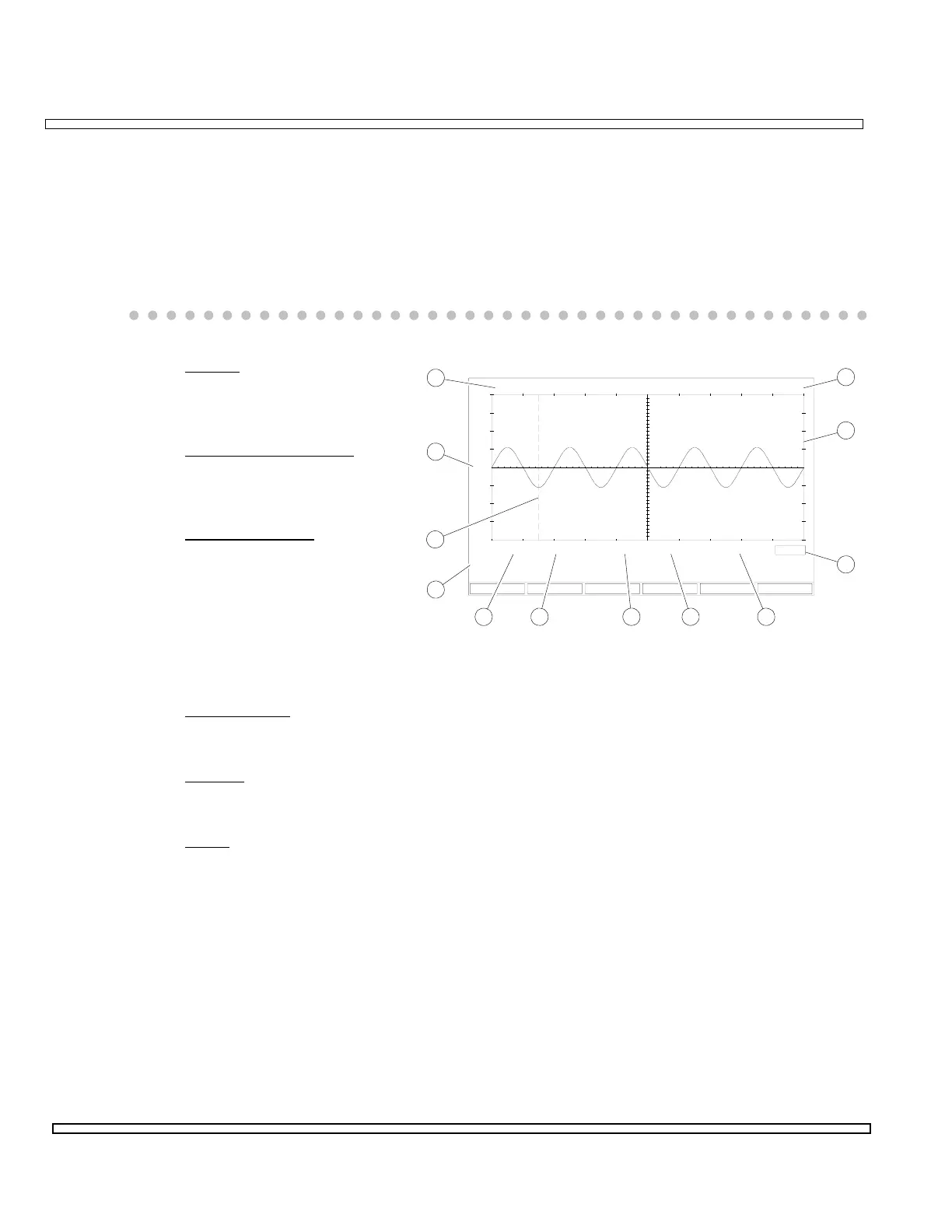

3-3-10 OSCILLOSCOPE SCREEN
The Independent Oscilloscope Operation Screen operates as an independent piece of
test equipment and is accessed by pressing the SCOPE Instruments Key. Input for
Oscilloscope Operation is through the SCOPE/DVM Connector. The Oscilloscope
Operation Screen
The Oscilloscope Operation Screen displays in the configuration last used.
1. Sweep
Displays selected
Oscilloscope Sweep.
2. Oscilloscope Screen
Displays digitized trace of
specified signal.
3. Marker Position
Displays current Marker
Position if Marker (10) is
active or OFF if inactive.
Value for Marker Position
is in same units as Sweep
(1) with Trigger point as
reference.
4. Trigger Type
Displays selected Trigger Type.
5. Trigger
Adjusts trigger level as indicated by Trigger Level Indicator (11) when accessed.
6. Mode
Displays selected Operation Mode. Selections include Menu, Average, Pk Hold,
Min Hold and Store.
Menu displays a menu window with selections Live, Recall, Compare, Live-Ref
and Ref-Live.
Live displays current signal without modification.
Recall displays Stored trace only.
Compare displays Stored trace and live trace simultaneously.
In Live-Ref, the value of each point of the reference trace is subtracted from the
current reading and the result is displayed.
0060704
T->
SCOPE 500 us/div100 mV
V Pos H Pos
Mode
Trigger Trig Type Marker
0 Div
LIVE
AUTO 750.00
1
2
3
45678
11
12
10
Cplg
AC
9
Oscilloscope Screen
To Next Page
General
