SECTION 6
OPTIONS
6-12-15 RADIO SIMULATOR OPERATION
The Radio Simulator is used to test LTR Repeaters. To test LTR Repeaters, knowledge
of the Radio Configuration Data is required for the Mobile Radios that are serviced by
the Repeater being tested.
This section is divided into paragraphs with the first paragraph being General
Configuration and the remaining paragraphs being different tests. Perform the General
Configuration before each test.

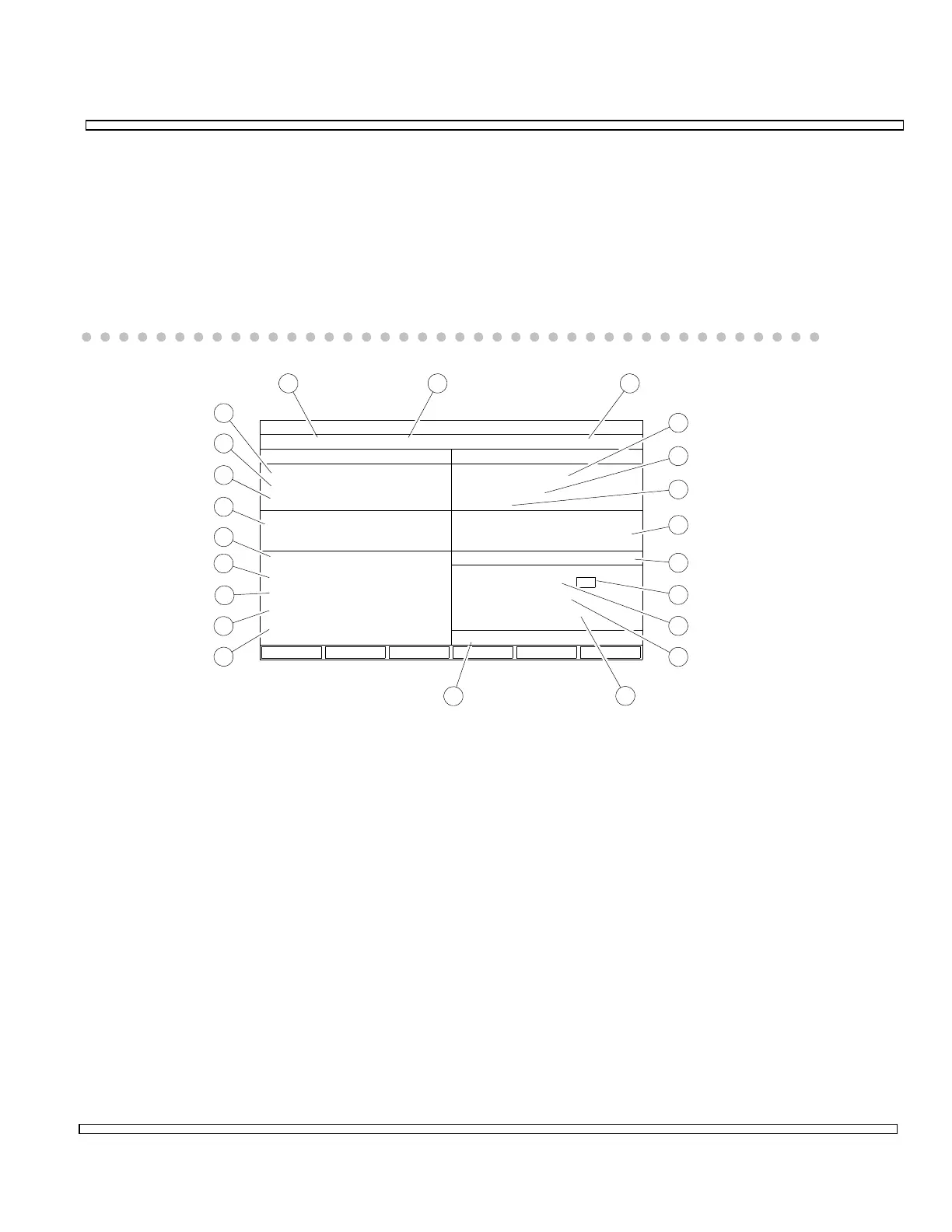

00607239
LTR TRUNKING RADIO SIMULATOR
Ch #: 1 Band: 800 MHz
RF:
Atten:
Input:
Free
Home
Area Goto
Group Group
In UseArea
Home
Free
1
10
1
2 PTT OFF
T/R
0 dB
851.0125 MHz MHz806.0125
-40.0 dBm
T/ROutput:
Level:
RF:
GEN-1 DATA
Shad:
Mod Source:
Deviation:
Frequency: 1000.0 Hz
0.0 kHz:
GEN1 FM
RF Power:
RF Error Freq:
Deviation:
AF Frequency:
Distortion:
0.0 mW
2.774 kHz
7.74 kHz (v)
1919 Hz
+ + + %
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
RECEIVE
GENERATE
Extended Meas:
1 2 3
o Configure Auxiliary Setup Screen
o From LTR
Trunking Menu, select “1. Radio Simulation.”
o
Enter Channel Number (1). Range is 1 to 760.
o
Choose Band Selection (2). Selections are 800 MHz, 900 MHz or USER.
o
Select Output (6) for COM-120C Generator. Selections are T/R (T/R Connector) or
AUX (AUX RF OUT Connector).
o
Set Level (5) to desired Output Level. Range for Output (6) set to T/R is -130 to
-40 dBm. Range for Output (6) set to AUX is -130 to -13 dBm.
o
Activate Modulation Source (10) as required. If two (or more) sections of the RF
Modulator are set in conflict (e.g. GEN1 set for PM and GEN2 set for FM, or GEN1
set for 0.01 kHz deviation and GEN2 set for 2.60 kHz deviation) then the screen
shows the invalid source grayed out.
o
If AUDIO/DATA IN Meter Operation is required, select desired meter.
o
If AUDIO/DATA IN Meter Operation is selected, Deviation Meter (16), AF Frequency
Meter (15) and Distortion/ DTMF Meter are deactivated.
o
If Distortion Meter Operation is required, select desired meter.
To Next Page
