6-53
SECTION 6
OPTIONS
6-13-4 REGISTRATION TEST
The Registration Test sends a Registration order to the Mobile Phone. The registration
parameters of the Mobile Phone tested and displayed.
To perform the Registration Test, verify the Registration Field is ENABLED. Registration
Test results appear following test completion.
1. SCM
Displays 4
least
significant
Station Class
Mark bits.
2. Power Class
Displays
Power Class
of Mobile
Phone under
test.
3. Transmission
State
Displays Transmission State, Continuous or Discontinuous, of Mobile Phone under
test.
4. Bandwidth
Displays bandwidth of Mobile Phone under test. 20 MHz allows channels 1 to
666. 25 MHz allows channels 1 to 1023.
5. DCC
Displays Digital Color Code last received by Mobile Phone under test.
6. ESN
Displays Electronic Serial Number of Mobile Phone under test in Hexadecimal,
Decimal and Octal.
7. MIN
Displays Mobile Identification Number of Mobile Phone under test.
8. V Chan
Displays Voice Channel designated to Mobile Phone by Test Set.

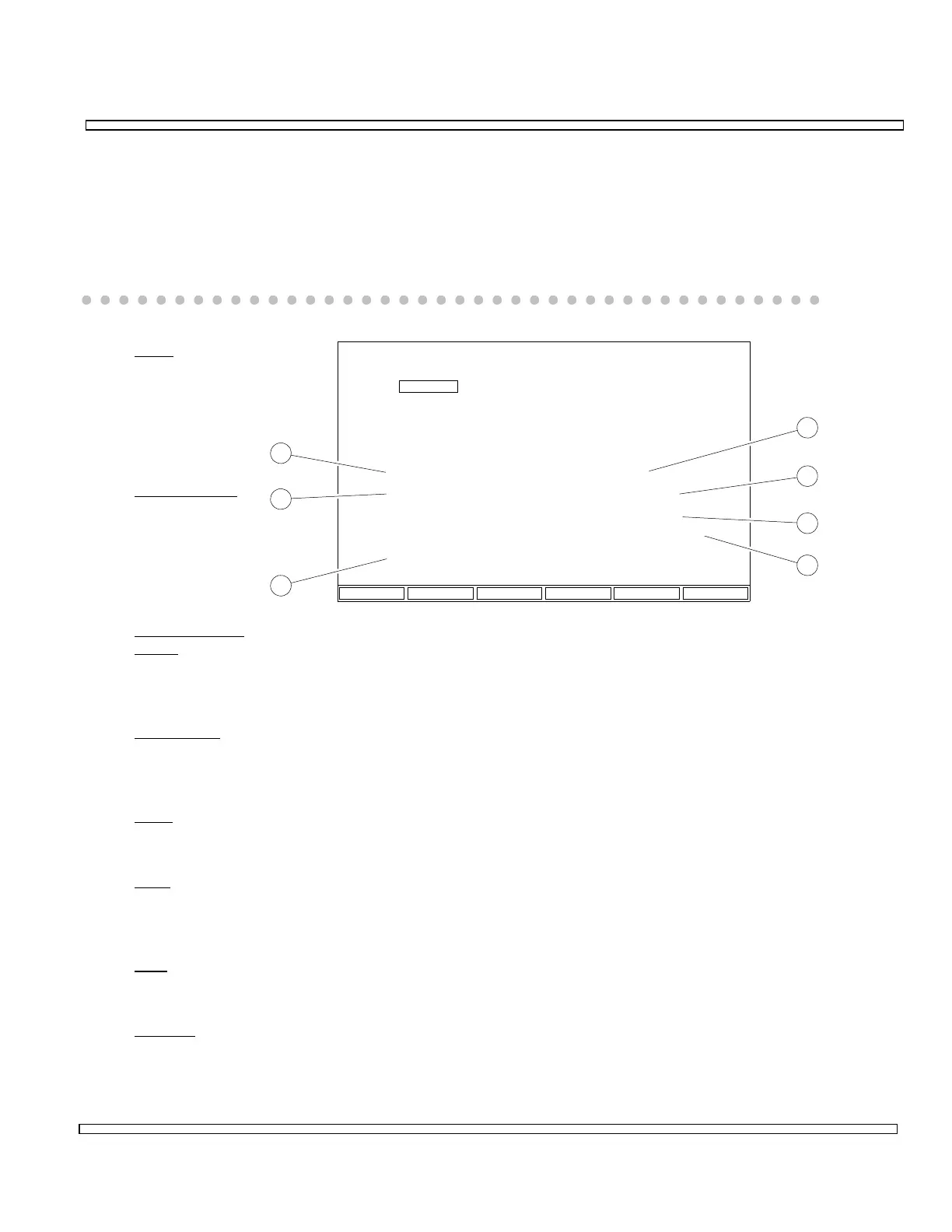

8717126
RETURN
AMPS Cellular
Manual Test
Registration
Mobile Init
Cell Init
MIN:
ESN:
DCC:
316/522-4981
HEX 8208A4C4
Dec 13000566468
Oct 20202122304
2
SCM: 0100
POWER CLASS 1
DISCONTINUOUS
BANDWIDTH: 20 MHz
1
2
3
4
5
6
7
CELLMOBILEREG
