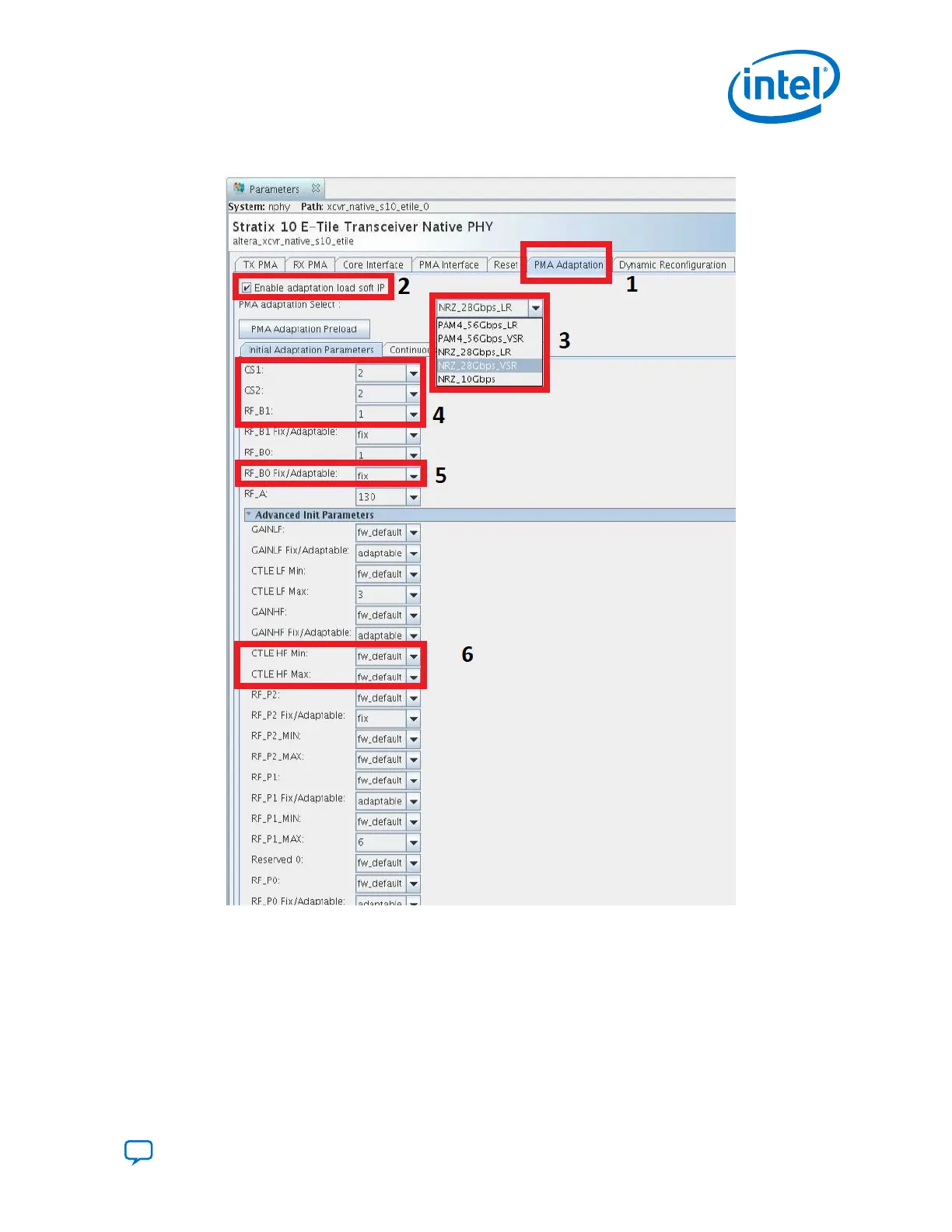

Figure 93. GUI for Initial Adaptation PMA Configuration Setup
1. The PMA Adaptation tab is used to configure the transceiver PMA parameters to
compensate the channel loss profile.
2. To enable this IP feature, enable adaptation load soft IP.
3. You can select the PMA configuration that configures the PMA AFE parameters to
the required settings before initiating initial adaptation and continuous adaptation.
The PMA configurations listed have been validated across PVT as per IEEE
802.3bs/bj specifications. If you have a different test setup, you must tune some
of the parameters to achieve the optimal performance across the PVT.
4. Initial adaptation and continuous adaptation PMA parameter options are:
