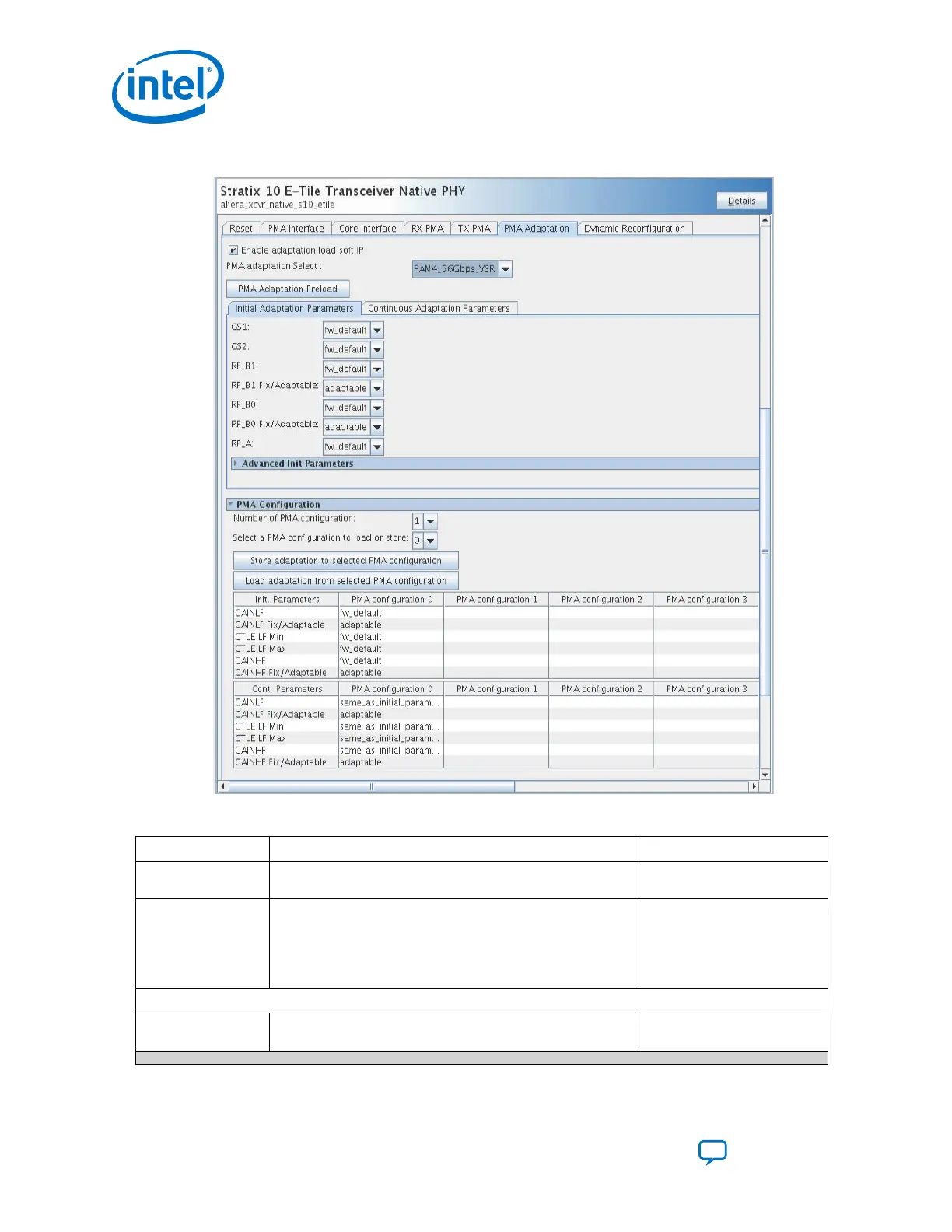

Figure 21. PMA Adaptation Options
Table 17. PMA Adaptation Options
Parameter Value Description
Enable adaptation
load soft IP
On/Off Enables PMA adaptation
parameter customization.
PMA adaptation
Select
PAM4_56Gbps_LR
PAM4_56Gbps_VSR
NRZ_28Gbps_LR
NRZ_28Gbps_VSR
NRZ_10Gbps_25/15/10dB
Selects preloaded PMA
configuration parameters.
Initial Adaptation Parameters
GS1 Fw_default, 0, 1, 2, 3 CTLE Low Frequency Gain
Shaping 1.
continued...
