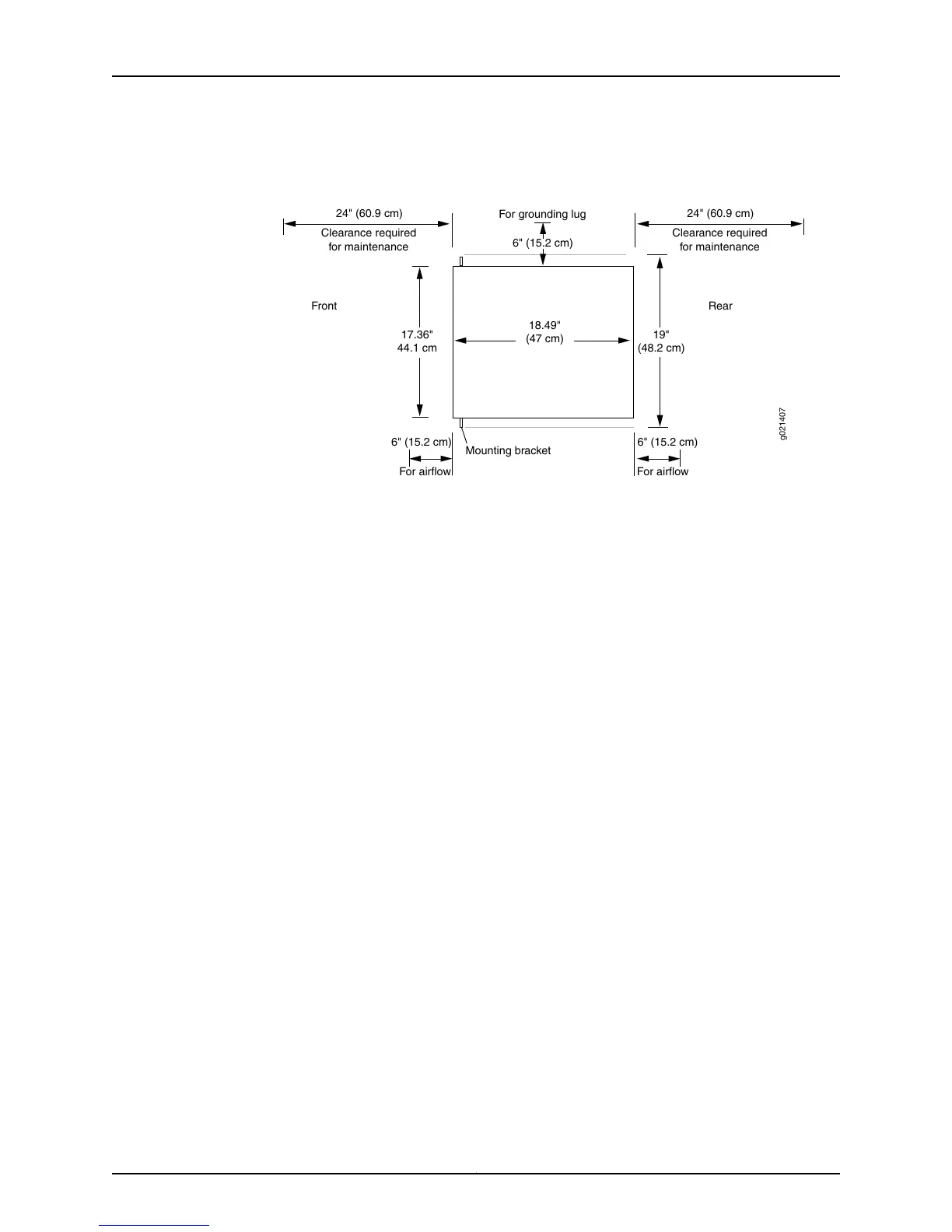

Figure 32: Clearance Requirements for Airflow and Hardware Maintenance

for an EX4550 Switch Chassis

RearFront

17.36"

44.1 cm

18.49"

(47 cm)

g021407

Clearance required

for maintenance

24" (60.9 cm)

19"

(48.2 cm)

Clearance required

for maintenance

24" (60.9 cm)

Mounting bracket

For airflowFor airflow

6" (15.2 cm) 6" (15.2 cm)

6" (15.2 cm)

For grounding lug

Documentation

• Chassis Physical Specifications for EX4550 Switches on page 17

• Rack-Mounting and Cabinet-Mounting Warnings on page 266

• General Site Guidelines on page 76

• Cooling System and Airflow in an EX4550 Switch on page 35
