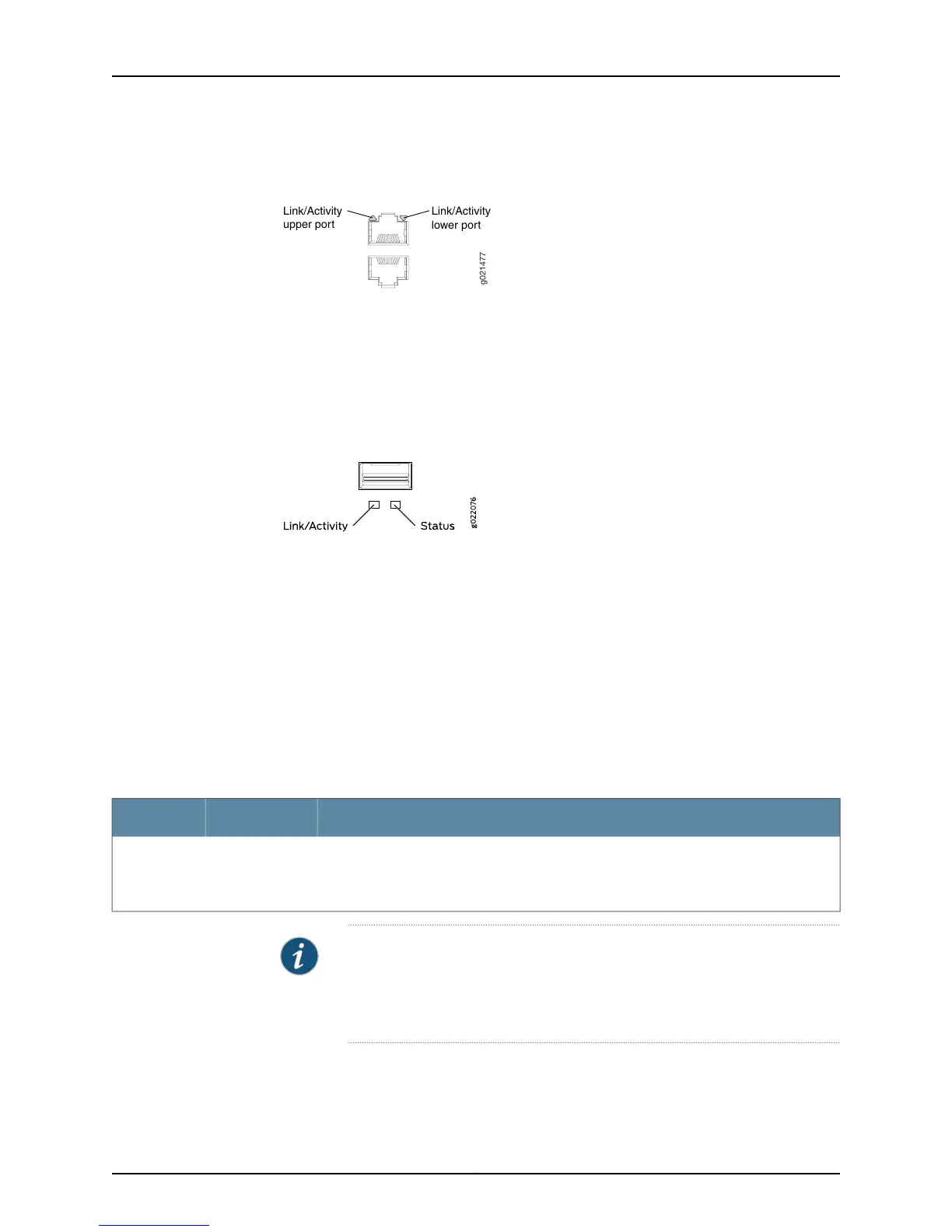

Figure 19: 10GBASE-T Ethernet Network Port and 10GBASE-T Expansion
Module Port LEDs
Link/Activity
lower port
Link/Activity
upper port
g021477
Each 10GBASE-T Ethernet network port and 10GBASE-T expansion module port has an
LED that indicate the link activity of the port. Each LED is shaped to point toward the port
for which it displays the link activity.
Figure20 on page 31 shows the LEDs on the QSFP+ expansion module ports of an EX4550
switch.
Figure 20: QSFP+ Expansion Module Port LEDs
Each QSFP+ expansion module port has two LEDs that indicate link activity and status
of the expansion module ports.
The following tables in this topic describes the behavior of link activity and status LEDs
of network ports and expansion module ports in EX4550 switches:
•
Table 14 on page 31 describes the Link/Activity LED.
•
Table 15 on page 32 describes the Status LED on SFP+ network ports and SFP+
expansion module ports.
•
Table 16 on page 32 describes the Status LED on QSFP+ expansion module ports.
Table 14: Link/Activity LED on Network Ports and Expansion Module Ports
State and DescriptionColorLED
•
Blinking—The port and the link are active, and there is link activity.
•
On steadily—The port and the link are active, but there is no link activity.
•
Off—The port is not active.
GreenLink/Activity
NOTE: You must configure medium-dependent interface (MDI) properties
for a 10-gigabit Ethernet interface on 10GBASE-T network ports and
10GBASE-T expansion module ports to ensure that both sides of the link are
compatible. For information about MDI properties, see mdi-mode.
31Copyright © 2015, Juniper Networks, Inc.
Chapter 2: Chassis Components and Descriptions
