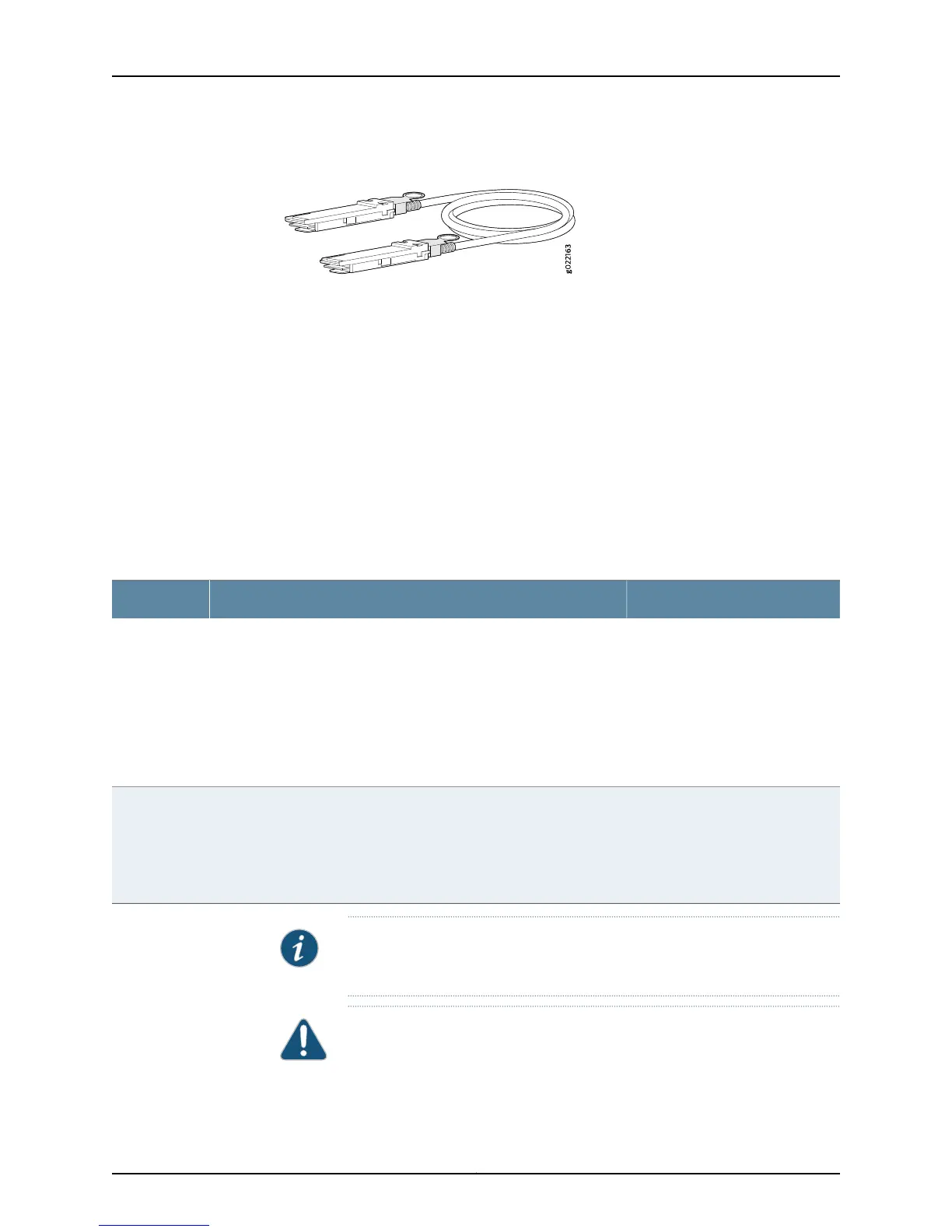

Figure 34: QSFP+ Direct Attach Cables for EX Series Switches
This topic describes:
•
Cable Specifications on page 115
Cable Specifications
QSFP+ passive direct attach cables are hot-removable and hot-insertable. A cable
consists of a cable assembly that connects directly into two QSFP+ modules, one at
each end of the cable. The cables use integrated duplex serial data links for bidirectional
communication and are designed for data rates up to 40 Gbps. Passive direct attach
cables have no signal amplification built into the cable assembly.
Table 54 on page 115 describes the support for QSFP+ passive direct attach cable lengths
on EX Series switches for Junos OS releases.
Table 54: Software Support for QSFP+ Passive Direct Attach Cables for EX Series Switches
DAC Model NumberSoftware Support AddedSwitch
•
EX-QSFP-40GE-DAC-50CM
•
QFX-QSFP-DAC-1M
•
QFX-QSFP-DAC-3M
•
JNP-QSFP-DAC-5M
•
EX4300-24T, EX4300-24P, EX4300-48T, EX4300-48T-AFI,
EX4300-48P, EX4300-48T-DC, and EX4300-48T-DC-AF
switches—Junos OS for EX Series switches, Release 13.2X50-D10 or
later
•
EX4300-32F switches—Junos OS for EX Series switches, Release
13.2X51-D15 or later
•
EX4300-24T-S, EX4300-24P-S, EX4300-32F-S, EX4300-48T-S,
and EX4300-48P-S switches—Junos OS for EX Series switches,
Release 13.2X51-D26 or later
EX4300
switches
•
EX-QSFP-40GE-DAC-50CM
•
QFX-QSFP-DAC-1M
•
QFX-QSFP-DAC-3M
•
JNP-QSFP-DAC-5M
•
EX4550-32T-AFI, EX4550-32T-AFO, EX4550-32T-DC-AFI,
EX4550-32T-DC-AFO, EX4550-32F-AFI, EX4550-32F-AFO,
EX4550-32F-DC-AFI, and EX4550-32F-DC-AFO switches—Junos OS
for EX Series switches, Release 13.2X50-D10 or later
•
EX4550-32F-S switches—Junos OS for EX Series switches, Release
12.3R5 or later
EX4550
switches
NOTE: We recommend that you use only QSFP+ direct attach cables
purchased from Juniper Networks with your Juniper Networks device.
CAUTION: If you are having a problem running a Juniper Networks device
that is using a third-party optic or cable, the Juniper Networks Technical
Assistance Center (JTAC) can help you diagnose the source of the problem.
Your JTAC engineer might recommend that you check the third-party optic
