AC Power Supply LEDs in EX4550 Switches
Figure26 on page43 shows the location of the LEDs on an AC power supplyfor an EX4550
switch.

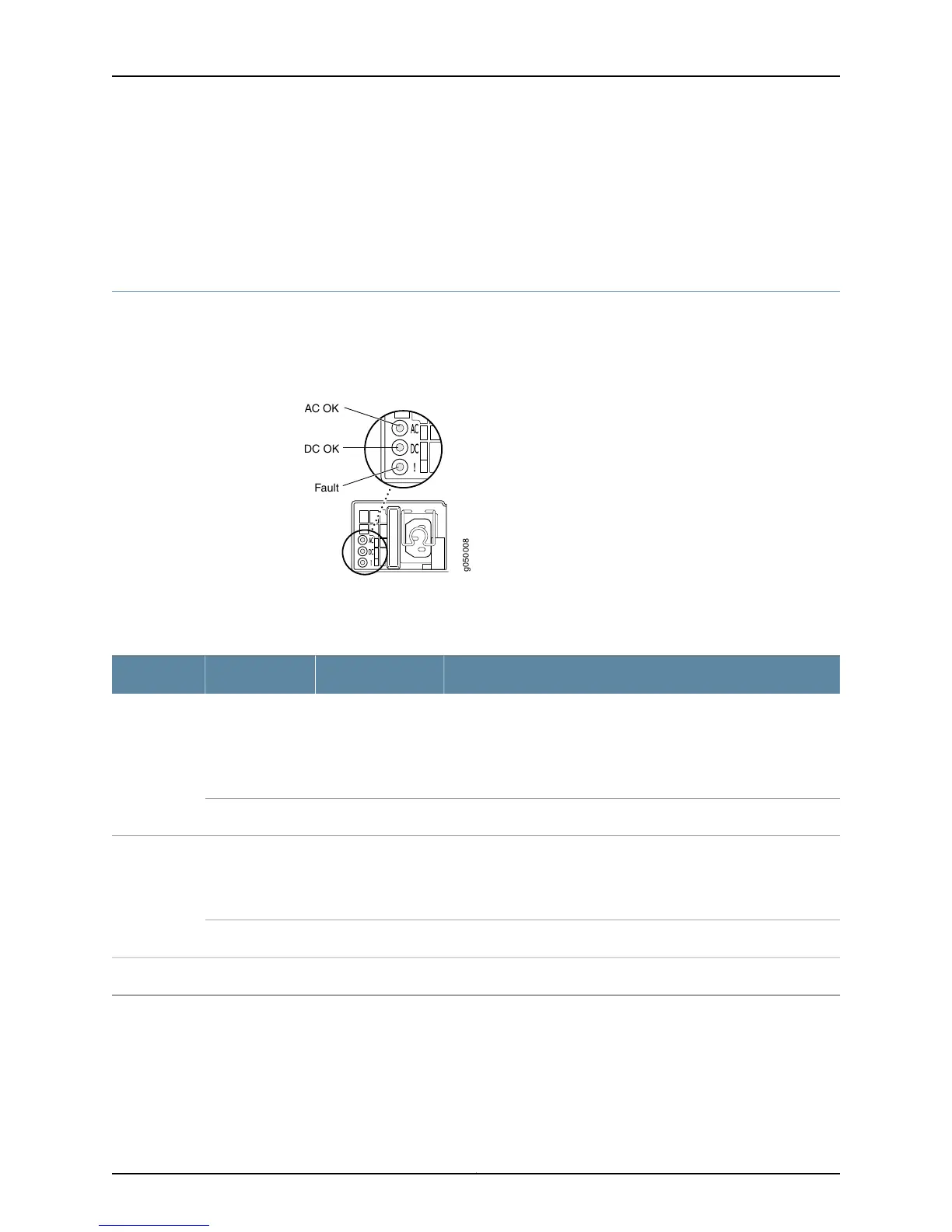

Figure 26: AC Power Supply LEDs in an EX4550 Switch
g050008
AC OK
DC OK
Fault
Table 21 on page 43 describes the AC power supply LEDs.
Table 21: AC Power Supply LEDs in EX4550 Switches
DescriptionStateColorLED
Indicates one of the following:
•
Power supply is disconnected from AC power feed.
•
AC power input voltage is not within normal operating range.
•
No AC power input.
OffUnlitAC (AC OK)
Power supply is functioning normally.On steadilyGreen
Indicates one of the following:
•
The power supply is disconnected from the power feed.
•
The power supply is not delivering power correctly.
OffUnlitDC (DC OK)
The power supply is functioning correctly.On steadilyGreen
The power supply has failed and must be replaced.On steadilyYellow! (Fault)
