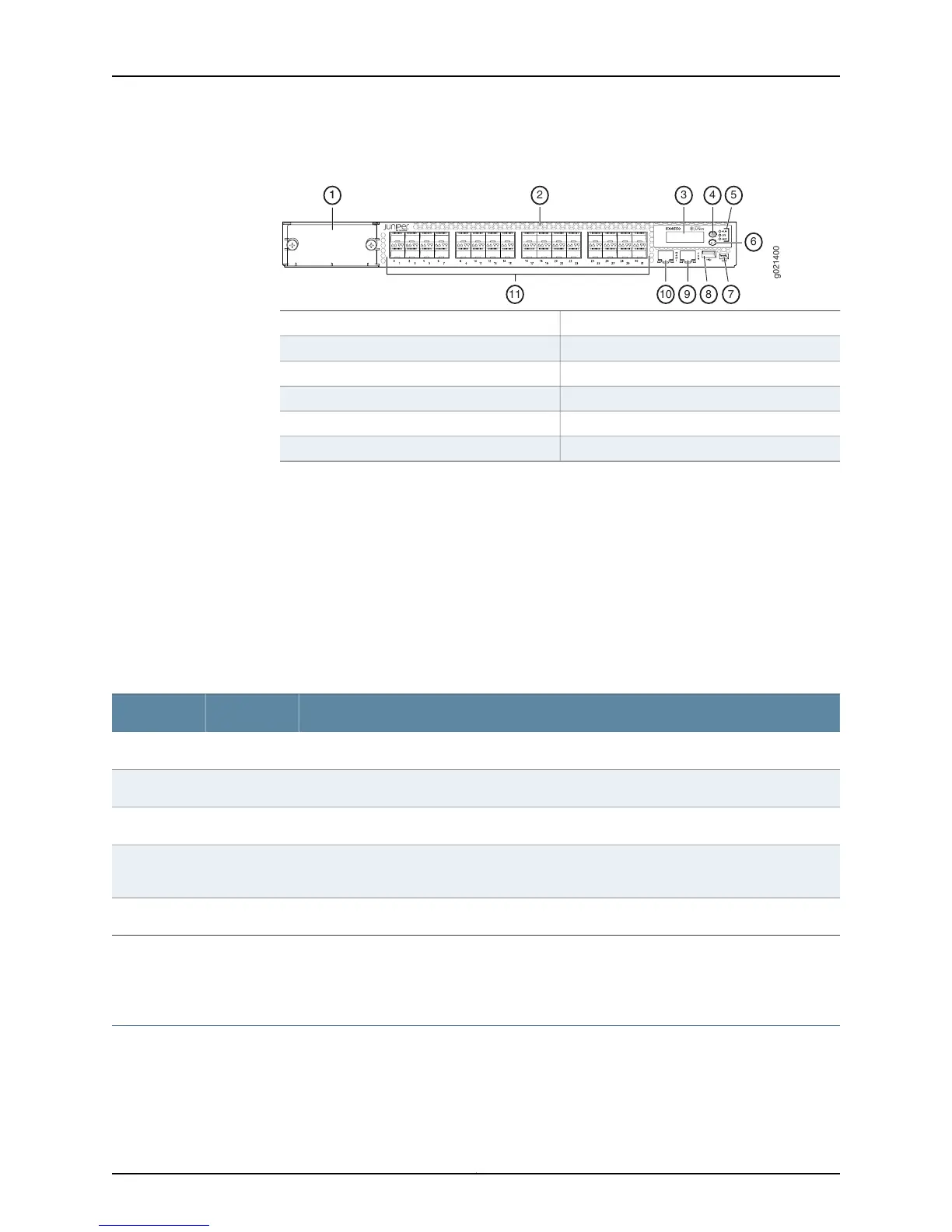

Figure 35: Front Panel of an EX4550-32F Switch
1
1 3
6
7891011
4 52
g021400
7—1— Mini-USB console portModule slot cover panel
8—2— USB portAir vents
9—3— RJ-45 console portLCD panel
10—4— Management portLCD panel Menu button
11—5— SFP+ network portsChassis status LEDs
6—LCD panel Enter button
If your management host (laptop or PC) does not have a DB-9 male connector pin or an
RJ-45 connector pin, you can connect your management host to the Mini-USB Type-B
console port of an EX4550 switch using the cable that has a standard Type-A USB
connector on one end and a Mini-USB Type-B (5 pin) connector on the other end.
The Mini-USB Type-B console port uses a Mini-USB Type-B connector to connect to a
console management device. The default baud rate for the console port is 9600 baud.
Table 59 on page 125 provides the pinout information of the Mini-USB Type-B console
port.
Table 59: Mini-USB Type-B Console Port Pinout Information for EX4550 Switches
DescriptionSignalPin
+5 VDCVCC1
Data -D-2
Data +D+3
Could be not connected (N/C), connected to ground (GND), or used as an attached device
presence indicator
N/CX
GroundGND4
Related
Documentation
EX4550 Switches Hardware Overview on page 3•
USB Port Specifications for an EX Series Switch
The following Juniper Networks USB flash drives have been tested and are officially
supported for the USB port on all EX Series switches:
