Keithley 2280 Series Reference Manual

Series 2280 Precision DC Power Supply Reference Manual Section 3: Functions and features
077085503 / March 2019 3-25
Trigger model
The trigger model controls the sequence in which measurements occur. It consists of two layers (Arm
Layer and Trigger Layer) to provide versatility.
Programmable counters allow operations to be repeated, and various input and output trigger options
are available to provide source-measure synchronization.

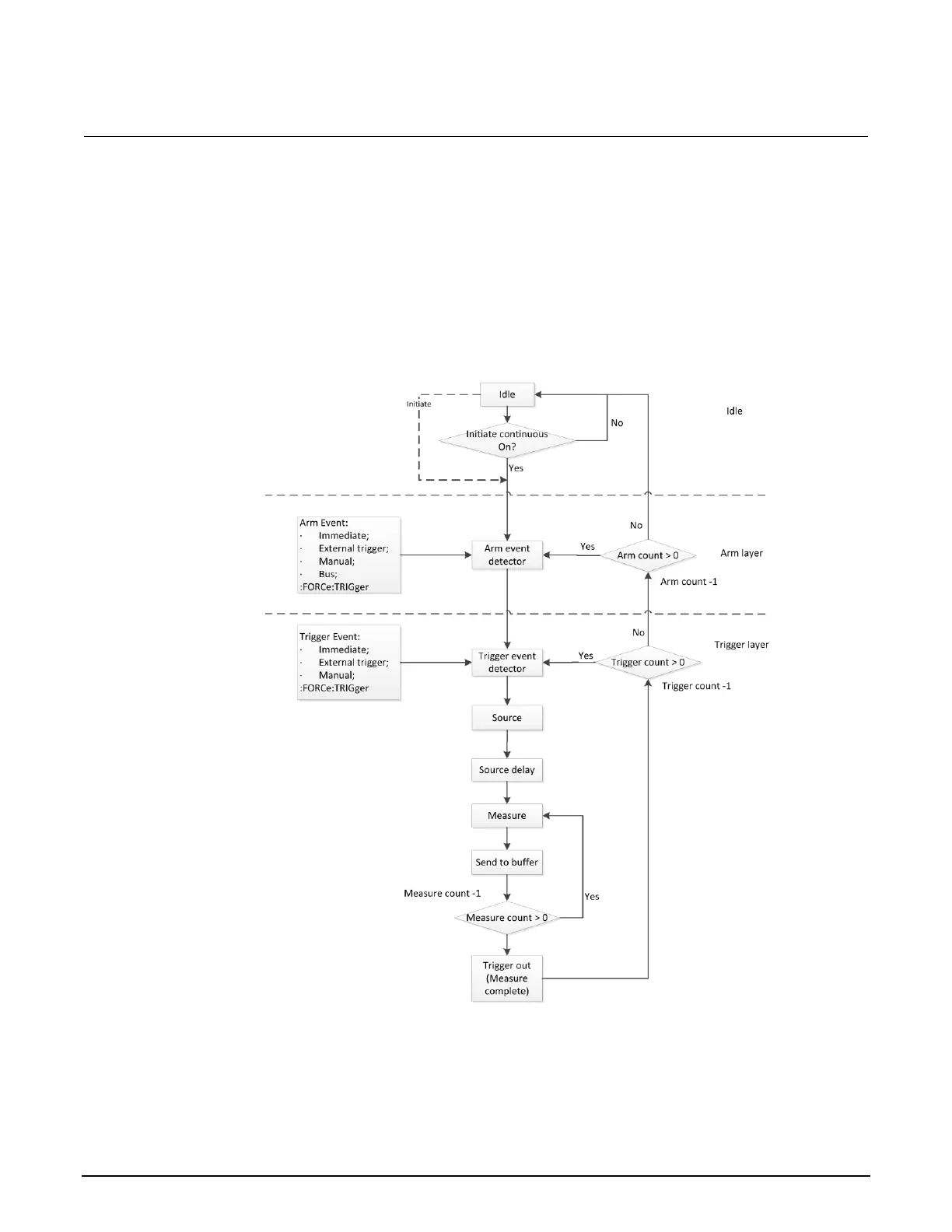

Figure 65: Trigger model
