Section 5: Application examples Series 2280 Precision DC Power Supply Reference Manual
5-6 077085503 / March 2019
To delete a row on the front panel:
1. Highlight the Points cell of the row you want to delete.
2. Press ENTER to select the cell row.
3. Navigate to Delete.
4. Press ENTER.
Execute a 10-step linear list sweep
To execute a list sweep on the front panel:
1. Press the MENU key.
2. Under Trigger, highlight the Configure icon using either the navigation control or the soft keys.
Press ENTER.
3. Select the button next to Sample Count and press the ENTER key.
4. Set the sample count to 10.
5. Press the HOME key.
6. Press the Next soft key twice to navigate to the third home screen.
7. Press the List soft key. The List dialog box is displayed.
8. If the Number soft key is not showing a 1, press the Number soft key and enter the value, 1.
9. Press the Enable soft key to run list 1.
To view the measurements on the front panel:
1. Press the Exit key to close the List dialog box.
2. Press the View soft key under Graph to view a plot of the measurements.

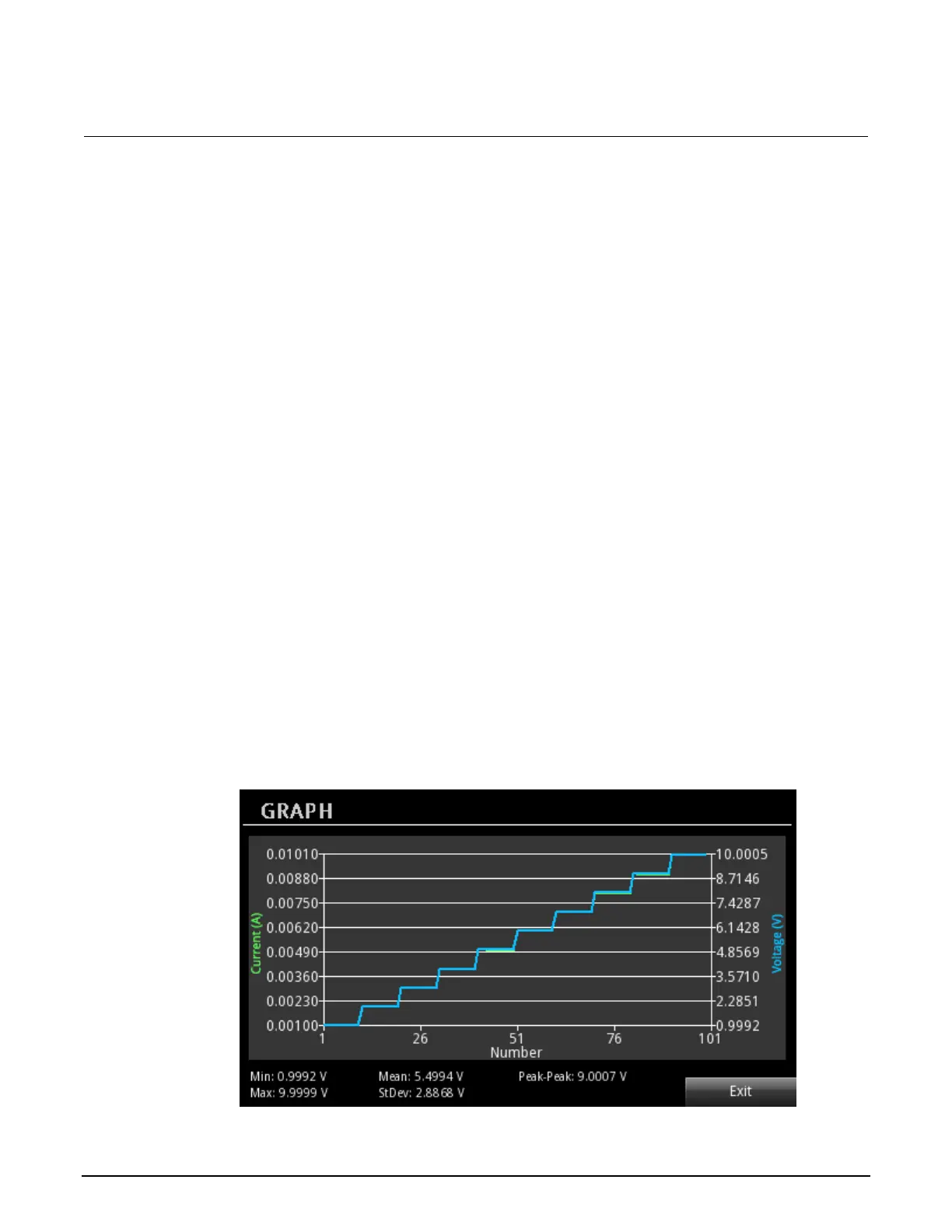

Figure 87: Graph view of 10-step linear list sweep
