Keysight N9010A EXA Service Guide 429
Replaceable Parts
Hardware

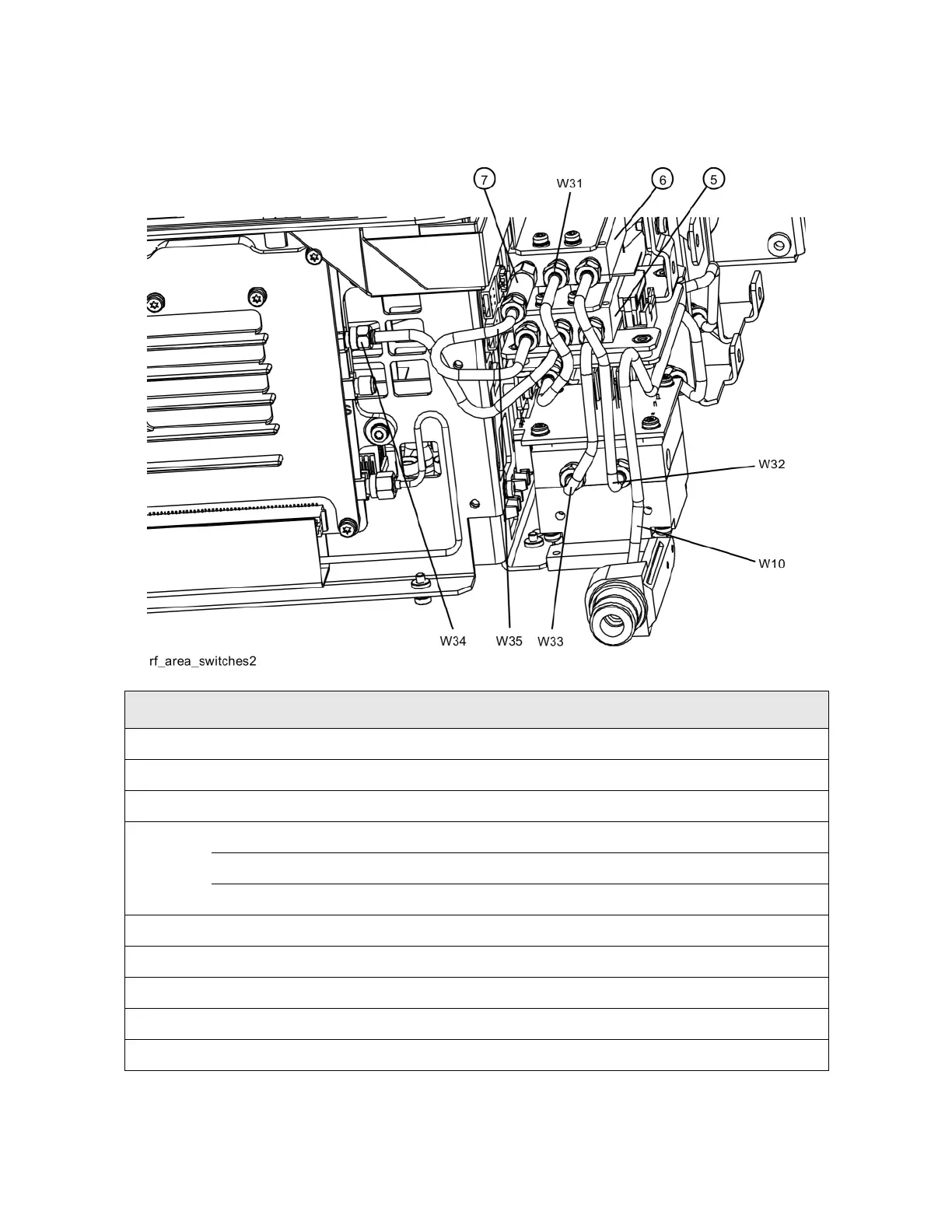

Figure 14-13 RF Area - Options B40, MPB, or DP2 (switch detail)
Item Description Keysight Part Number
5SW1 Coaxial Switch (Options B40, MPB, or DP2) N1810-60069
6SW2 Coaxial Switch (Options B40, MPB, or DP2) N1810-60069
7 AT1 Fixed Attenuator, 6 dB 08493-60026
W10 Cable Assembly, J1 to A9 Input (Semi Rigid)
Serial number < MY/SG50510001, Option 503, 507, 513, 526 E4410-20156
Serial number ≥ MY/SG50510001, Option 503, 507, 513, 526 N9020-20141
W31 Cable Assembly, SW2 Center Port to A11J3 (Semi-rigid) E4410-20161
W32 Cable Assembly, SW2 Port 2 to A12J2 (Semi-rigid) E4410-20163
W33 Cable Assembly, SW1 Port 2 to A12J1 (Semi-rigid) E4410-20165
W34 Cable Assembly, SW1 Center Port to A13J9 (Semi-rigid) E4410-20164
W35 Cable Assembly, AT1 to SW1 Port 1 (Semi-rigid) E4410-20178
