428 Keysight N9010A EXA Service Guide
Replaceable Parts
Hardware

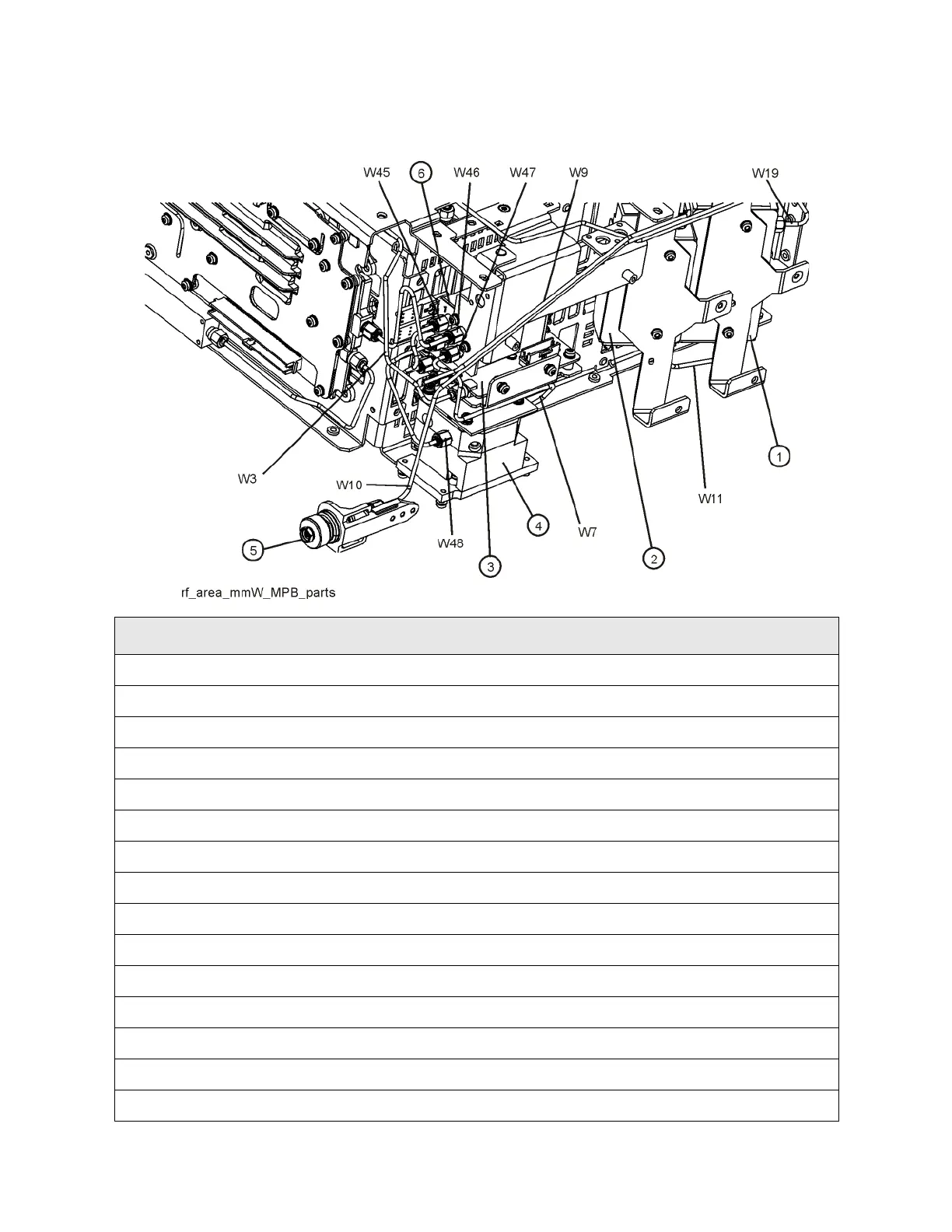

Figure 14-12 RF Area - Option 532, 544 with Option B40, MPB, or DP2
Item Description Keysight Part Number
1 A9 RF Attenuator A 0 to 10 dB (Options 532, 544) 33326-60013
2 A10 RF Attenuator B 0 to 60 dB (Options 532, 544) 33325-60020
3 A11 Low Band Switch Assembly N9020-60051
4 A12 YTF Preselector (except Option 503) 5087-7383
5 J1 2.4 m Input Connector Assembly (Option 532, 544) N9030-60011
W3 Cable Assembly, A11J2 to A13J2 (Semi Rigid) N9020-20131
W7 Cable Assembly, A12 Output to A13J9 (Semi Rigid) N9010-20006
W9 Cable Assembly, A10 Output to A11J1 (Semi Rigid) N9010-20004
W10 Cable Assembly, J1 to A9 Input (Semi Rigid) N9020-20133
W11 Cable Assembly, A9 Output to A10 Input (Semi Rigid) N9010-20002
W19 Cable Assembly, A16J701 to A9 Cal Signal Input/Port 2 (Semi Rigid) Refer to Table 14-1
W45 Cable Assembly, A11J3 to SW4 Port 1 (Semi Rigid) N9010-20009
W46 Cable Assembly, SW4 Port 2 to A13J9 (Semi Rigid)) N9020-20130
W47 Cable Assembly, SW4 Port 3 to A12 Output (Semi Rigid)) N9020-20129
W48 Cable Assembly, SW4 Port 4 to A12 Input (Semi Rigid)) N9020-20128
