LIMIT TABLE SETUP Page
4-

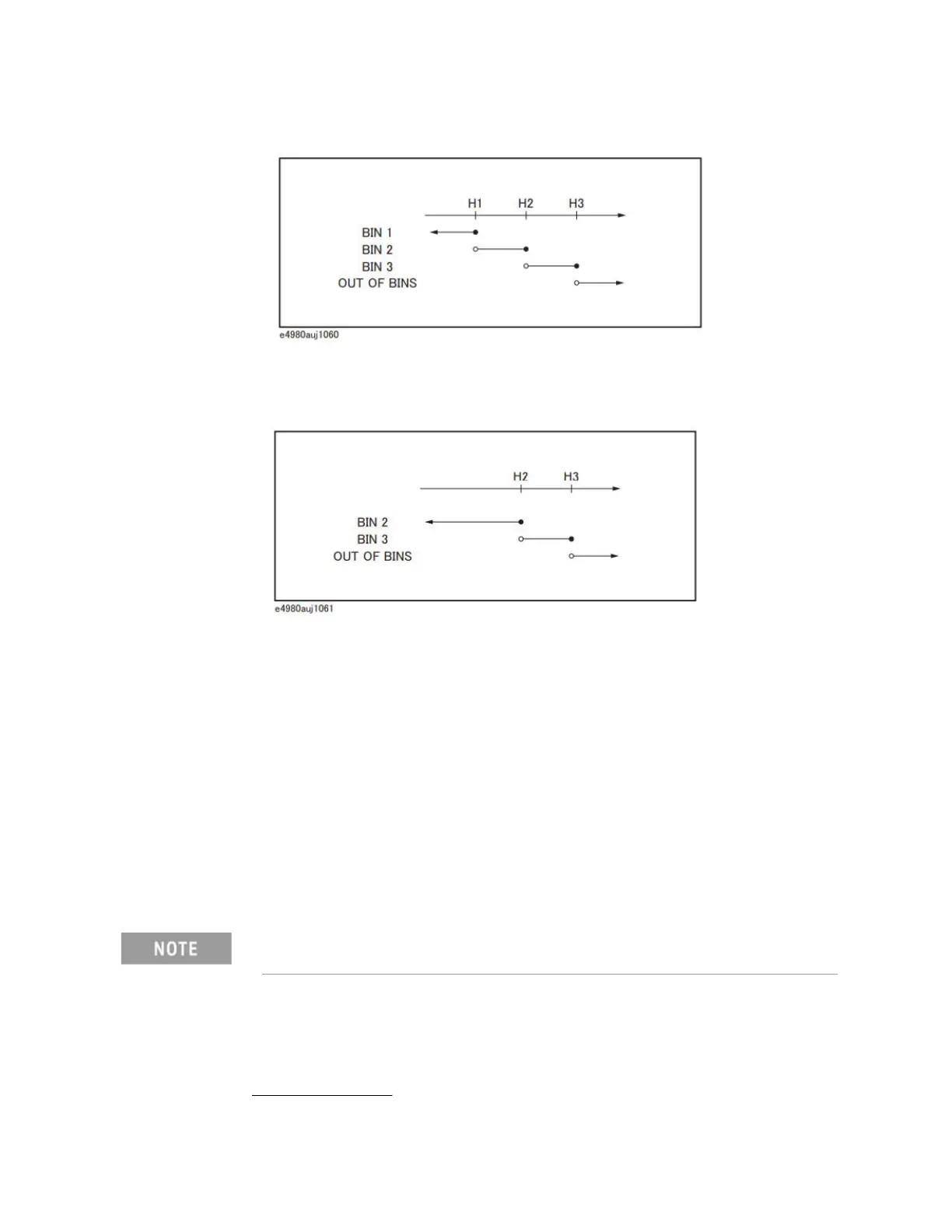

Bin 3: upper limit (H3)
• Bin 2: upper limit (H2)
Bin 3: upper limit (H3)
To configure the limit values for tolerance mode:
Step 1. Press [Meas Setup].
Step 2. Press the LIMIT TABLE softkey.
Step 3. Using the cursor keys, select the BIN 1 LOW field.
Step 4. Enter the limit value using the entry keys. When you have entered the value,
the softkey labels change to unit labels (n, u, m, x1, k).
1
If you want to clear your selected limit value, press the CLEAR softkey; also,
you can clear all of the limit values for your selected bin by pressing the
CLEAR LINE softkey.
Step 5. Repeat
Step 4 using the cursor keys until you have entered the limit values
for bin 9.
1. If the primary parameter of the measurement function is C, the softkey labels show these units: p, n, u, m, x1.
You can enter the lower and upper limit values using the HIGHx(-1) or
LOWx(-1) softkey.
