Keysight E4980A/AL User’s Guide -479
Handler Interface
Electrical Characteristics
-
Figure E-6 shows the output circuit configuration for the test result output
signals, and
Figure E-7 shows that for the control output signals.

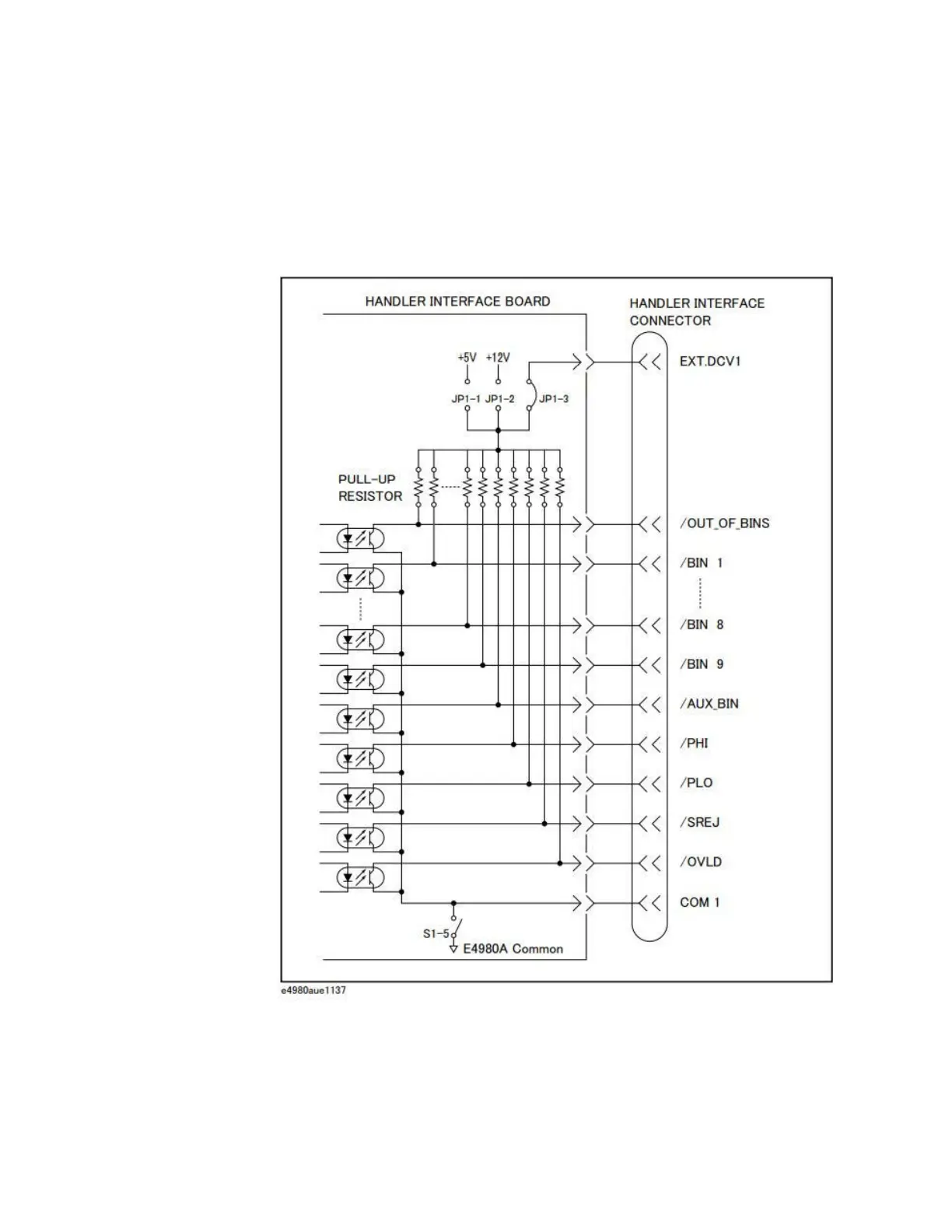

Figure E-6 Output circuit configuration for the test result output signals
2.
+5 V or +12 V when internal power supply is used.
+5 V to +24 V (EXT.DCV2) when external power supply is used.
