Keysight E4980A/AL Precision LCR Meter 89
Configuring Measurement Conditions (Display and Function Related Settings)
MEAS SETUP page
4-
• DC bias (BIAS field)
• Measurement signal level (LEVEL field)
• Measurement time mode (MEAS TIME field)
For more information on the fields listed above, refer to the description in
Chapter 3 “Display Format”
The following sections gives descriptions on the
fields that are only accessible through the MEAS SETUP.
Figure 4-1 shows the fields available on this page along with the softkeys
corresponding to them.

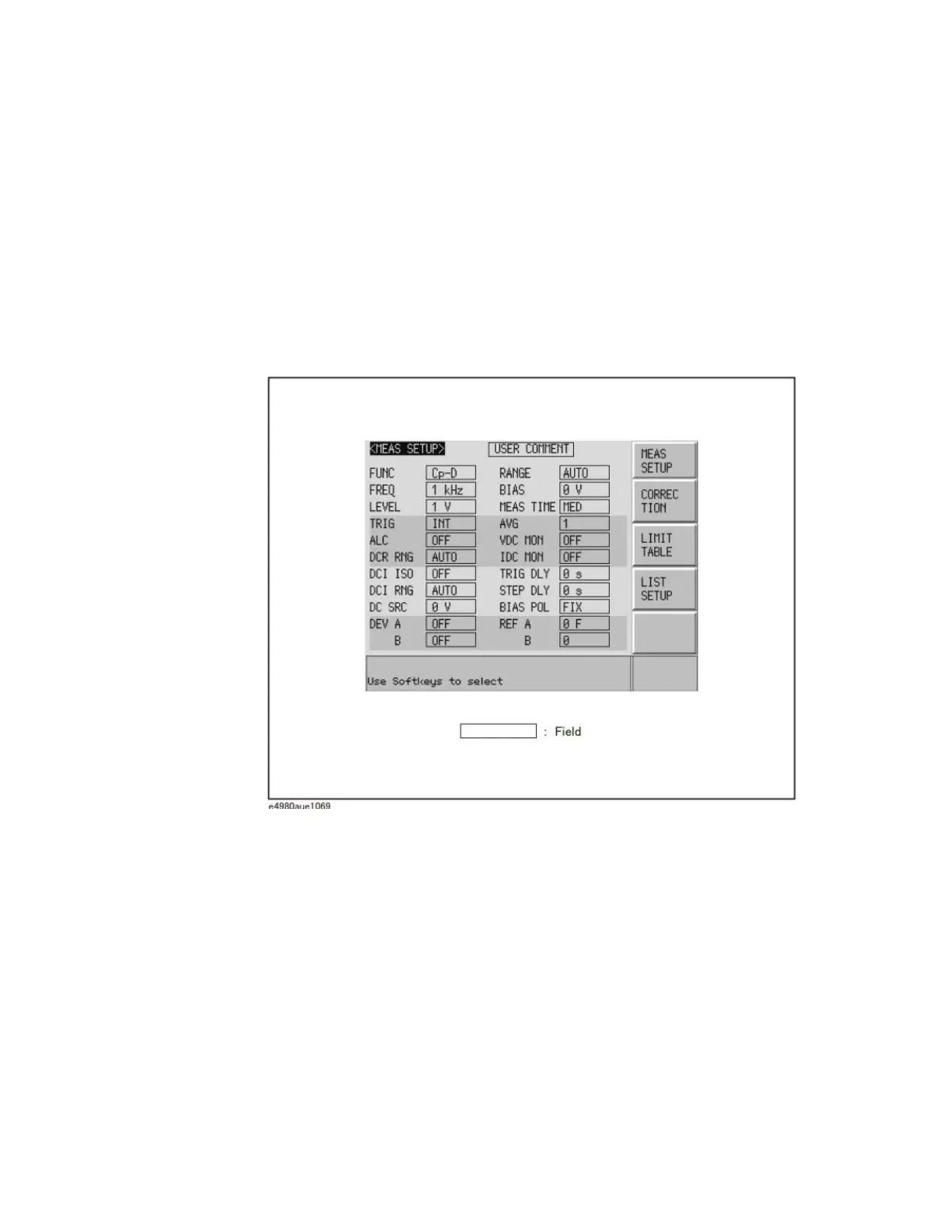

Figure 4-1 MEAS SETUP page
