Digital Channels 7
Keysight InfiniiVision HD3-Series Oscilloscopes User's Guide 111

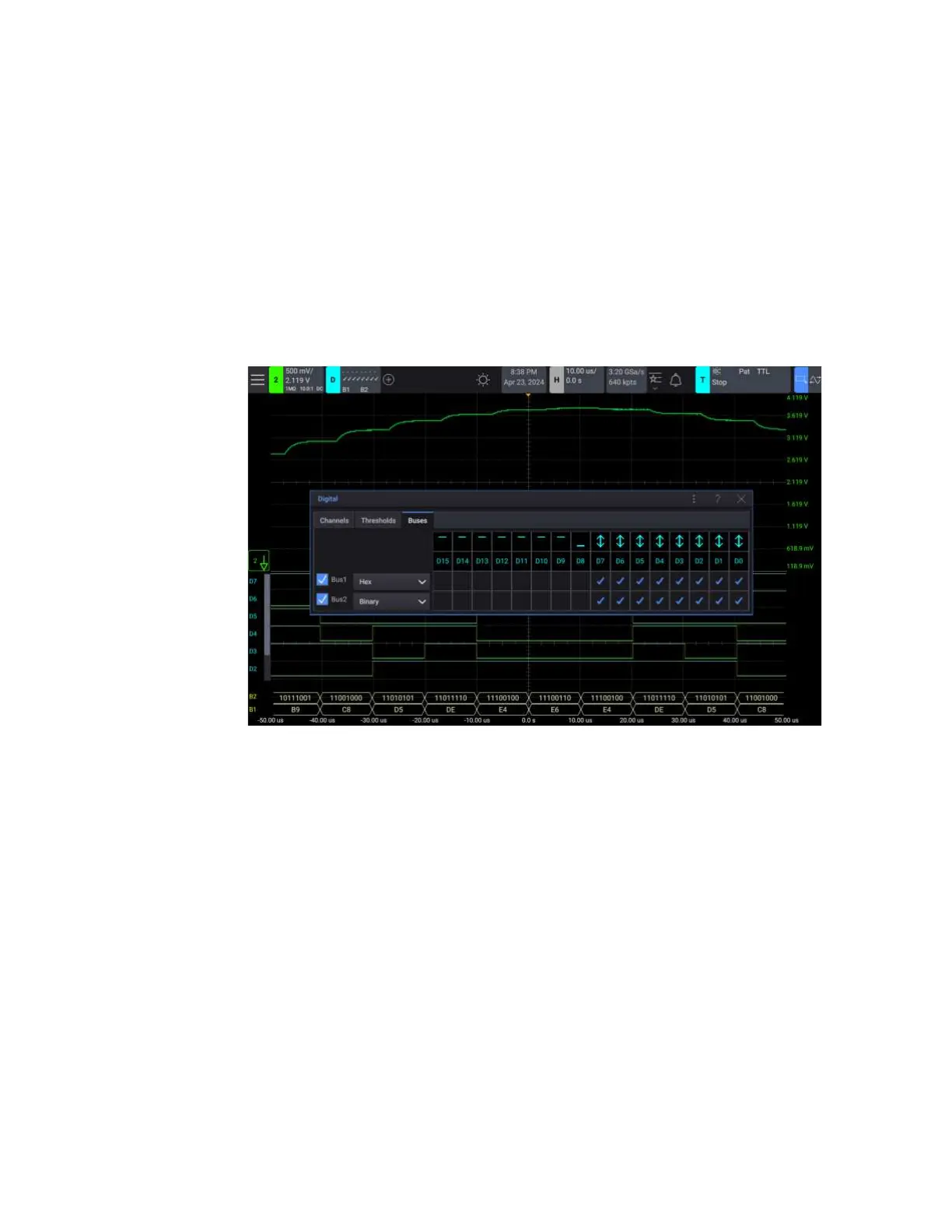

To configure and display each bus:
1 Open the Digital dialog box by selecting the digital channels badge or by
choosing Sources > Digital Channels....
2 In the Buses tab, select Bus1 or Bus2 to enable or disable the bus display.
3 In the drop-down list for a bus, select the Hex or Binary display format.
4 Select the channels in a bus by selecting or swiping cells.
The buses are shown at the bottom of the display.
If the bus display is blank, completely white, or if the display includes "...", you
need to expand the horizontal scale to allow space for the data to be shown, or
you can use the markers to display the values (see
"Using markers to read bus
values" on page 111).
Using markers to
read bus values
To read the digital bus value at any point using the markers:
1 Choose Measure > Markers... from the main menu.
2 In the Markers dialog box, select On to enable markers.
3 From the Mode drop-down list, select Binary or Hex.
4 From the Source drop-down list, select Bus1 or Bus2.
5 Position the X1 and X2 markers to where you want to read the bus values (see
"To make marker measurements" on page 178).
