278 Keysight InfiniiVision HD3-Series Oscilloscopes User's Guide
22 Utility Settings
• Select Copy File(s)... to opens the "Copy File(s) to" dialog box where you can
select the destination folder for file(s) selected in the bottom portion of the
dialog box.
4 To properly unmount a USB storage device before removal, select Eject.
If you remove the device without selecting Eject first, the device will be marked
as needing repair when connecting to a computer with the Windows operating
system (even though there are no harmful effects to the device).
Use your PC to create directories on a USB storage device.
See Also •
Chapter 21, “Save/Email/Recall (Setups, Screens, Data),” starting on page 261
• "USB Storage Devices" on page 278
USB Storage Devices
Most USB mass storage devices are compatible with the oscilloscope. However,
certain devices may be incompatible, and may not be able to be read or written to.
USB storage devices must be formatted with the FAT/FAT16, FAT32, NTFS, EXT2,
EXT3, or EXT4 file system format. The exFAT format is not supported. Any given
storage device may not support all of these formats.
You must "eject" a USB mass storage device before unplugging it; otherwise, the
device will be marked as needing repair when connecting to a computer with the
Windows operating system (even though there are no harmful effects to the
device).
Do not connect USB storage devices that identify themselves as hardware type
"CD" because these devices are not compatible with the InfiniiVision HD3-Series
oscilloscopes.

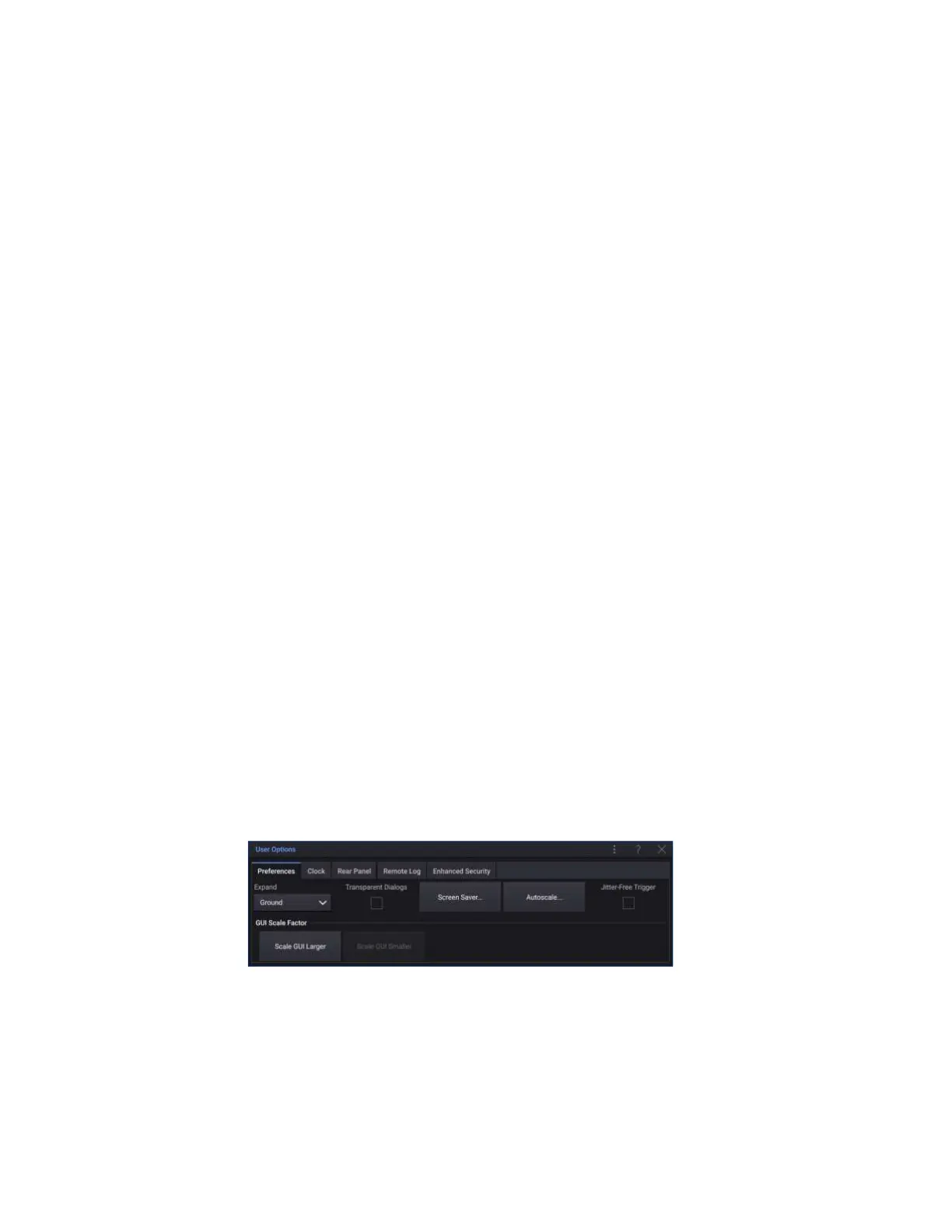

Setting Oscilloscope Preferences
The Preferences tab of the User Options dialog box (opened by choosing Utility >
User Options... from the main menu) lets you specify oscilloscope preferences:
•
"To choose "expand about" center or ground" on page 279
•
"To disable/enable transparent backgrounds" on page 279
•
"To set up the screen saver" on page 279
