Triggers 10
Keysight InfiniiVision HD3-Series Oscilloscopes User's Guide 145
1 Open the Trigger dialog box by selecting the trigger badge or by choosing
Trigger > Setup... from the main menu.
2 In the Trigger Type drop-down list, select Rise/Fall Time.
3 Select the Source analog channel on which to look for edges.
4 From the Slope drop-down list, select whether to look for a Rising or Falling
edge.
5 From the Qualifier drop-down list, select:
• < — When looking for an edge that is less than a time value.
• > — When looking for an edge that is greater than a time value.
6 Select the Time field and enter the "less than" or "greater than" time value.
7 From the Level Select drop-down list, select which level, High or Low, the Trigger
Level knob will adjust.
You can also push the Trigger Level knob to toggle between High and Low
selection.
8 In addition to turning the Trigger Level knob to specify high and low levels, you
can also:
• Select the Trigger Level: Low field and enter the low level value.
• Select the Trigger Level: High field and enter the high level value.

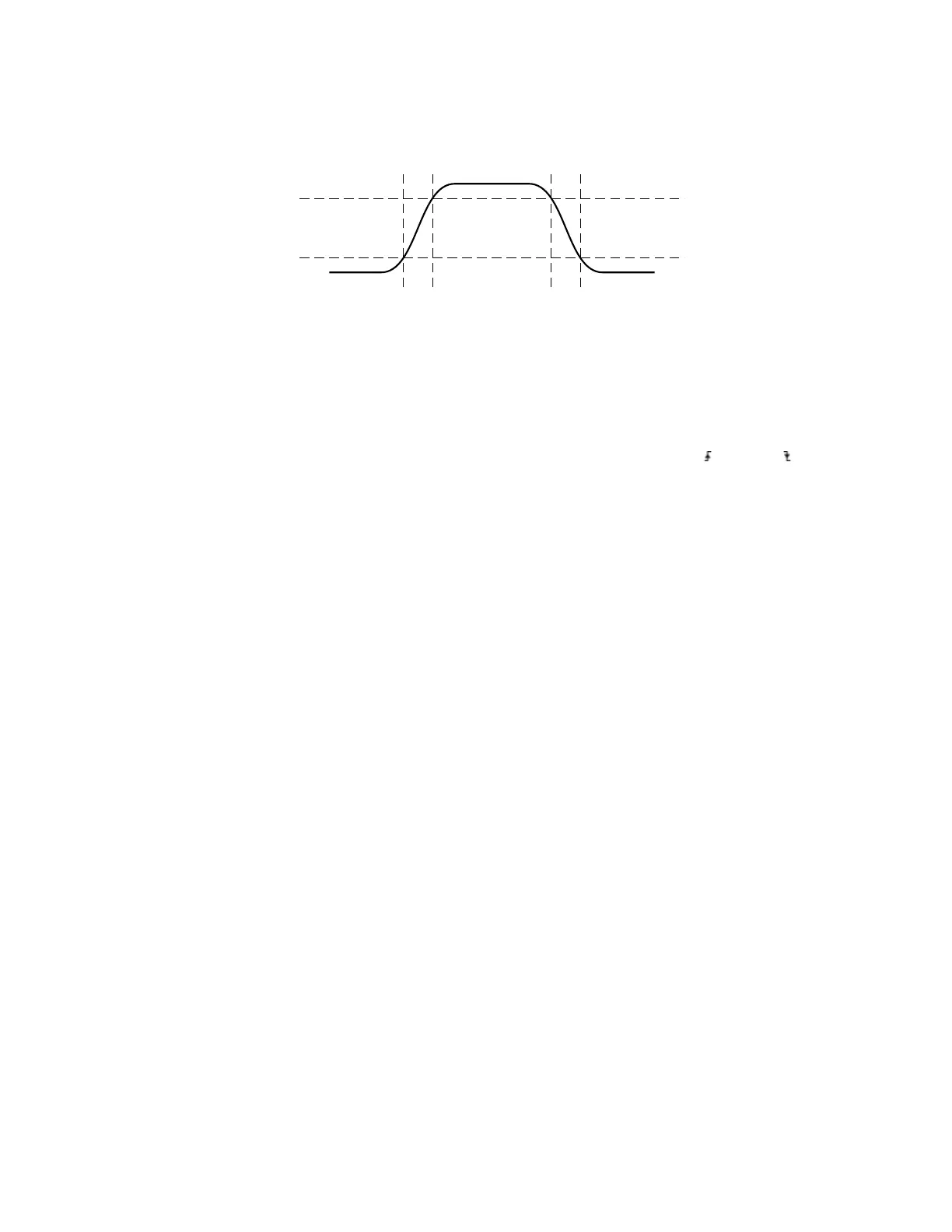

High level
Low level
Rising edge time Falling edge time
