182 Keysight InfiniiVision HD3-Series Oscilloscopes User's Guide

13 Markers

Expand the display with Zoom mode, then characterize the event of interest with

the markers.

Put the X1 marker on one side of a pulse and the X2 marker on the other side of the

pulse.

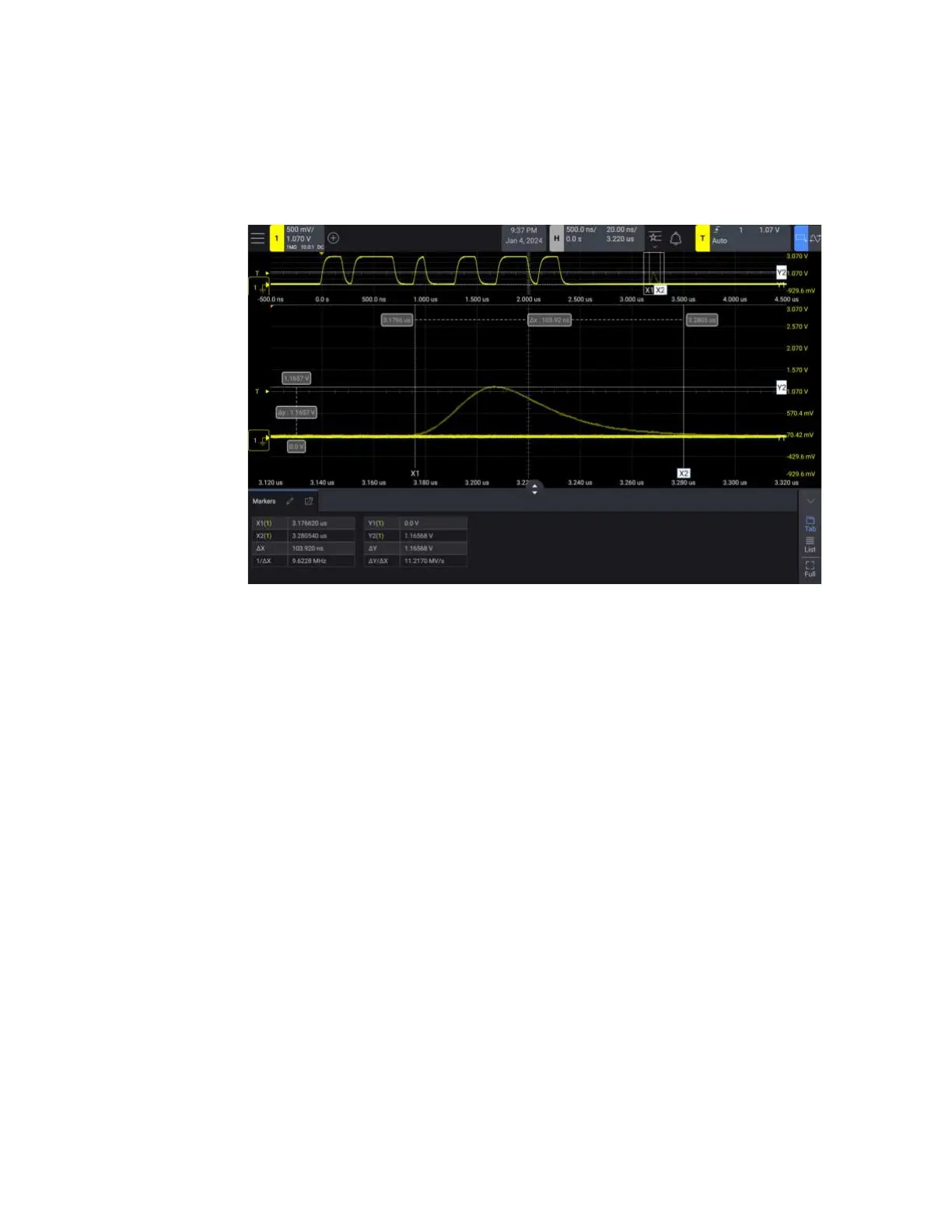

Figure 35 Markers track Zoom window
