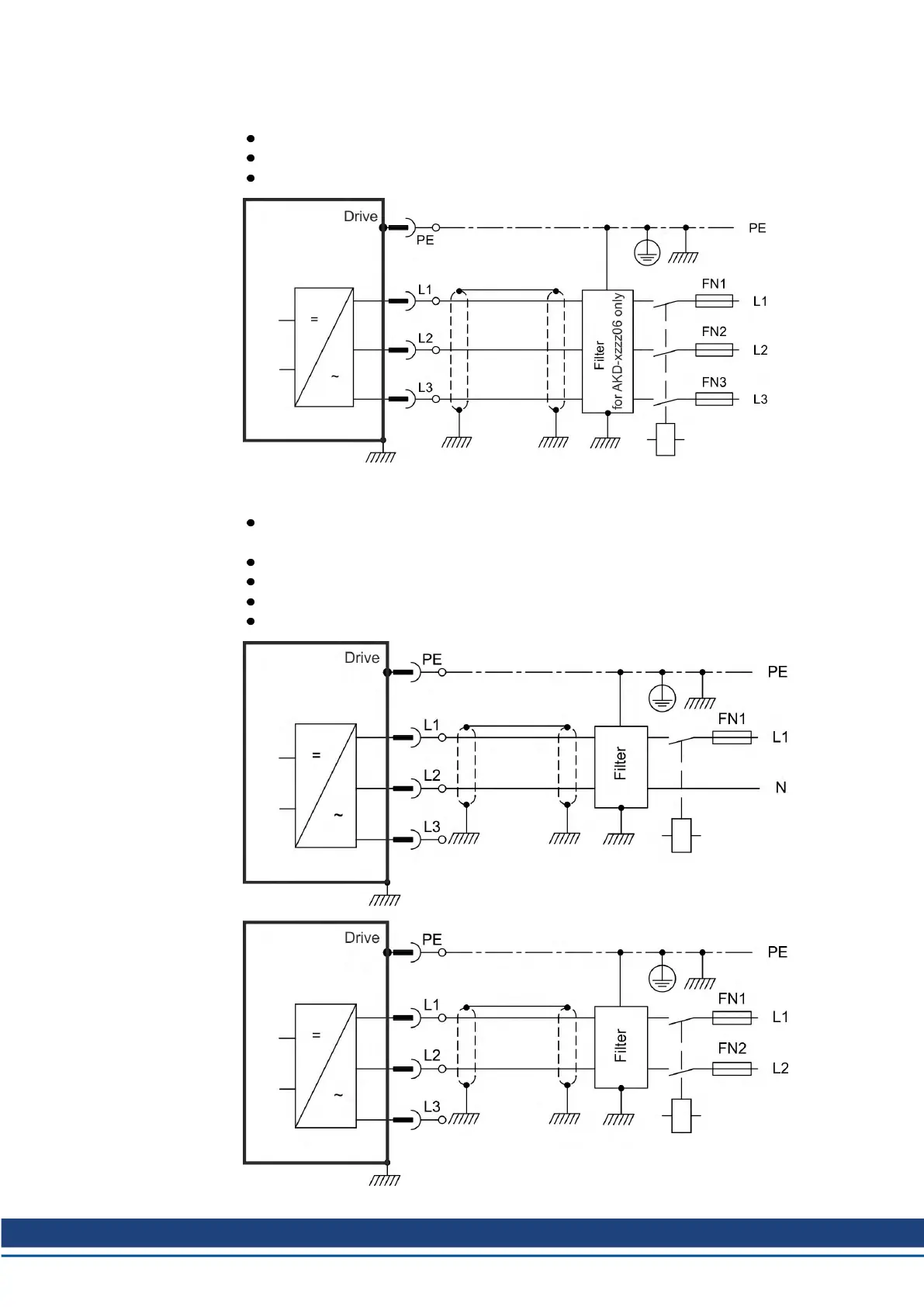

9.8.4.1 Three phase connection (all AKD types)
Directly to 3-phase supply network, supply networks (➜ # 103)
Filtering for AKD-xzzz06 to be provided by the user.
Fusing (such as fusible cut-outs) to be provided by the user (➜ # 40).
9.8.4.2 Single/Dual phase connection (AKD-x00306 to AKD-x01206 only)
Directly to single-phase supply network (120 V
-10%
to 240 V
+10%
) with neutral line or
Directly to two-phase supply network (120 V
-10%
to 240 V
+10%
) without neutral line
Supply networks(➜ # 103)
Leave L3 open circuit
Filtering to be provided by the user.
Fusing (such as fusible cut-outs) to be provided by the user (➜ # 40)
