9.13.6 Master-Slave control
Several AKD can be connected as slave drives to an AKD master. The slave drives use the
master's encoder output signals as command input and follow these commands (velocity
and direction).

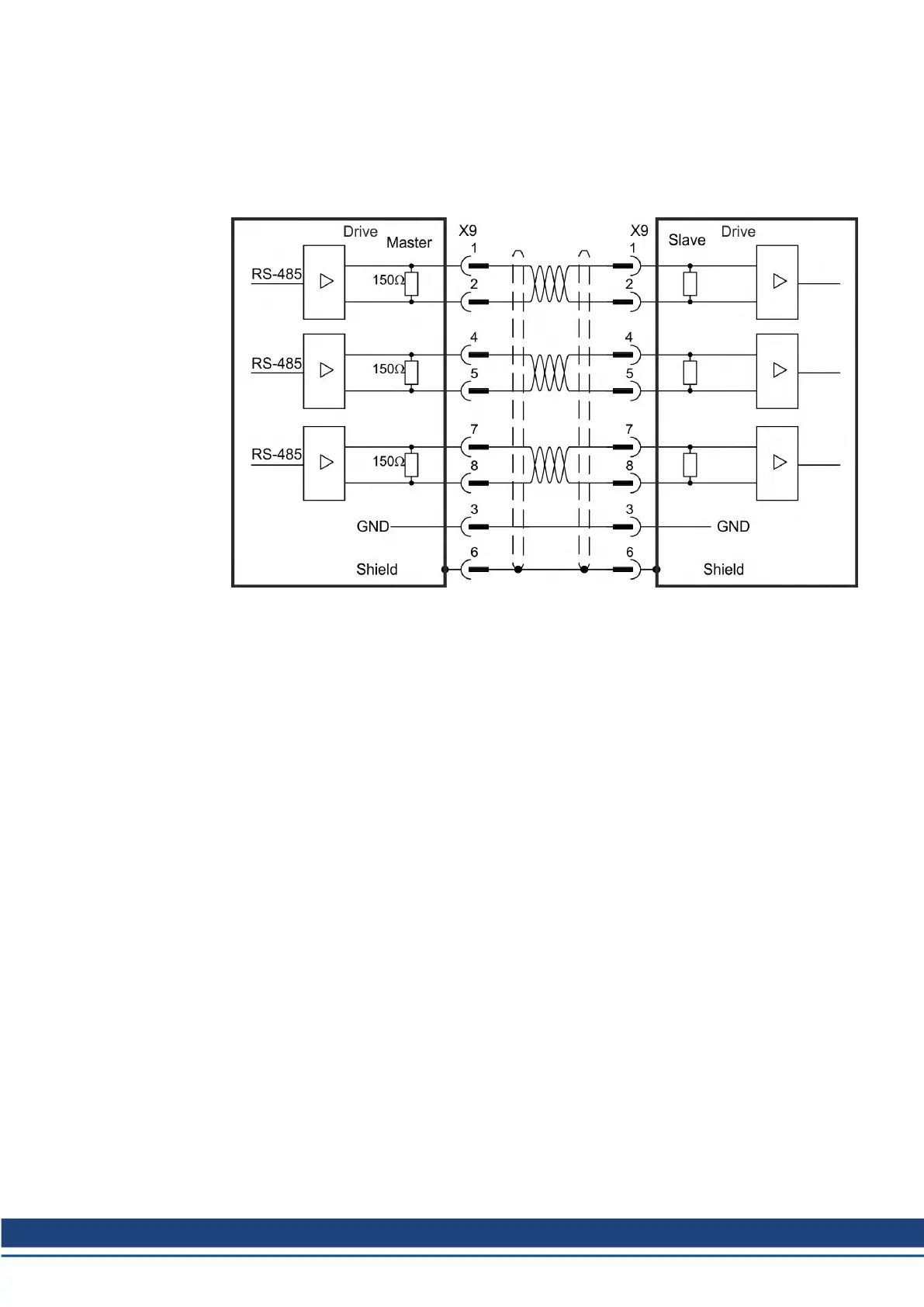

Master-Slave Connection Diagram, example for 5V signal level (X9)
