AKD Installation | 10 Setup
10.4 Fault and Warning Messages
10.4.1 Fault and warning messages AKD
When a fault occurs, the drive fault relay is opened, the output stage is switched off (motor
loses all torque), or the load is dynamically braked. The specific drive behavior depends on

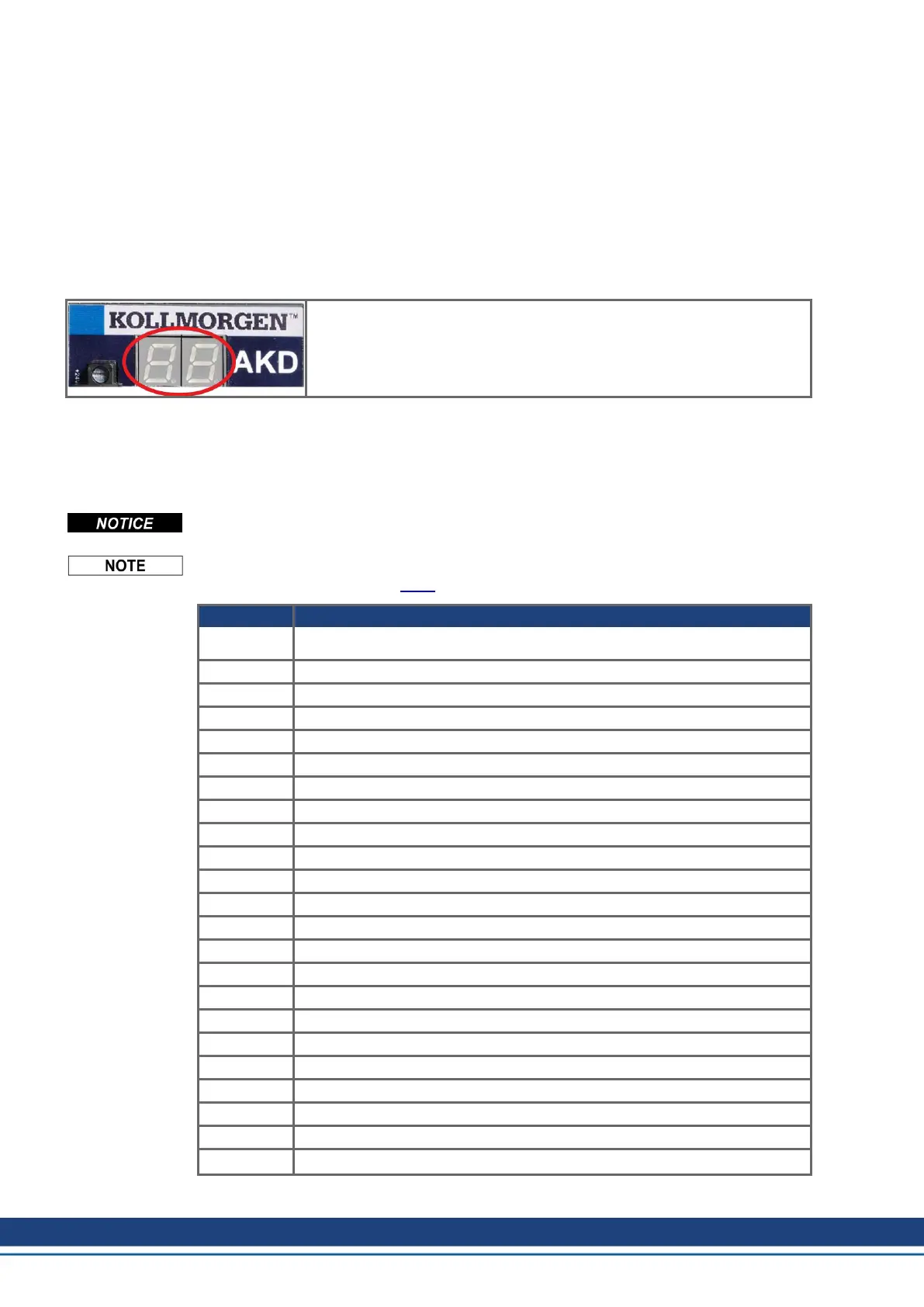

the type of fault. The LED display on the front panel of the drive shows the number of the fault
that occurred. If a warning is issued prior to the fault, the warning is shown on the LED and
has the same number as the associated fault. Warnings do not trip the power stage of the
drive or fault relay output.
AKD fault codes or warning codes are displayed constantly if present. Fault
messages are coded with "F", warnings are coded with "n".
With built-in I/O option card, SD card operation errors are displayed with "E" fol-
lowed by 4 digits.
The left side of the LED displays F (or E) for a fault or n for a warning. The right side displays
the fault or warning number as follows: 1-0-1-[break]. The highest priority fault is displayed.
Multiple faults may be present when a fault condition is occurring. Check the AKD
WorkBench Fault Screen or read the status of DRV.FAULTS through the controller or HMI
for the entire list of faults.
Eliminate errors and faults in compliance with work safety rules. Troubleshooting only by
qualified and trained staff.
More information about fault messages, remedy and clearing faults can be found in the
WorkBench online help and in KDN.
Code Message/Warning
..
24V power (X1) overload or 5V (X9) shorted
F0 Reserved.
F101, n101 Firmware incompatible. The FPGA is a laboratory FPGA.
F102, n102 Resident firmware failed. Operational FPGA is not a default FPGA.
F103 Resident FPGA failed.
F104 Operational FPGA failed.
F105 Non-volatile memory stamp invalid.
F106 Non-volatile memory data.
n107 Positive limit switch triggered.
n108 Negative limit switch triggered.
F120 Failed to default parameters.
F121 Homing error.
F123, n123 Invalid motion task.
F124 Cogging Compensation non volatile memory data error (CRC).
F125, n125 Fieldbus synchronization frames lost.
F126, n126 Bode plot: too much movement.
F127 Incomplete emergency procedure.
F128 MPOLES/FPOLES not integer.
F129 Fieldbus Heartbeat lost.
F130 Secondary feedback supply over current.
F131 Secondary feedback A/B line break.
F132 Secondary feedback Z line break.
F133 Fault number changed to F138.
202 Kollmorgen | kdn.kollmorgen.com | October 2017
