Kollmorgen AKD series Installation Manual

AKD Installation | 9 Electrical Installation
9.13.5 Emulated Encoder Output (EEO)
The drive calculates the motor shaft position from the cyclic- absolute signals of the primary
feedback, generating incremental-encoder compatible pulses from this information. Pulse out-
puts on the SubD connector X9 are 3 signals, A, B and Index, with 90° phase difference (i.e.
in quadrature, hence the alternative term “A quad B” output), with a zero pulse.
The resolution (before multiplication) can be set by the DRV.EMUERES parameter. Use the
DRV.EMUEZOFFSET parameter to adjust + save the zero pulse position within one mech-
anical turn. The drivers operate from an internal supply voltage.
tv max. 30ns

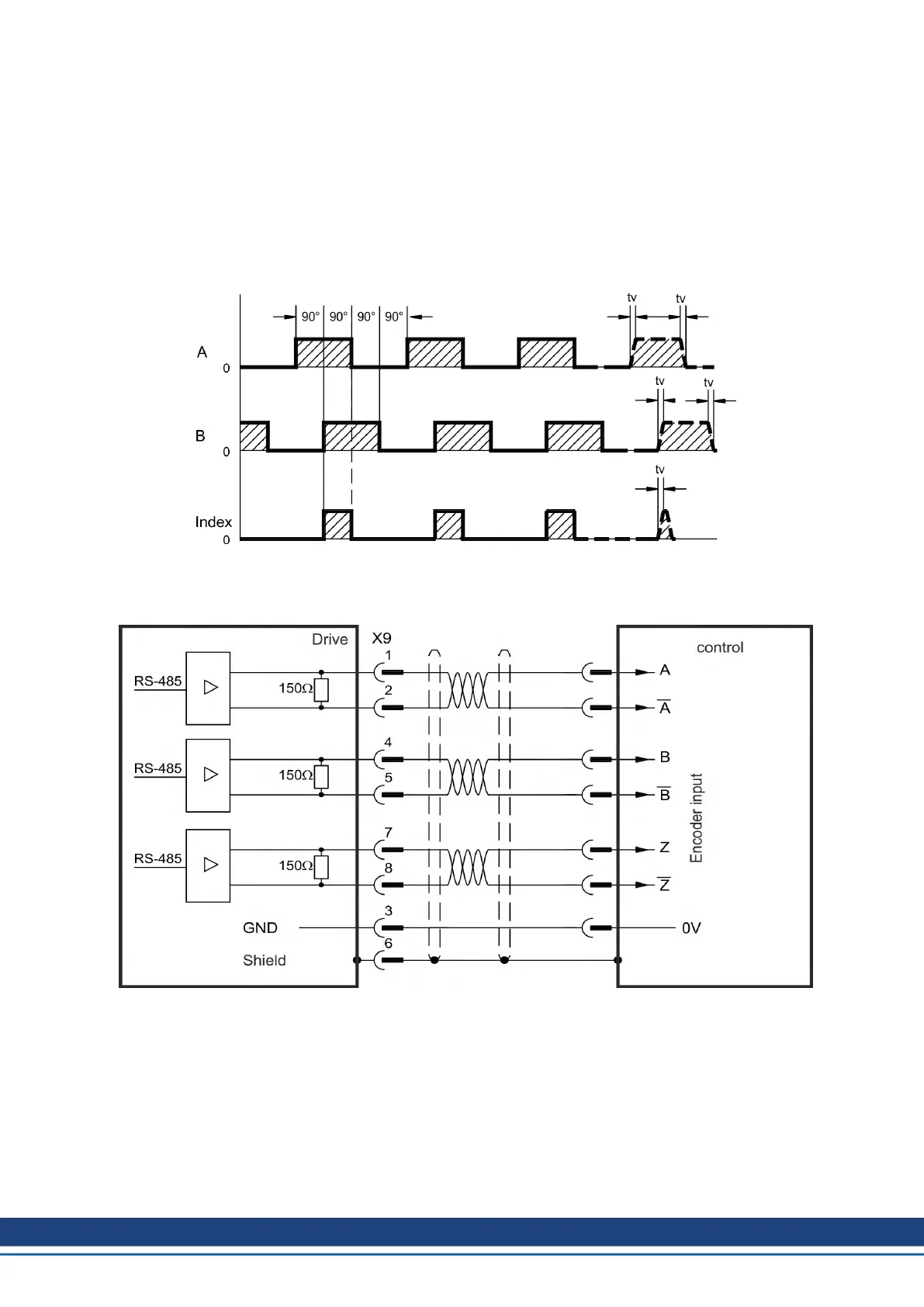

Connection Diagram
144 Kollmorgen | kdn.kollmorgen.com | October 2017

Kollmorgen AKD series Specifications

General

Continuous Current	Up to 180 A
Control Modes	Position, Velocity, Torque
Communication Interfaces	EtherCAT, CANopen, Modbus TCP/IP
Feedback Options	Resolver, Encoder
Safety Features	Safe Torque Off (STO), Safe Stop 1 (SS1)
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Overtemperature
Switching Frequency	8 kHz, 16 kHz
Ambient Temperature	0°C to 40°C
Operating Temperature	0 - 40 °C (derating may apply)
Humidity	5% to 95% non-condensing
