9.12.11 Sine Encoder with Hiperface

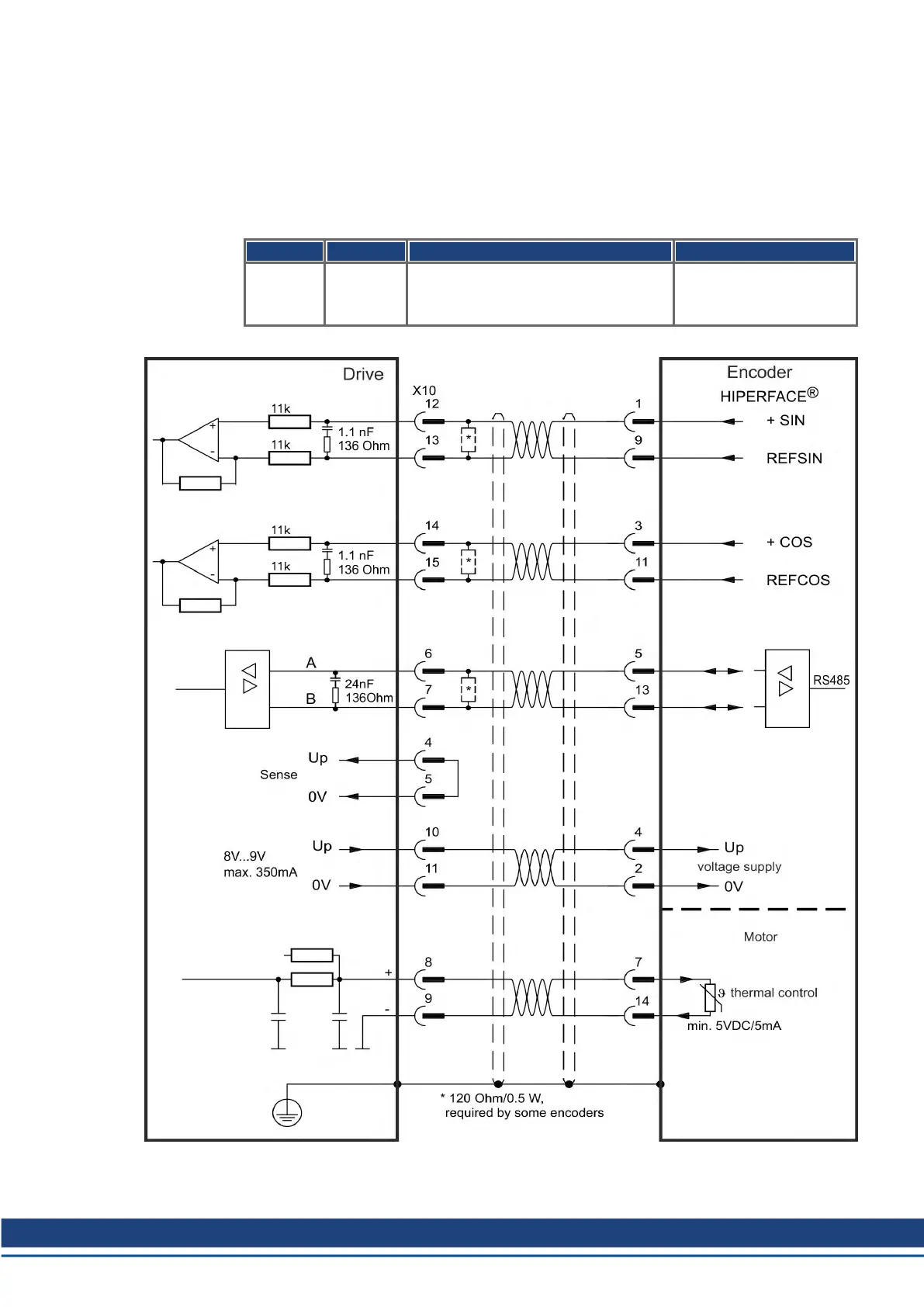

The diagram below shows the wiring of a single-turn or multi-turn sine-cosine encoder with
Hiperface interface as a feedback system.
The thermal control in the motor is connected via the encoder cable and evaluated in the
drive. All signals are connected using our pre-assembled encoder connection cable.
If cable lengths of more than 50 m are planned, please consult customer support.
Type FBTYPE Frequency Limit Description
Hiperface 33 1 MHz,
250 kHz for encoders that require ter-
mination resistors
Connecting pin 4 and 5
together causes Up to be 8
to 9 V
The pin assignment shown on the encoder end relates to Kollmorgen motors.
AKD Installation | 9 Electrical Installation
Kollmorgen | kdn.kollmorgen.com | October 2017 133
