9.12.14 Hall Sensors
This feedback type only supports operating in Torque mode and Velocity mode.

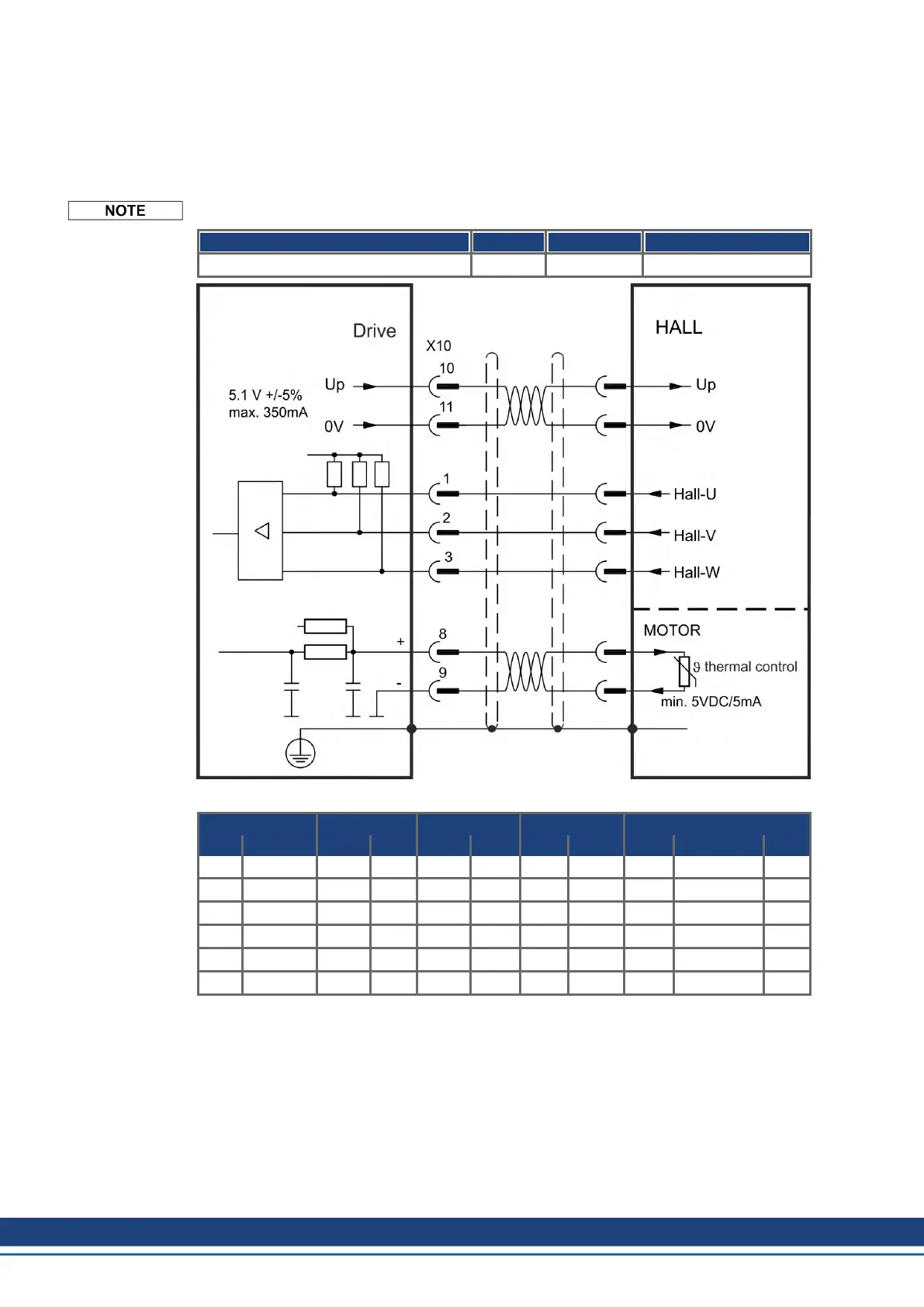

The Hall signals are connected to X10. If cable lengths of more than 25 m are planned, please
consult customer support.
For more information concerning Hall feedback setting refer to WorkBench Online Help.
Type FBTYPE Up Frequency Limit
Hall Only 12 5,1 V +/-5 % 1 MHz
Logic for Kollmorgen motor connection:
AKD KBM(S) TBM(S) VLM(H) IC, ICH, IL, ID
Pin Signal Color Name Color Name Color Name Color Pin Name
X2 /4 U Blue U Red A Red U Red 1 A
X2 /5 V Brown V White B White V White 2 B
X2 /6 W Violet W Black C Black W Black 3 C
X10/1 Hall U Yellow H3 Yellow H-CA Green Hall U Brown SubD9/4 S3
X10/2 Hall V Brown H1 Brown H-AB Brown Hall V Green SubD9/2 S1
X10/3 Hall W Orange H2 Orange H-BC White Hall W Yellow SubD9/3 S2
